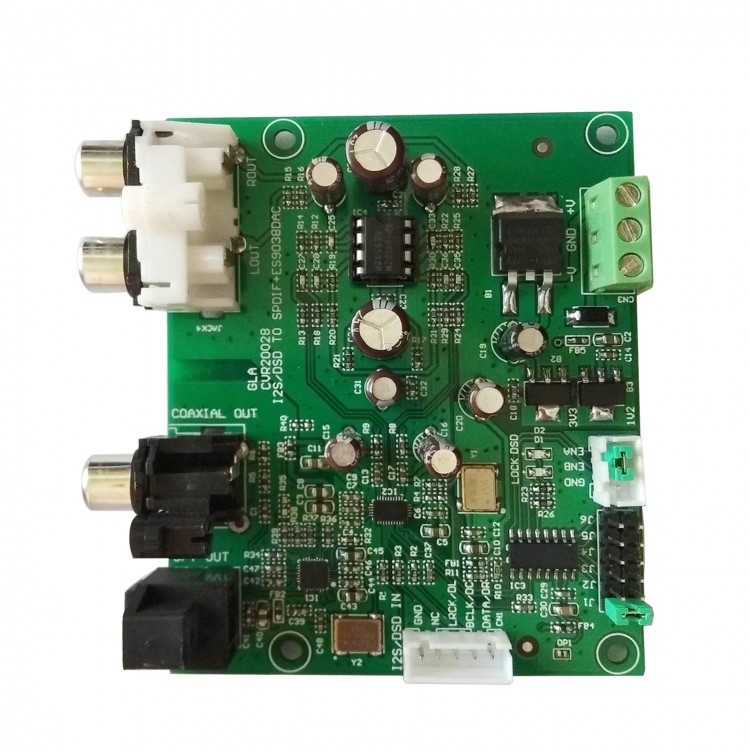

Audio Digital Player With Digital Output Coaxial Optical DAC Output ES9038Q2M For Raspberry Pi
Description:
It is suitable for digital players with I2S digital audio interface or digital turntables or for Raspberry Pi and other digital broadcast upgrade DAC to improve sound quality. With coaxial and optical outputs. DAC adopts ES9038Q2M chip.
I2S Digital Input Interface:
Support input PCM 32k~384k 16~32bit/DSD64, DSD128, DSD256, DSD512
Analog Output:
RCA socket output left and right channels
Digital Coaxial Output:
PCM signal: 32K~192K, 16~14 bits
DSD signal: DOP64, DOP128 (DOP needs decoder support to decode, such as ES9038. Unsupported can be set to PCM output)
Digital Optical Output:
PCM signal: 32K~192K, 16~14 bits
DSD Signal: DOP64 (DOP needs decoder support to decode, such as ES9038. Unsupported can be set to PCM output)
Package Included:
- 1 x Digital Player

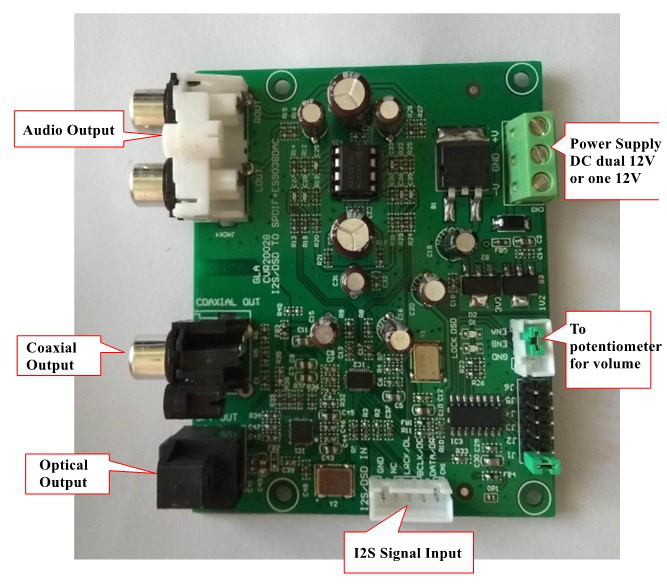

Pin Introduction of I2S Digital Input Interface:
1. GND
2. NC (not used)
3. LRCK/DSD_L
4. BCLK/DCLK
5. DATA/DSD_R
Power Supply Interface:
+V: connect to DC positive 12V
GND: ground
-V: connect to DC negative 12V (single power supply is not required to connect this pin)
