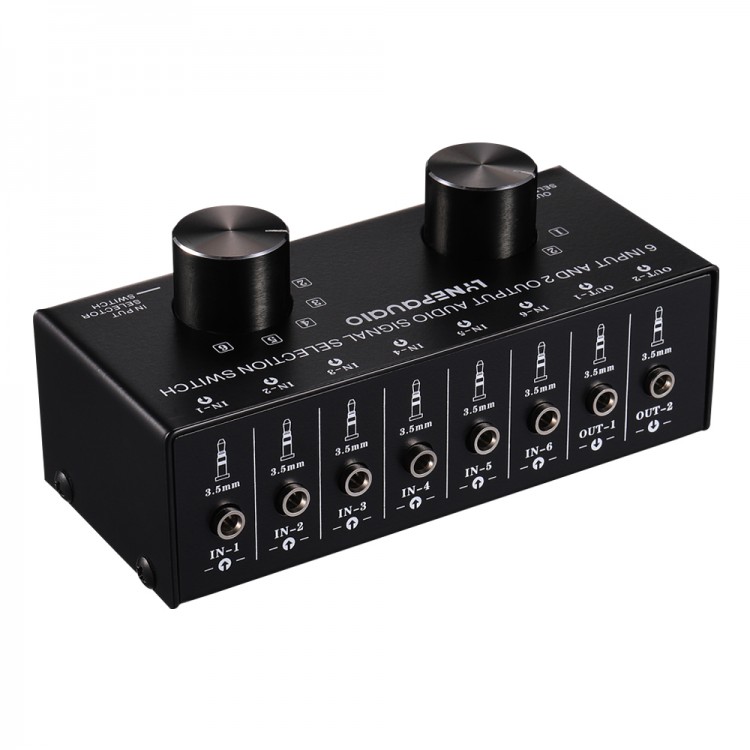

Audio Input Selector Switch Audio Input Signal Selector Support 6 IN 2 OUT & 2 IN 6 OUT 3.5mm Ports
Features:
- Designed with 3.5mm ports
- Bi-Directional: Supports 6-way input with 2-way output and 2-way input with 6-way output
- Stereo audio source manual switch
- Output ports can be connected to power amplifier, active speakers and preamplifier
- Input ports support computer/mobile phones/tablet PC/CD/DVD/set-top box/phonograph/network TV box/player/Bluetooth player
- No power supply needed. Just plug to play
- Low-noise sound quality
- Sturdy metal shell with oxidation treatment
Parameters:
- Material: Metal Shell
- Input & Output Impedance: 10KΩ to 50KΩ
- Frequency Response: 20 to 20KHz
- Distortion: <0.002%
- Insertion Loss: <0.01dB
- Insertion Gain: 0dB
- SNR: >98dB
- Input Ports: Standard 3.5mm Ports
- Output Ports: Standard 3.5mm Ports
- Input Channels: 6-Way Input (Can be connected to the output by reverse connection)
- Output Channel: 2-Way Output (Can be connected to the input by reverse connection)
- Control Switch: 6-Gear and 2-Gear Manual Switch
- Switchable Input Channels: 6-Channel
- Switchable Output Channels: 2-Channel
Package Included:
- 1 x Audio Source Selector
Note: Input and output audio signal cables are not included. Please purchase separately. Thank you!
