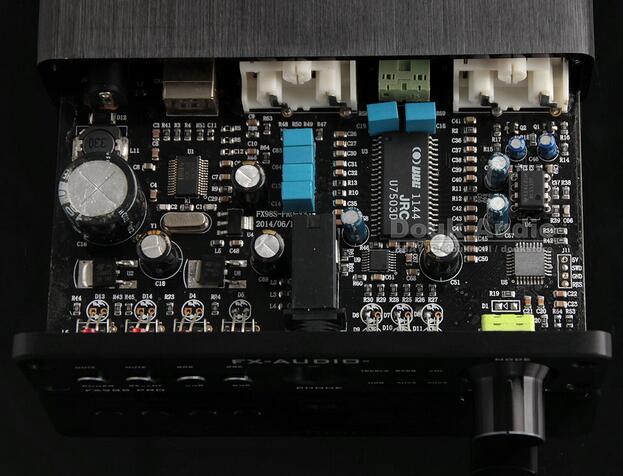

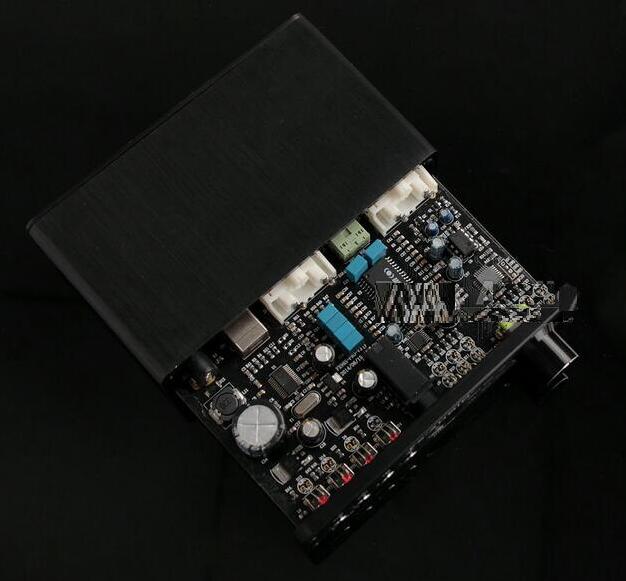

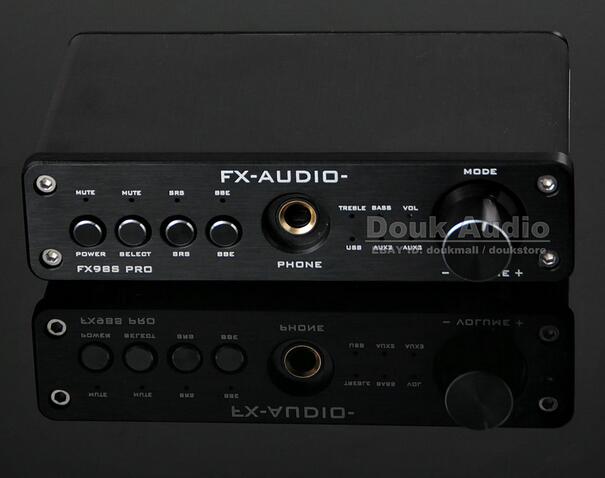

Product Description:FX-98S Sound Effect Processor Pro Uprage Version USB Decode DAC Preamp PCM2704 MAX9722 Amplifier Black
This is an integrated amplifier:
- A high-fidelity MAX9722 Headphone Amplifier
- A high-quality PCM2704 USB sound card
- A high-fidelity BBE sound processor (For HiFi Music)
- A high-fidelity surround processor (For Movie and Game)
- A Multi-function HIFI preamp
- Suit for connect Headset, Active Speaker, Computer, Phone, Amplifier, Pure Power Amp, etc.
Parameters:

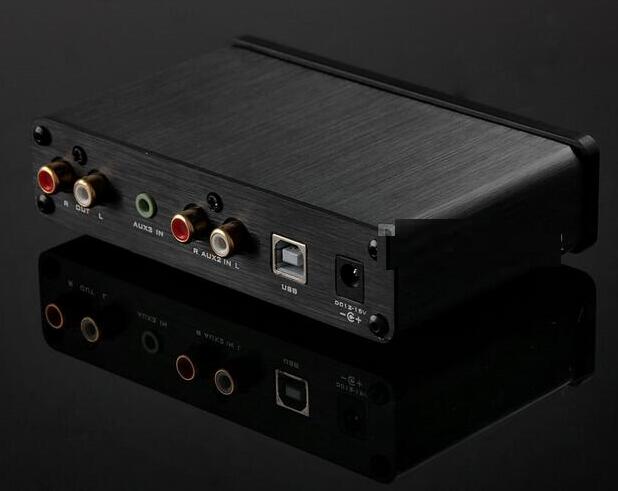

- Input interfaces: USB, TRS/Audio Jack, Stereo L/R RCA
- Output interfaces: Headphone Jack, Stereo L/R RCA
- Analog input signal level: 300MV-2V
- SNR: >90db
- Dynamic range: 100db
- Distortion: 1KHZ% 0.001 or less
- Amp rated power output: 150MW + 150MW amp impedance 16-300Ω
- Frequency response: 20-20KHz (-0.3db)
- Signal level output: RMS 2V
- Power supply: DC 12-15V (inside + / outside -)
- Size: 132X83X30 mm
- Weight: 600g

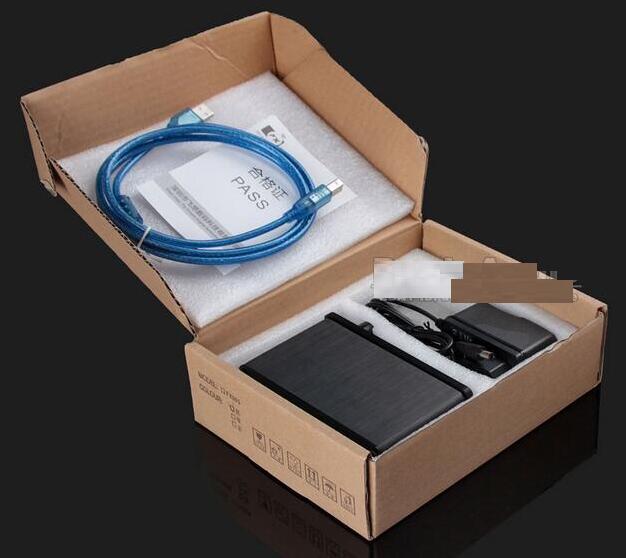

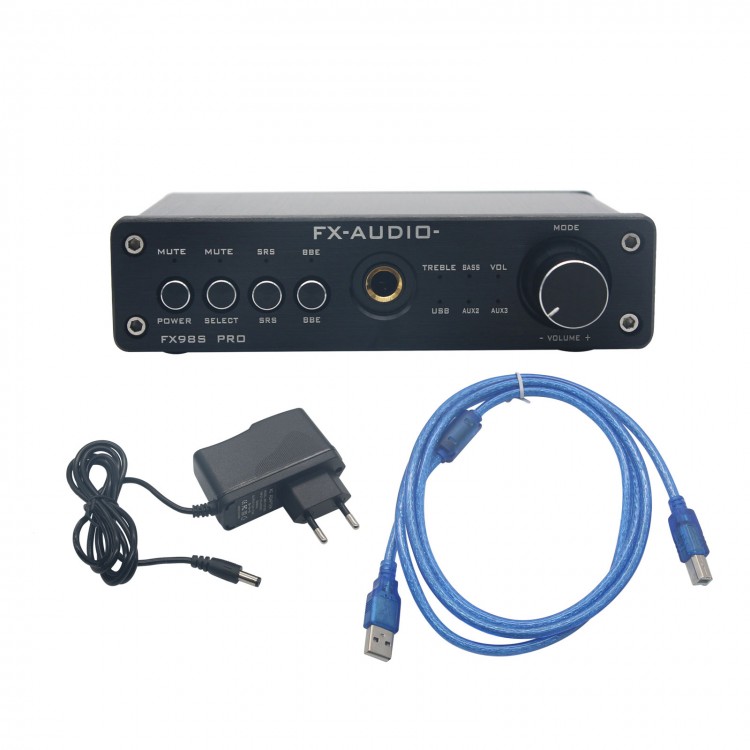

Package include:
- 1 x Integrated amp
- 1 x Power supply
