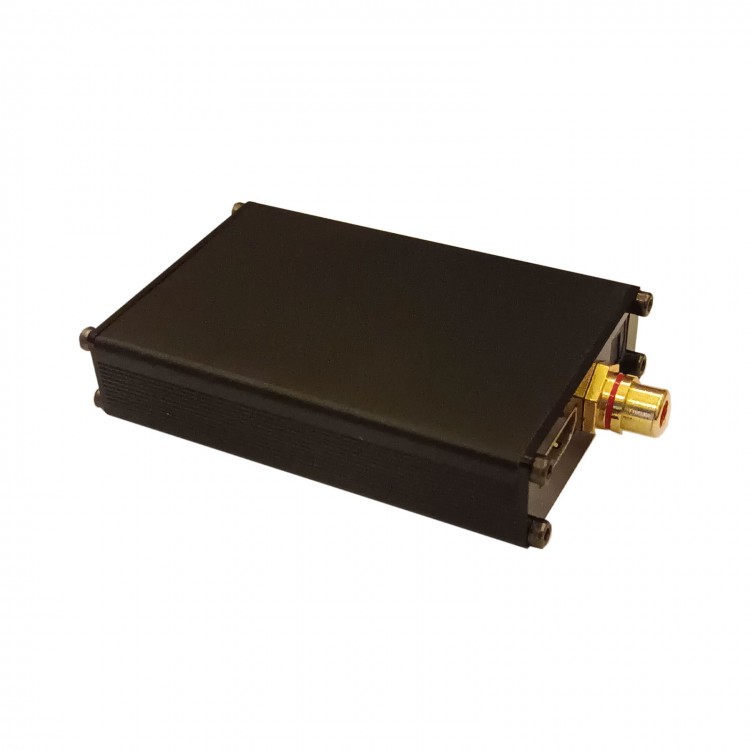

AUDIOBYTE-UH-01 USB Asynchronous Digital Interface with ARM + CPLD Asynchronous Framework and ADUM1400 Digital Isolator
Description:
- This digital interface using Romania's famous interface program for AUDIOBYTE reference to simplify the design, mainly in view of the cost of the direct reproduction is too high, so we simplified a lot of circuitry, retained the common several output functions, and it is still suitable for daily use.
- This architecture also uses the ARM + CPLD asynchronous architecture and uses isolated DC-DC, ADUM1400 digital isolator, LT3542 low ripple LDO support; for AUDIOBYTE solution, which is a customized commercial solution under the premise of AMANERO solution.
- Product support system: for WIN system, for DAPHILE system, for MAC system, for Android system
- Note: for WIN10 below need to install the driver
Driver download address: link: https://pan.baidu.com/s/1Cf5p2NSPYSfaCAl8T6hgVg
Extraction code:q324
Specification:
- Input method: Type-C USB interface

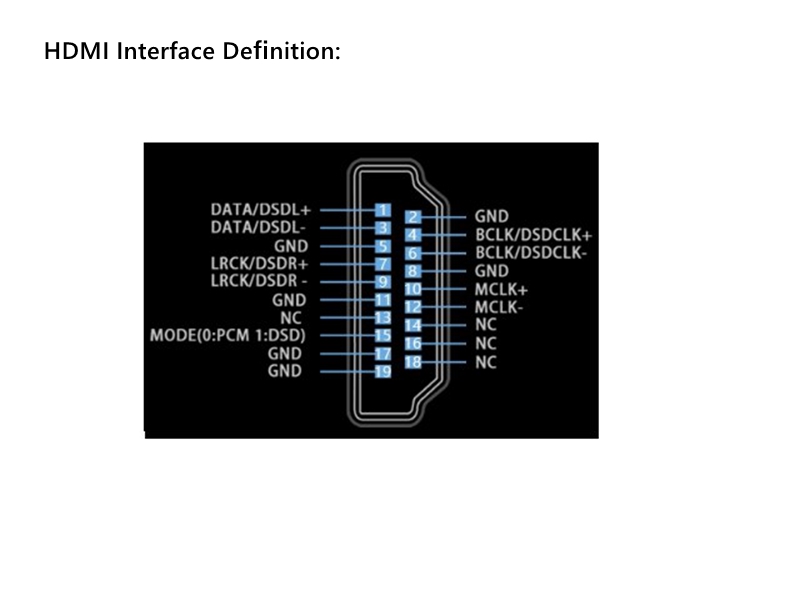

- Output method: HDMI (differential I2S), SPDIF, Optical
- Output format description:
HDMI supports DSD64 ~ DSD512, PCM16 ~ 32bits, 44.1KHz ~ 384KHz
SPDIF supports PCM16 ~ 24bits, 44.1KHz ~ 192KHz
Optical supports PCM16 ~ 24bits, 44.1KHz ~ 192KHz
Package Included:
- 1 x Host
