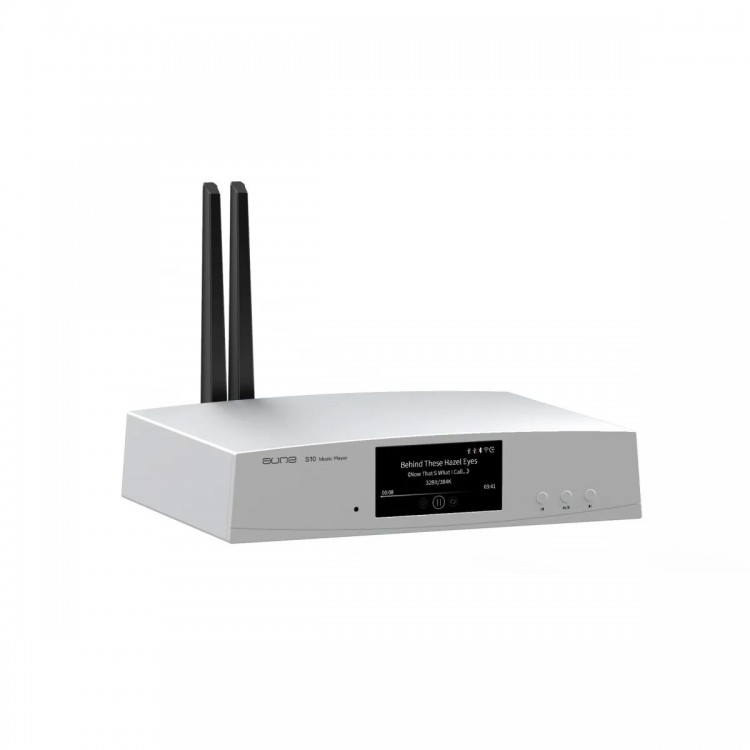

Aune S10 Pro Network Music Player DAC Audio Decoder (Silver) Designed with ES9038Pro Decoding Chip
Features:- The one network music player that you need: The S10N/S10 Pro, the new generation of Aune's network music player, innovatively adopts distributed multi-core frame-Media Tek streaming core + free-scale underlying hardware decoding core + HD Bluetooth core (for LDAC/aptX) + Aune PLL clock core + FPGA asynchronous generation core, which enables it to satisfy the high fidelity needs of wireless and local playback. It is the innovative master tape-grade network music player that purely focuses on sound.
- The innovative distributed 5-core frame: Bluetooth core, PLL clock core, MTK streaming core, FPGA signal generation core, and underlying core for NXP
- The Media Tek Streaming Core: Use the dedicated App to control the S10N/S10 Pro, which simple and convenient to use. Supports for AirPlay, Tidal, Qobuz, QQ Music, etc. For DLNA and NAS.
- For NXP Cortex-M7 core: Aune's third generation underlying hardware decoding core. The hardware frame is similar to that of the classic CD player. Super fast startup. Supports 32bit/768k and DSD512. Coaxial/optical/IIS outputs. The whole CPU is used for sound reproduction. The S10N/S10 Pro player purely focuses on sound. For CUE, AAC, FLAC, WAV, ISO/DFF/DSF and ALAC.
- QCC5125 Bluetooth Core: Via Bluetooth, the S10N/S10 Pro can play high-resolution audio from your smartphone/computer/music player. Supports HD Bluetooth codecs such as for LDAC and aptX HD. Bluetooth can sound so good, too.
- PLL clock processing core: The complex and precise PLL core supports clock input. You can use either the internal clock or the external clock. And then, the FPGA core asynchronously generates the ultra-low-jitter digital signals, leading to the sound which is natural, musical and full of details.
- FPGA audio processing core: It directly decodes the master tape-grade music file, and the signals are transmitted to the FPGA equipped with two ultra-low-jitter oscillators; the FPGA then uses the algorithm to regenerate the ultra-low jitter digital signals, and achieves the precise output.
- Multi-scenario: The S10N/S10 Pro satisfies the need of multi-scenario application. With the support for streaming/local/HD Bluetooth, it can play from all kinds of master tape-grade sound sources. "Variable" as it can get, the in variable focus is always the sound.
- Home mastertape-grade hifi system built in a snap: An S10N/S10 Pro and a pair of active speakers/an amplifier + active speakers. There, the home mastertape-grade HiFi system is built.
- Multiple interfaces for easy connection: The S10N/S10 Pro has not only coaxial and optical out, but also IIS out (for local playback only); has the RCA and XLR line outputs that are not just any ones, but variable ones; has not only common digital/analog outputs, but also a clock input. The S10N/S10 Pro can satisfy all kinds of needs of connection.
- Custom ultra-low-jitter oscillator purer digital signals: The custom ultra-low-jitter oscillator, together with the PLL core, leads to purer and more precise digital signals.
- Power supply frame: Digital + linear dual transformer. Digital+linear transformers, multi-channel two-stage power supply and low-ripple voltage regulator chip, lead to the great sound of both digital outputs and analog outputs. S10N/S10 Pro power part = transformerx2 + main power outputx3 + regulation phase (max) x4 + voltage regulator chip with dedicated controlx8 + independent power supply ICx16.
- 4" display screen. Say No to light pollution and interference. The 4" display screen is simple and neat, minimizing light pollution and radio-frequency interference. Moreover, the controls can be done on a smartphone. The design creates a clean listening environment and helps you focus on the music.
- 2 USB ports support external storage up to 2TB. Two USB ports support mobile hard drives and USB flash drives of up to 2TB. With the large external storage support, you can have a large local music library and enjoy your favorite songs with ease.
- Two antennas for Wifi and Bluetooth. The HD Bluetooth and streaming are two independent parts that have their own antenna and thus don't interfere with each other.
- Rigorous Hifi component selection for better sound. The components used for the S10N/S10 Pro are high-quality ones that are carefully selected, such as the C0G capacitor and the film chip capacitor. Everything is aimed at good sound. Solid-State Electrolytic Capacitor for Digital Part; Dedicated Electrolytic Capacitor for DAC Part; For Panasonic FK Electrolytic Capacitor; Digital Isolation Transformer; Analog Decoupling Capacitor for WIMA; SMT Film Capacitor.
- High-spec and more details: Actual measurements: noise floor 4.39uV; THD+N 0.00068%; THD+N for digital part -147.6dB (1kHz at 24bit/96k); jitter 181ps. Excellent specifications is the basis of excellent sound.
- Aesthetic tuning: The tuning is based on real instrument sounds and music pieces referencing, leading to the signature which is natural and full of musicality.
- Specially for S10 Pro: FS-1 PLL clock module for Titans, SC-Cut OCXO, ES9038Pro flagship DAC chip and 10M clock output.
Recommended Pairings:- SC1 Audio Clock + S10N/S10 Pro Network Music Player
- S10N/S10 Pro Network Music Player + S9c DAC with Headphone Amp
- SC1 Clock + S10N/S10 Pro Network Music Player + S9c DAC with Headphone Amp
Package Included:- 1 x S10 Pro Music player
- 1 x Power cable
- 1 x Remote control
- 2 x Antennas
