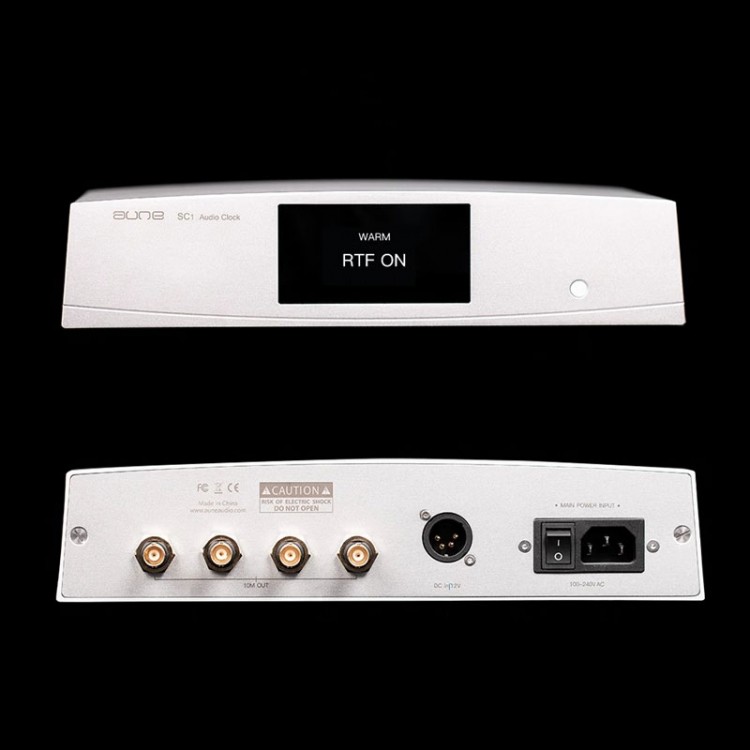

AUNE Silvery SC1 Digital Audio Clock HiFi OCXO Clock 10MHzX4 2XSquare Wave + 2XSinewave Output

Availability: In stock, usually dispatched in 1 business day

  • Price:$614.09
  • Price in reward points: 6141 Reward Points: 61
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $601.81 $589.53 $571.10 $546.54 Contact US
Quantity:

You might like

  • $0.00
  • $0.00
  • $0.00

AUNE Silvery SC1 Digital Audio Clock HiFi OCXO Clock 10MHzX4 2XSquare Wave + 2XSinewave Output

Specification:

- Output frequency: 10MHz x 4
- Output power: 10MHz > 7dBm (50ohms)

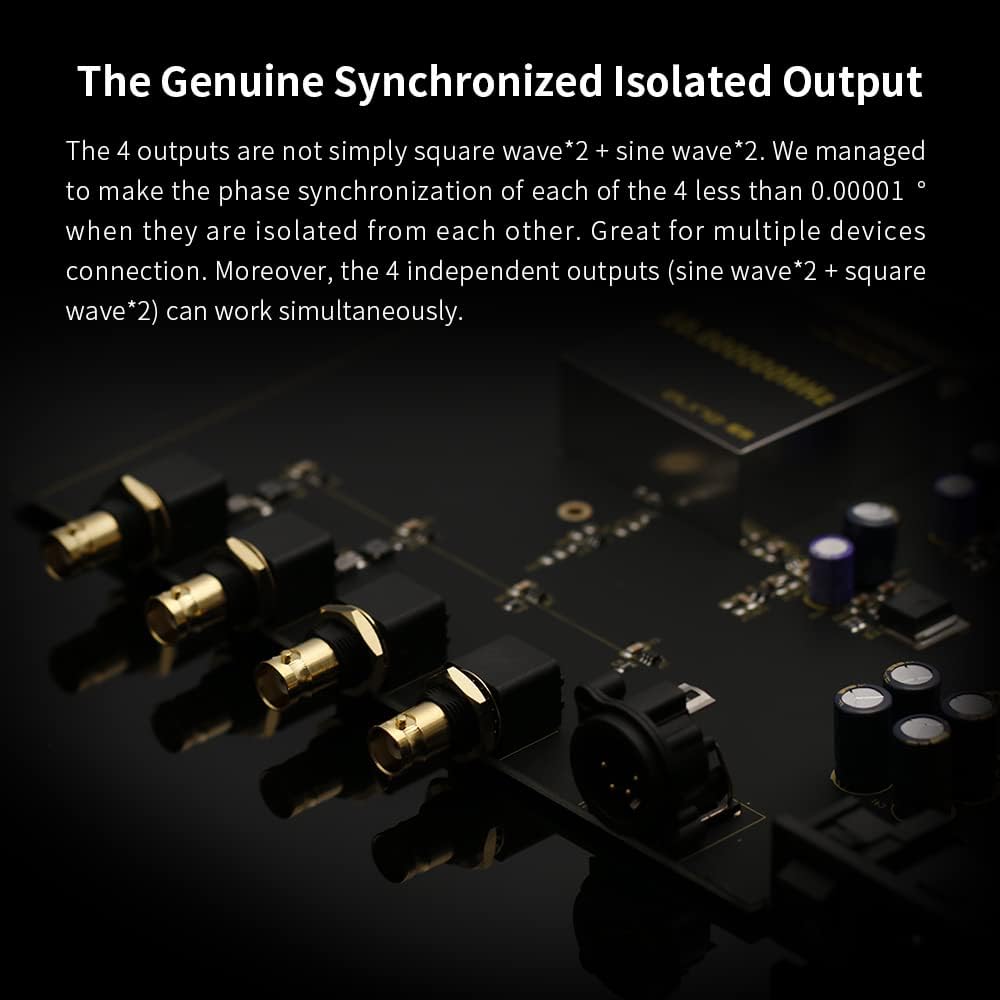

- Output waveform: 2 x square wave/ 2 x Sinewave
- Frequency precision: <±0.02ppm
- Jitter (when OCXO output): < 200FS BW 1Hz - 1MHz
- Warm-up time: 5 minutes at basic warm-up

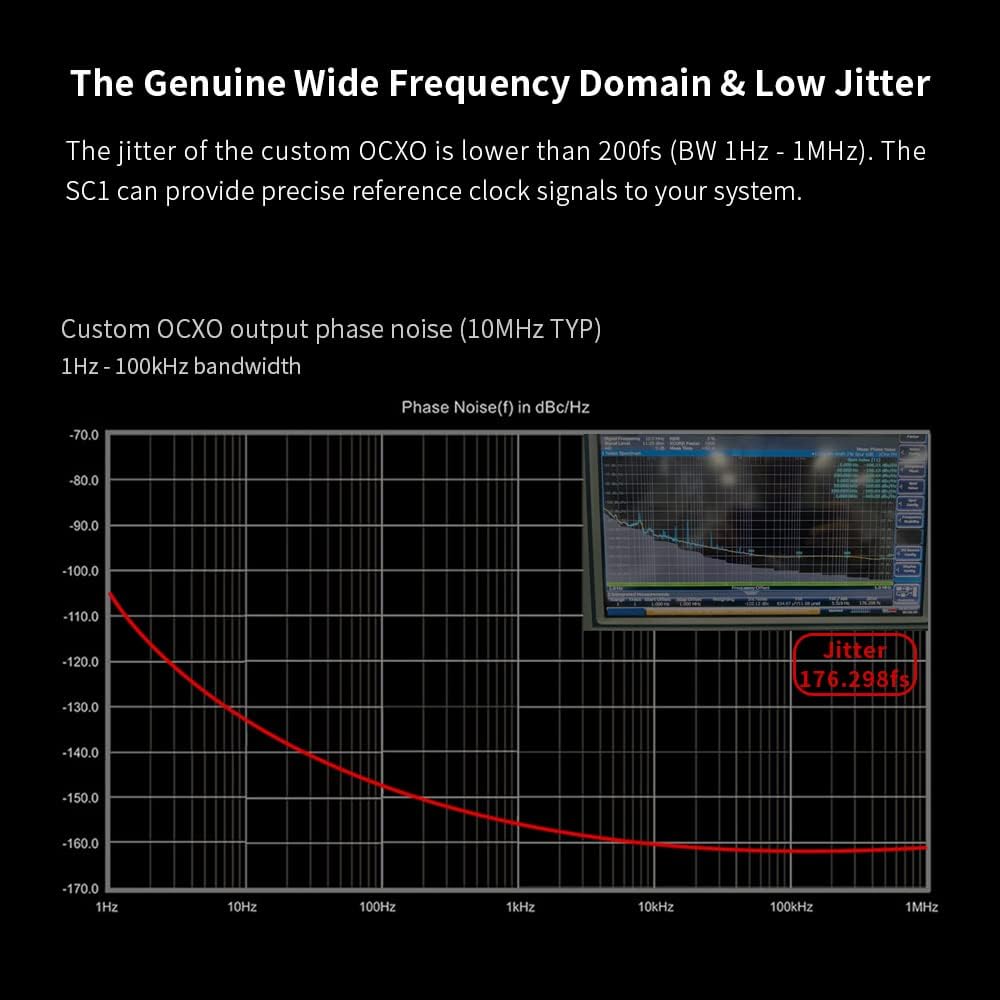

- Phase noise: < -100dBc at 1Hz offset; < -125dBc at 10Hz offset; < -145dBc at 100Hz offset; < -155dBc at 1kHz offset; < -160dBc at above 10kHz offset
- Working temperature: 0℃ ~ 50℃
- Recommended environment: 15℃ ~ 35℃

Package Included:
- 1 x Audio Clock
