• Auto XJW01 LCR Digital Electric Bridge Resistance Capacitance Inductance ESR Meter Insert Paster Clip

Auto XJW01 LCR Digital Electric Bridge Resistance Capacitance Inductance ESR Meter Insert Paster Clip

Availability: In stock, usually dispatched in 1 business day

  • Price:$104.07
  • Price in reward points: 1041 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $101.99 $99.91 $96.79 $92.62 Contact US
Quantity:

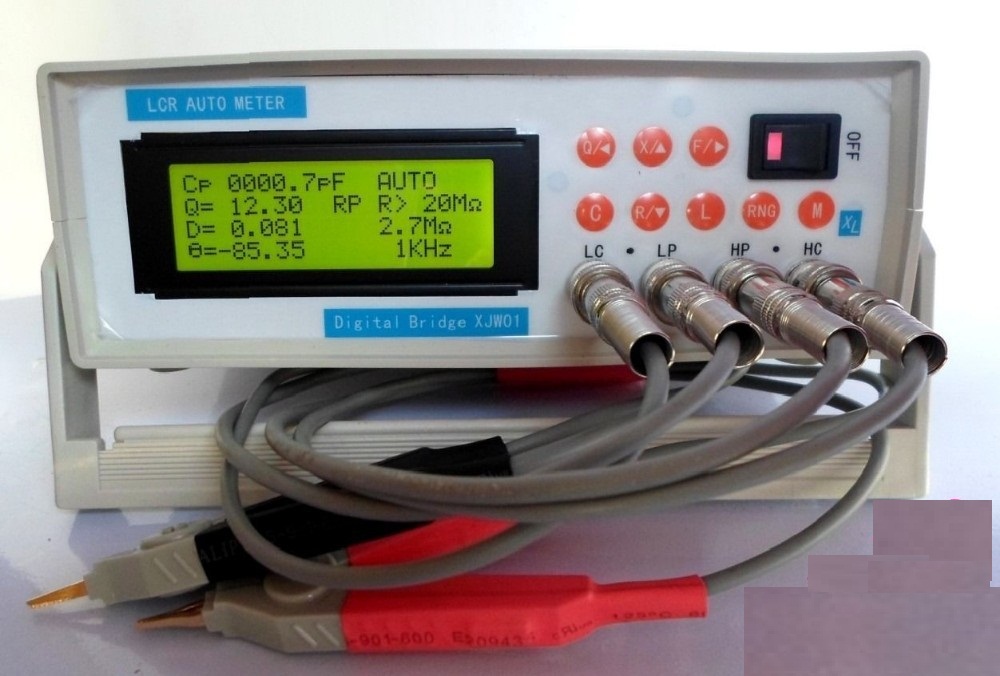

Auto XJW01 LCR Digital Electric Bridge Resistance Capacitance Inductance ESR Meter Insert Paster Clip


Product Specification:
- Test parameters : L,C,R,D,Q,ESR
- Basic accuracy: 0.3%-0.5%
- Equivalent circuit: Series
- Range Mode :Auto
- Test Speed: Fast: 2.5, medium : 2, Slow: 1 (times / sec.)
- Calibration function:Auto
- Test terminal configuration:The  test line
- Display:  2004 LCD
- Test signal frequency: 100Hz, 1kHz,7.831kHz
- Test signal level: 1.75Vrms(max)
- R: 0.0002 Ω — 9.999 MΩ
- C: 0.1 pF —
- L: 0.01 μH — 1000 H
- D,Q: 0.001 — 9999
- Operating temperature and humidity:  0°C-40°C,≤90%RH
- Power: voltage: AC110V or 220v to DC 9V; Frequency:   50Hz
- Power consumption:  ≤0.45W

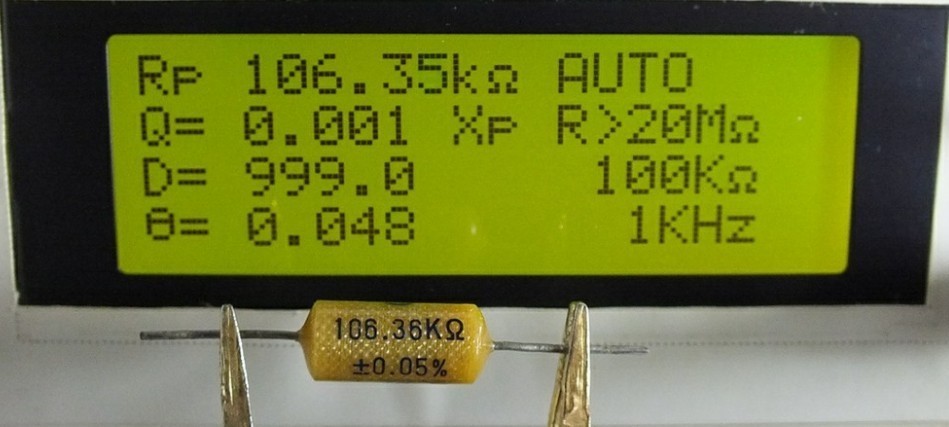

The main parameter display:
- Cp: capacitor in parallel mode
- Cs: series capacitor model
- Lp: inductor in parallel mode
- Ls: series inductor model
- Rp: resistance in parallel mode
- Rs: resistance in series model

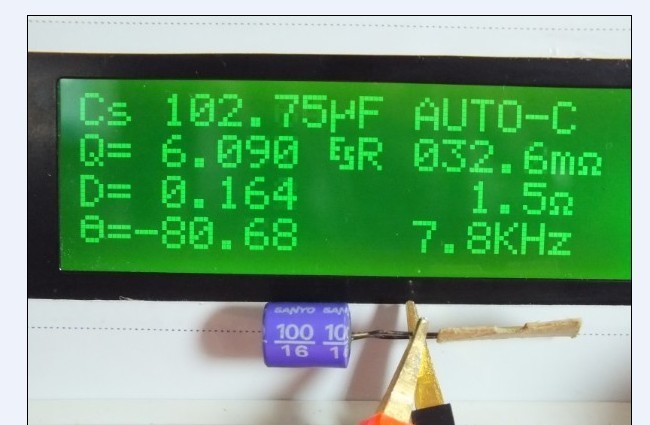

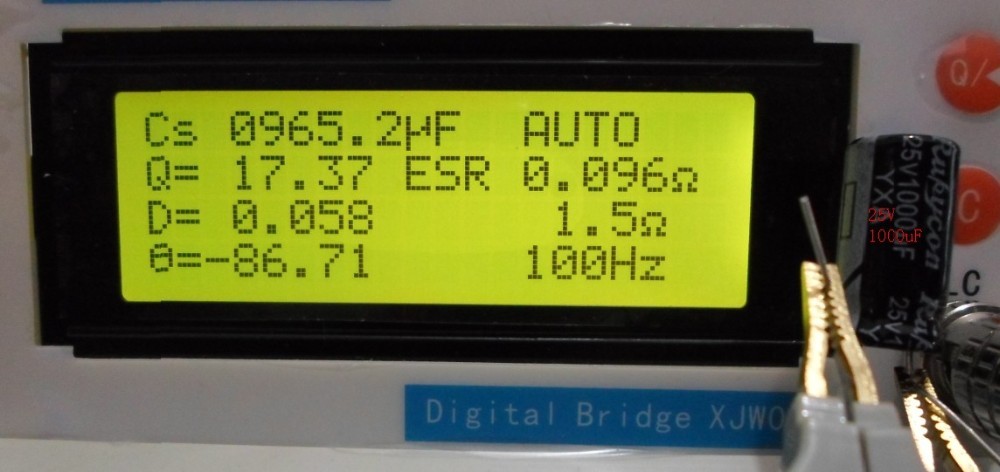

Deputy Senate display:
- The quality factor Q
- D: loss factor
- Theta: phase angle
- Rp: equivalent parallel resistance
- ESR: equivalent series resistance
- Xp: equivalent shunt reactance

Notice:

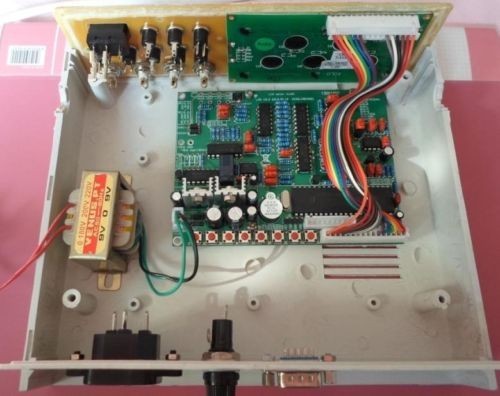

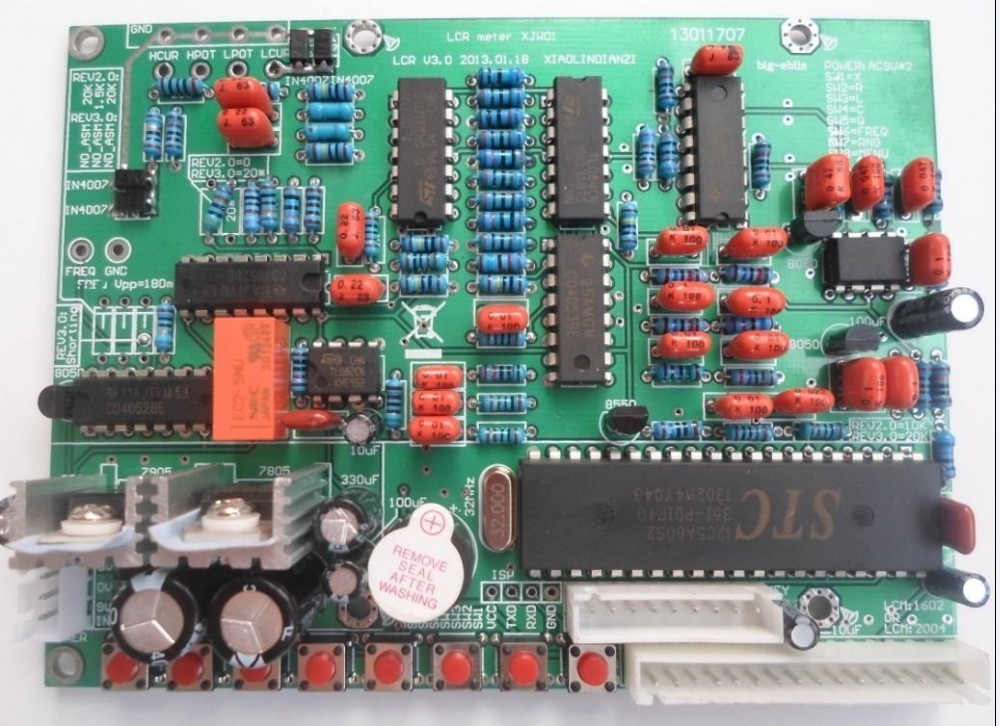

- The bridge meter is not finished,  the  motherboard  has been Weld finished and calibrated to 0.3% weld, the weld test clip has been  weld assembly .
- But the shell is kits  needs  your to  Welding assembly it.
- Please tell me your need: Input voltage of 110V or 220V.
- The AD converter's words: about 1000 words, by over sampling technology, the effective resolution of about4000 words
- Measurement methods: quasi bridge measurement, measuring principle is similar to the ratio method for measuring resistance.

Package List:
- 1   x   XJW01 LCD Auto LCR Digital Electric Bridge
- 1   x    Paster Clip
- 1   x    Insert Clip
