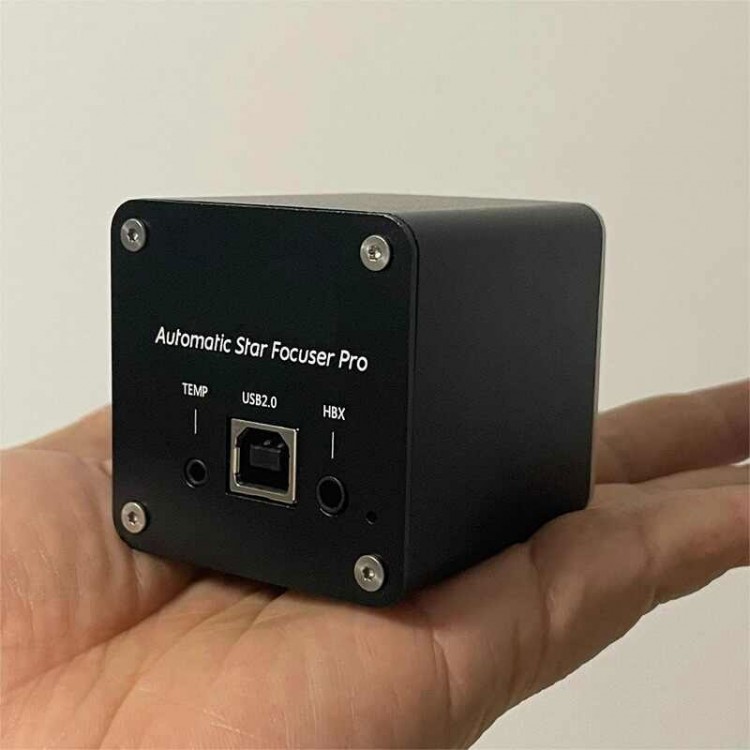

Automatic Star Focuser Pro EAF Electronic Automatic Focuser USB 5V Powered (Standard Version)

Automatic Star Focuser Pro EAF Electronic Automatic Focuser USB 5V Powered (Standard Version)

Features:
- Powered by USB 5V
- Provides Ascom driver in English
- Provides control software for Windows
- For NINA, kstars, MDL, etc.
- Supports three-level focusing via a handle controller, up to 5 meters
- Operational data logging
- Compatible with Sky-Watcher's telescope focusers, Sky Rover's APO, for Celestron C8, 6SE, 8SE, CYCK, 2047, etc.

How to use?
1. Install CH341SER serial port driver and Ascom driver
2. Fix the automatic focuser
3. Set the zero position by the control software
4. Set an appropriate non-effective stroke

How to set the zero position?
When your focuser is fully retracted or the scale is 0, the position is called the zero position. After fixing the EAF to the focuser, please tell the EAF which position is the zero position first.
1. Install and open the Star Focuser Pro App (control software), and connect the EAF;
2. Use the software to control the EAF to rotate and slowly adjust to fully close the focuser or to reach the scale of 0;
3. Set the current position to 0 in the control software and click Set, so that the zero position is calibrated;
4. Similarly, you can determine the maximum stroke.

Note: Pay attention to the rotation direction of the motor during the adjustment process. If the rotation direction of the motor is wrong, you can adjust it by checking the option of motor reversal.

Method of Setting Non-effective Stroke:
For example, if the current position is 0, take 1000 steps to position 1000, and then start to go back and forth according to 10 steps.

Package Included (Standard Version):
- 1 x EAF
- 1 x USB2.0 data cable (1.5 meters)
- 1 x Universal CNC bracket
- 4 x M4 screws
- 2 x M5 screws
- 3 x Elastic couplings (5-4, 5-5 & 5-6)

Packaging Details (Standard Version):
- Weight: 0.43kg
