Automotive CAN Bus Data USBCAN Diagnostic OBD Interface CAN Analyzer CAN OBD Acquisition Tool
Description:
This CAN analyzer is compatible with USB2.0 with 1 channel CAN interface
With this device, the PC can be connected to the vehicle CAN network through the USB bus, and the data acquisition and data processing in the CAN network can be made.
USBCAN-I OBD device, CAN adopts the standard OBD II interface, which can be used to connect the USBCAN-I interface of the vehicle for developing automotive electronic equipment, simulating ECU data and CAN bus node, analyzing ECU communication protocol, collecting vehicle information and other information, and its core purpose is to record, send and receive, analyze data of vehicle CAN bus.
At the same time, the device has the characteristics of integration, small volume, plug and play, etc.
Parameters:
- Operating voltage: 5V
- Power supply : USB,
- Isolation voltage: DC1000V electromagnetics isolation
- EMC: Contact discharge:-+4V; air:-+15KV; Group pulse immunity:-+1KV; Surge immunity:-+1KV
- Operating system: Windows 98/2000/2003/ME/XP/7/8/10
- Programming environment: c,c++,c++builder,vb,net/VB/VC/EVC/NET/delphi/labwindow/labview
- Size: 88*22*44mm
- Interface: OBD II
- Material: Plastic
- CAN channel:1
- Operating temperature: -40~80 degree C
- Baud rate:5kps-1Mbps
- Transmission speed: 8000Frame / second
- Execution standard: support CAN2.0A and CAN2.0B protocol, meet ISO/DIS 11898-1/2/3

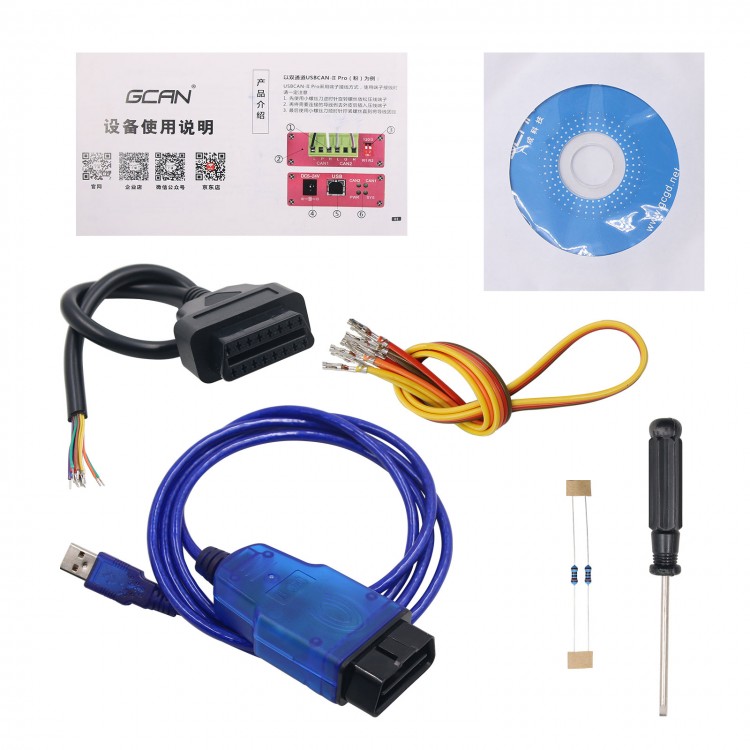

Package included:
- 1 xUSB CAN OBD
