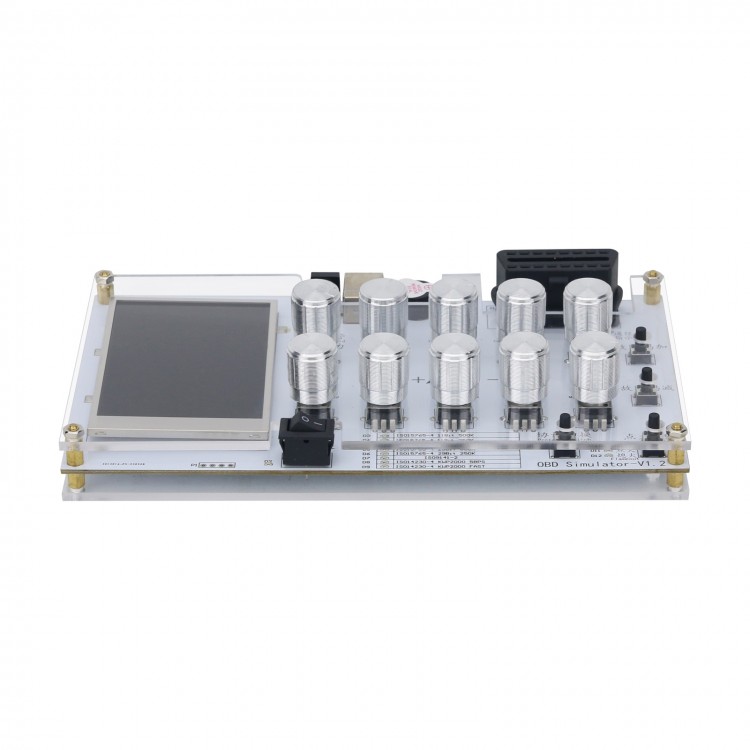

Automotive ECU Simulator OBD Simulator with LCD Display Screen for Passenger Cars ELM327 Development
I. Description:
The automotive ECU / OBD simulator is developed by front-line automotive electronics engineers. It simulates the standard automotive OBD communication protocol. It can be used for research and development in HUD display industry, car networking industry, racing watch development company, etc. It can achieve the same effect as the actual car test, and save the company's development cycle and cost of automotive electronic products!
II. Supported Protocols:
1. ISO15765-4 11BIT 500k;
2. ISO15765-4 11BIT 250k;
3. ISO15765-4 29BIT 500k;
4. ISO15765-4 29BIT 250k;
5. ISO9141-2;
6. ISO14230-4 KWP2000 5BPS
7. ISO14230-4 KWP2000 FAST
III. Support Data Item Simulation:
3.1 Support real-time simulation of 12 kinds of vehicle parameters through the local knob / button
- Support vehicle speed simulation;
- Support speed simulation;
- Support coolant temperature simulation (water temperature simulation);
- Support intake air temperature simulation;
- Support intake air flow simulation;
- Support intake manifold pressure simulation;
- Support absolute throttle position simulation;
- Support ignition advance angle simulation;
- Support engine load simulation;
- Support remaining oil quantity simulation;
- Support fault code simulation;
- Support frame number simulation.
3.2 After connecting with a computer via a USB data cable, it supports the simulation of nearly 140 remaining vehicle parameters.
Package Included:
- 1 x OBD Simulator
