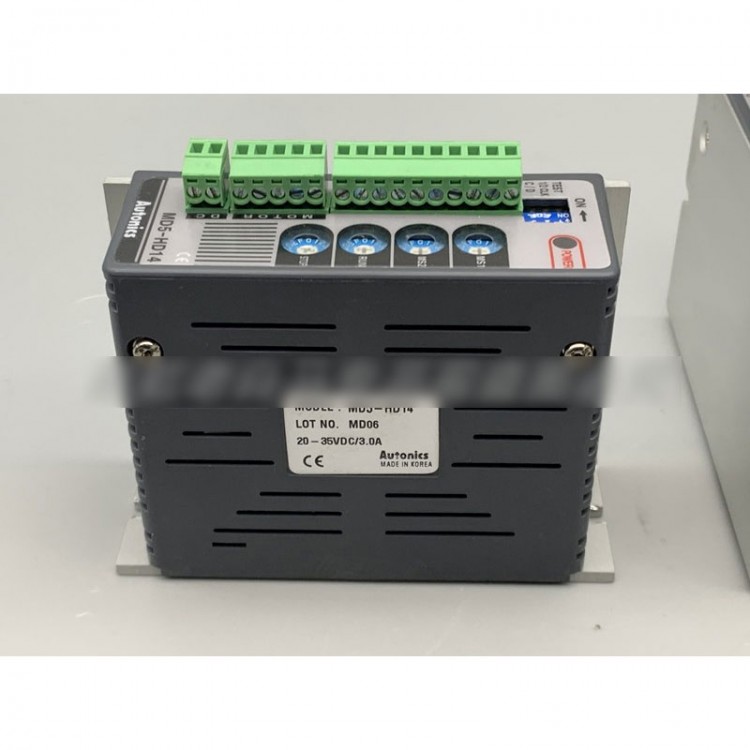

Autonics MD5-HD14 Secondhand 5-Phase Stepper Motor Driver Boasts High Subdivision Precision

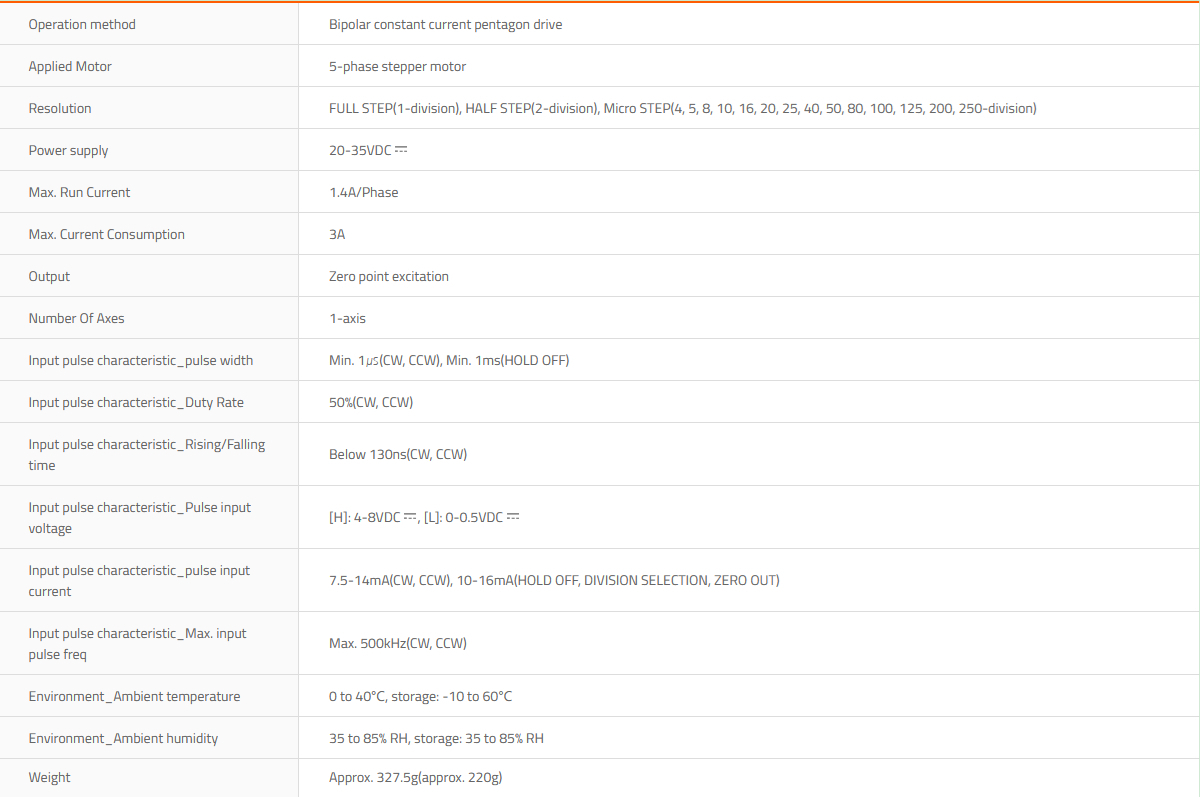

Features:
- Operation method: Bipolar constant current pentagon drive
- Applied Motor: 5-phase stepper motor
- Resolution: FULL STEP (1-division), HALF STEP (2-division), and Micro STEP (4, 5, 8, 10, 16, 20, 25, 40, 50, 80, 100, 125, 200, 250-division)
- Power supply: 20-35VDC
- Max. Run Current: 1.4A/Phase
Attention:
- This product is not brand new. It is secondhand.
- Before shipping, the product has passed tests.
- DFC materials and technical support will be provided after you buy the product.
Package Included:
- 1 x Stepper Motor Driver
Packaging Details:
- Weight: 0.4kg
※ Since torque characteristics are improved but the driver temperature rises with the 30VDC power supply, the driver should be installed at the well ventilated environment. Torque is variable by power supply.
※ Max. current consumption: Based on the ambient temperature 25℃and ambient humidity 55%RH.
※ RUN current varies depending on the input RUN frequency, and the max. instantaneous RUN current varies also.
※ Max. input pulse frequency is max. frequency to be input and is not same as max. pull-out frequency or max. slewing frequency.
※ Environment resistance is rated at no freezing or condensation.
