AUTOOL BT460 Car Battery Tester Analyzer 12V 24V Car Automotive Charge Cranking Analyzer

AUTOOL BT460 Car Battery Tester Analyzer 12V 24V Car Automotive Charge Cranking Analyzer

Description:
- AUTOOL BT460 Battery Tester adopts currently the world's most advanced conductance testing technology. It can measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery more easily, quickly and accurately.

- It can read common fault of the vehicle cranking system and charging system, which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair.

Features:
- Test all automotive(include 12V cars and 24V heavy trucks) cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.
- Directly detect bad cell battery.
- Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.
- Directly test the battery with loss of electricity, no need to full charge before testing.
- Testing standards include currently the world's majority of battery standards, CCA, JIS, DIN, IEC, EN, SAE, GB.

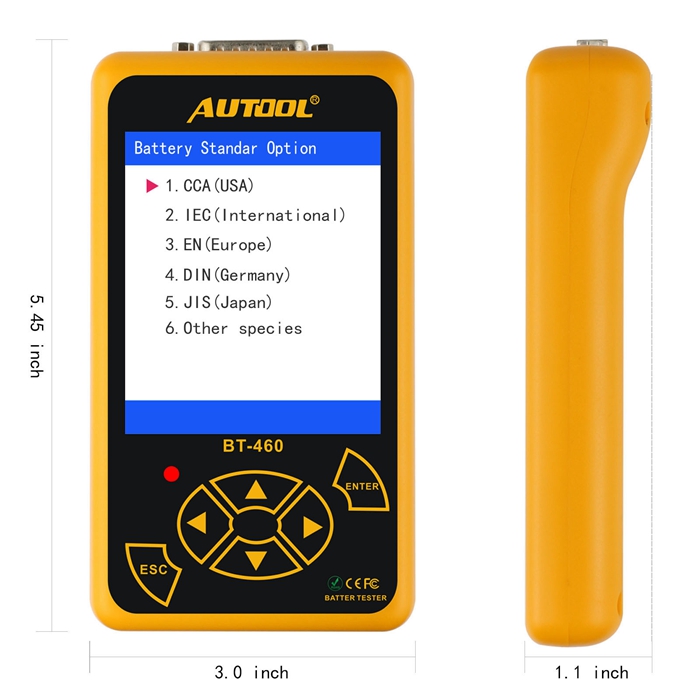

- 4’’ large colorful TFT display, provide gentle and clear reading experience
- Support Multi-languages: English, Russian, Spanish, French, German, Italian, Polish, Thai, Korean, Chinese, Japanese, Turkish.

Advantage:
1. Simple and easy to use
2. Test batteries on and off the vehicle
3. Accurate results in milliseconds
Compared to other tester, the test results of Autool BT460 Battery tester are the same (tolerance ±15) when testing at the same time
4. Battery Life Analysis
5. Analysis Result: Good or Replace
6. Large easy to read LCD display.
7. Test results based on JIS, EN, DIN, SAE and IEC Standards.

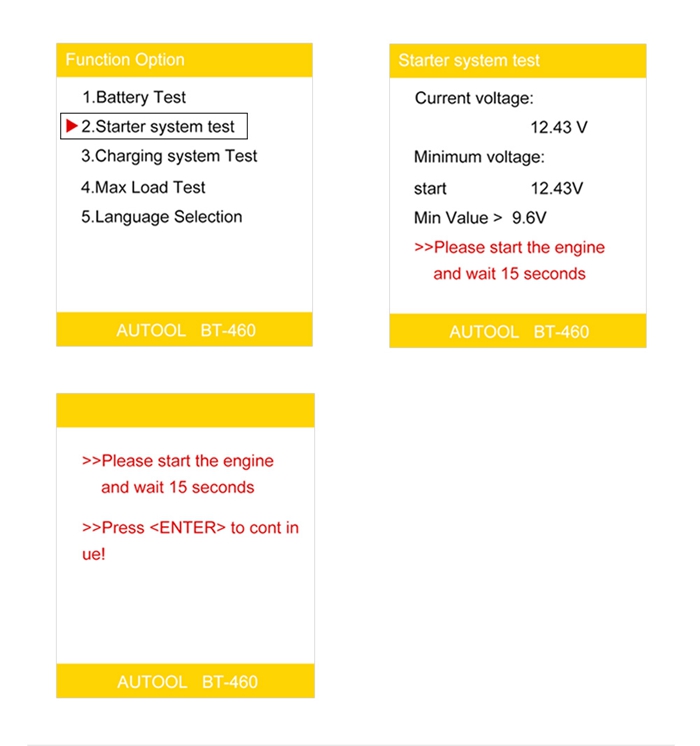

8. Vehicle cranking system test --- cranking time, voltage and status.

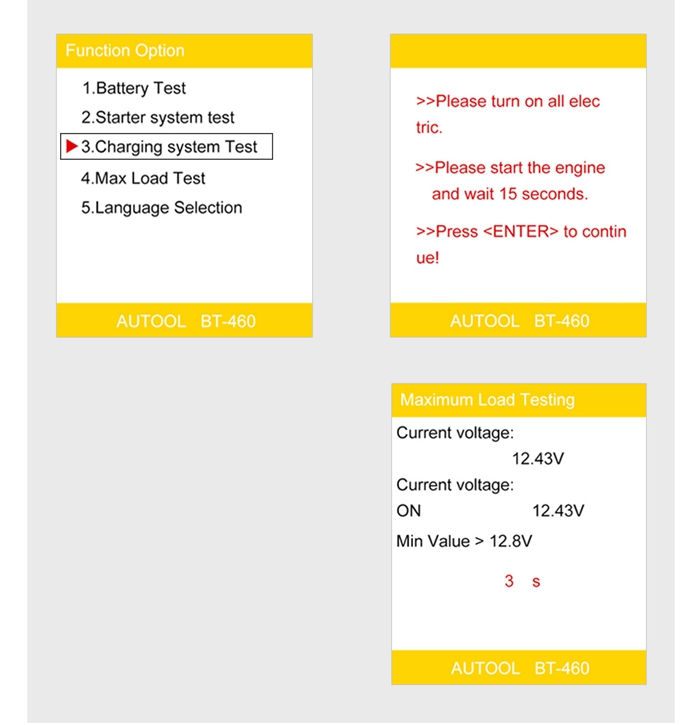

9. Vehicle charging system test --- load voltage, unloaded voltage, ripple status and charging system status.

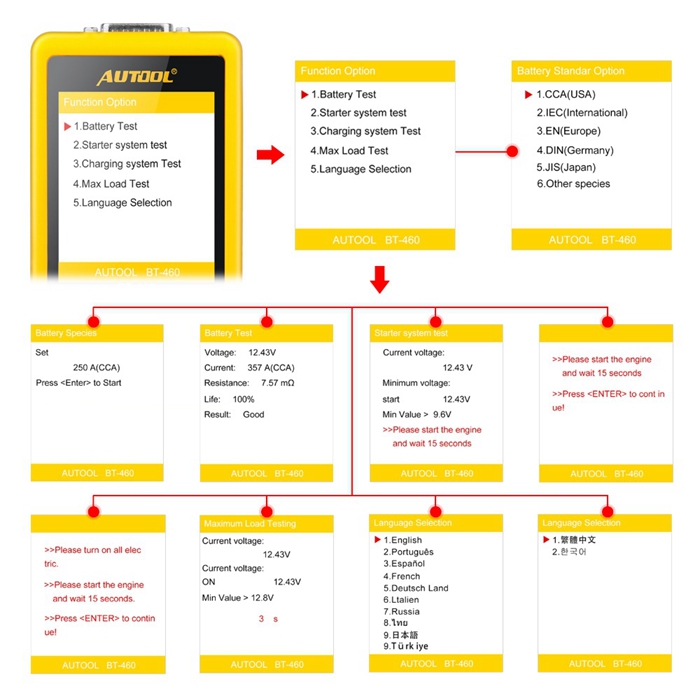

Functions:
- Test Result: Good or Replace
- Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
- Internal resistance value (m)
- Life in percentage (%)
- Cranking system
- Charging system

Technical Parameters:
Measure Standard & Measure Range
- CCA: 100-2400
- JIS: 26A17--245H52
- DIN: 100-2200
- IEC: 100-2200
- EN: 100-2400
- SAE: 100-2400
- GB: 30-220Ah
- BCI: 100-2400
- MCA: 100-2400
- CA: 100-2400

- DC Voltmeter Test Range: 8-30DCV
- Working Environment Temp.: -20°C-50°C

Package Included:
- 1 x BT-460
- 1 x Battery Clamp Cable
- 1 x User Manual
