Q1 2MP 1080P Visual Cleaning Gun Car Air Conditioner Cleaning Gun with .4.3" Color Screen Tool Box
$136.03
4-In-1 Car Vacuum Cleaner Tire Pressure Gauge Inflator with LED Lighting (Digital Display)
$62.27
PDR-1000W Paintless Dent Repair Took Kit Professional Car Dent Remover Car Dent Repair Tool w/ Case
$263.32
Notice:
1.Clean liquid not include.
2.Fit for : USA EU Asia cars and light truck (Fit for gasoline injector,not for diesel injector!)
3.The injector clean kits
include many different kinds of adapter, cover almost all the
EU,Asia,USA cars and light trucks. Non-Dismantle injector Throttle and
fuel system.
4.The system is not only
characteristic of high and low pressure cleaning function. At the same
time put the function of the whole combustion chamber fuel system of
several major functions in one product, such as cleaning throttle valve
and the fuel nozzle.
Check fuel injection model, throttle or EFI:
EFI :
1ãFind out the fuel return hose, disconnect it and plug it with suitable adaptor
2ãFind out the fuel inlet hose, disconnect it and connect it with the outlet hose of the cleaner with proper adaptor
3ãConnect the outlet and
return hose of the fuel tank, and open the tank cover; if there is not
return hose, please move the fuse of the fuel pump so that the pump will
not work
4ãCharge the cleaning fluid into the tank of the cleaner
5ãConnect the air source power to the air port of the cleaner, adjust its pressure 40-50PSI
6ãCheck all connect point to make sure there is not leakage
7ãStart the engine to clean the fuel system
To Throttle model:
The way of connection is the same, just adjust the pressure of the air source 1-5PSI.
The way to identify the inlet and return hose:
1.Generally speaking, inlet hose is bigger, return hose is smaller;
2.There is always a filter connected in the inlet hose side, and a buffer in the return side;
3.There is arrow on the hose to show the fuel flow direction
The way to identify the inlet and return hose:
1. Generally speaking, inlet hose is bigger, return hose is samaller;
2. There is always a filter connected in the inlet hose side, and a buffer in the return side;
3. There is arrow on the hose to show the fuel flow direction.
NOTE:
To the throttle style system, the way of connection is the same, just adjust the pressure of the air source 1-5PSI
Specifications:
Pressure: 0-120PSI
Weight: 3.5kg
Tank: 600ml

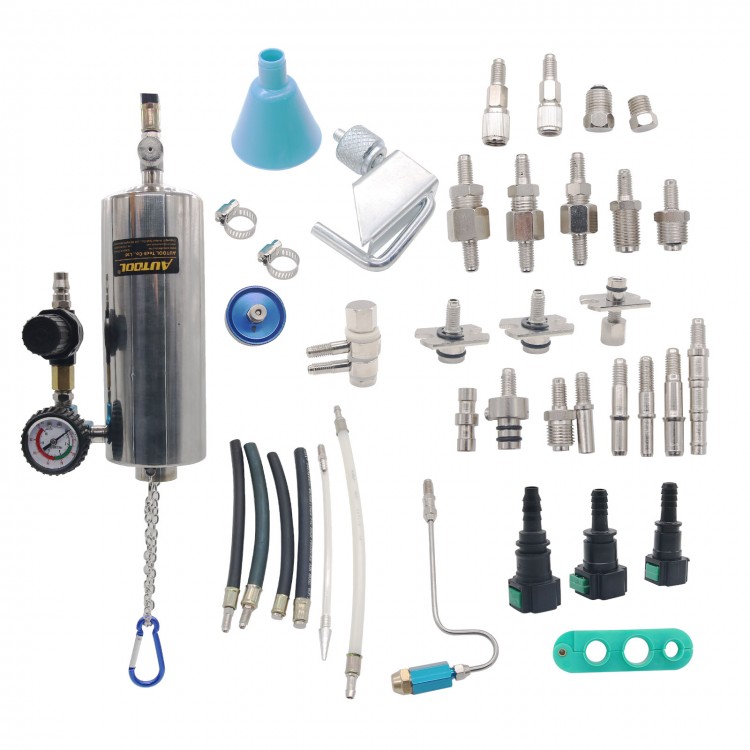

Package included:
- 1 x Fuel Injector Cleaner
- 1 x Adapter Kits
- 1 x Suitcase

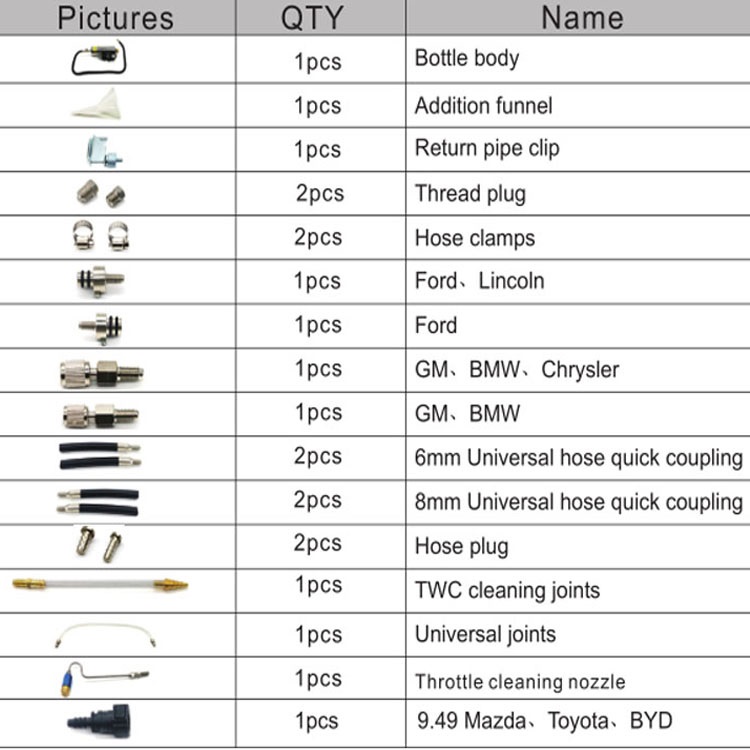

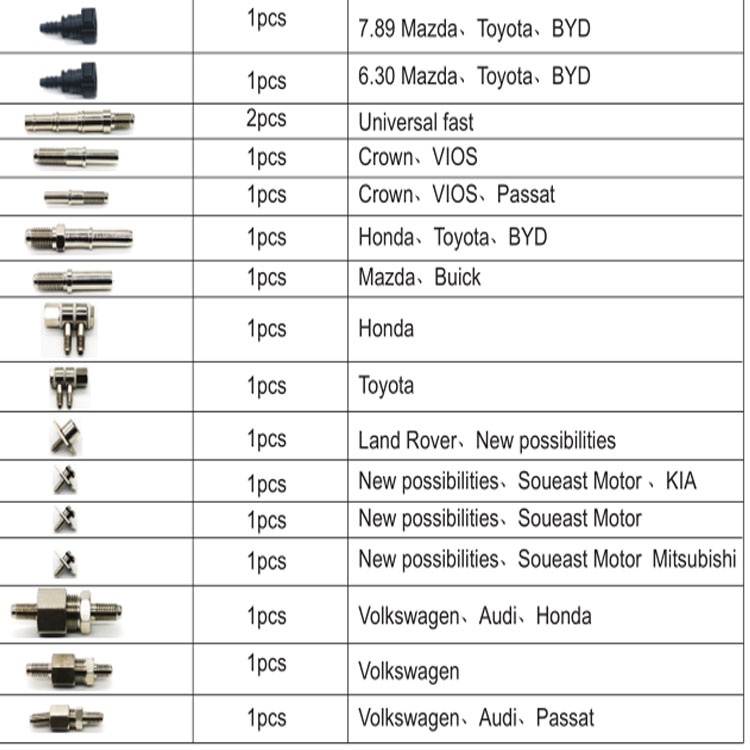

The Bottle Cleaning Tools List:
