Electronic magnifying glass, high definition, high definition, portable digital microscope, endoscope, industrial test pcb camera

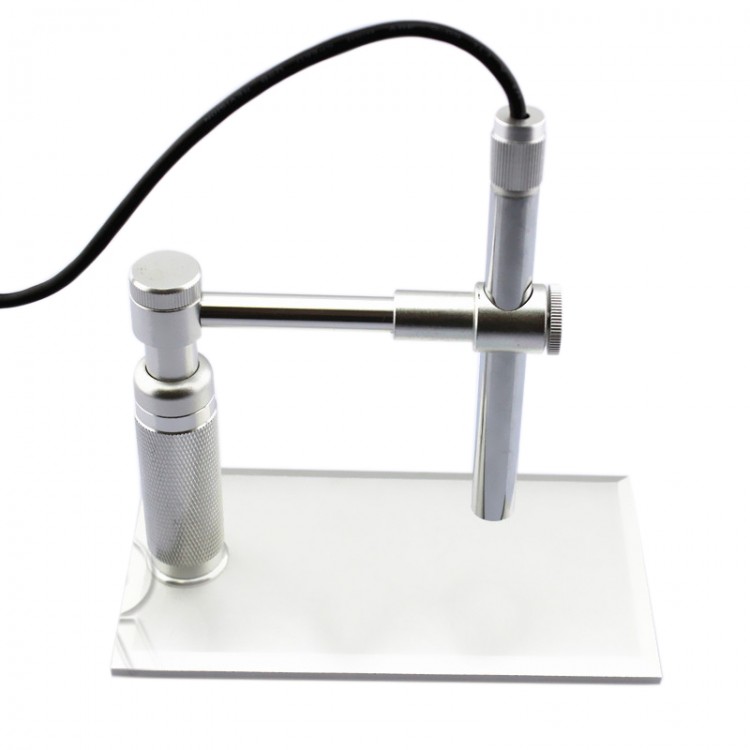

AV600x HD Digital Microscope Video Endoscope Electronic Magnifier Otoscope Dental Inspection Camera
Application:
1. Endoscope: observe the circuit board; mechanical cavity; superficial cavity of human body
2. Microscope: inspect the electronic circuit boards, mechanical parts, insects, plants, etc.
Parameters:
- CMOS image sensor, resolution: 600tvl
- Image format: PAL or NTSC, 30frame/s
- Focusing distance: 3mm
- Magnification: 1-600 times, continuous zoom
- Signal cable length: 2m
- Aluminum alloy stent: adjustable height
- Interface: For AV BNC TV
- Observation angel: 360degree
- Diameter: 12mm
- Signal cable Length:2m
- Lighting: 8pcs X LED around the camera lens
- Power supply: 110V-230V adapter
- Voltage for microscope: DC 5V
- Focus ring length: 120mm
- Focus ring width: 12mm
Packaging included:
- Digital Microscope Camera X 1
