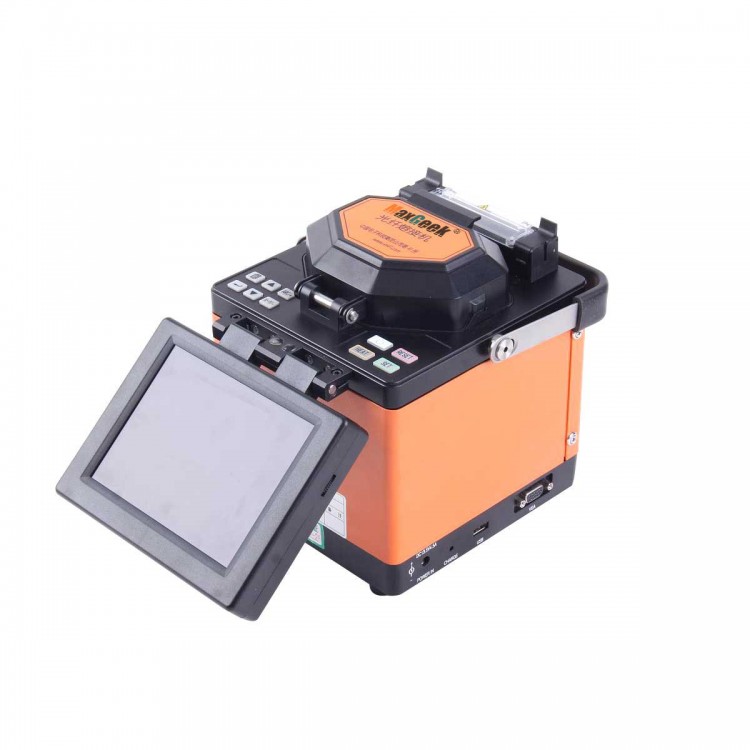

AV6471 Optical Fusion Fiber Splicer Splicing FTTX Network Testing Tool

AV6471 Optical Fusion Fiber Splicer Splicing FTTX Network Testing Tool

Product Description:
- AV6471 is a new designed fiber splicing equipment.The powerful function and super low splicing loss make it be competent for construction of trunk line and FTTX:Because of the compact configuration and precise mechanism,it can adapt to execrable environment.
- The novel fiber imaging system make the image clearer and exquisite.The real-time embedded OS provide friendly machine interface and abundant functions.The built-in large capacity Li-Ion battery can support long-time fieldwork.The embedded sensors measured temperature,humidity and air pressure supply closed-loop feedback control,so the instrument can adopt all kinds atrocious circumstance and the consistency of splicing loss was improved.

Features:
- New fully-digitalized design;
- Small volume,light weight,only 2.8kg include battery;
- 8 seconds splicing,25 seconds Heat-Shrinking;
- Close shield splice automatically;Close heater,heat automatically;
- X/Y axes were displayed meanwhile,Magnification up to 304 times;
- Real time calibrating system for discharging,parameter needn't be adjusted;
- Long Electrode Lifetime,up to 4000 times;
- USB and VGA ports;
- 5.7 inch digital high distinguish LCD;
- Battery capacity was display in real time.Precisely;
- Built-in high capacity battery,220 times splicing and heating can be accomplished easily;

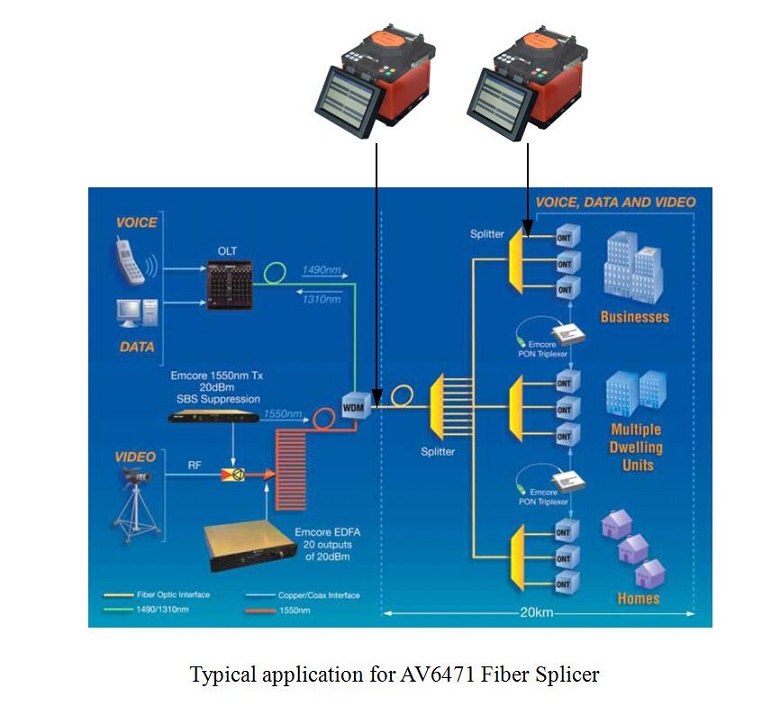

Typical Application: AV6471 Fiber Splicer mainly applied to fiber cable construction,fiber line maintenance,rush repair fiber cable and fiber device produce test.

Technical Parameter:
- Applicable Fiber:SMF(ITU-T G.652);MMF(ITU-T G.651);DSF(ITU-T G.653);NZDSF
- Average Splicing Loss:0.02dB(SM);0.01dB(MM);0.04dB(DS);0.04dB(NZDS)
- Average Splicing Loss    SM:0.02dB;MM:0.01dB;DS & NZDS:0.04dB
- Return Loss:>-60dB
- Operation Mode:Auto,Half auto,Manual
- Align Mode:Advanced PAS align mode.
- Fiber Diameter:clad diameter:80µm～150µm,coating diameter:100µm～1000µm
- Cleave Length:8～16mm(coating diameter<250µm),16mm（coating diameter 250～1000µm）
- Magnification:Vertical 152times,horizontal 304times.
- Image Display:5.7" 640x480 LCD.
- Pull Test:Standard 2N(optional).
- Heat-Shrinkable Tube:40mm,60mm and a series of micro Heat-Shrinkable Tubing.
- Battery Capacity:Typically splice 220 times,charging for 3.5 hour(available when charge).
- Battery Lifetime:Cycle life up to 300～500 times,replaceable.
- Electrode Lifetime:>4000 times,replaceable
- Lighting for Construction:Built-in super High-brightness LED supply convenience for night work
- Ports:USB,VGA
- Power Supply:Built in 11.1V Lithium Ion Battery.AC adopter(input AC100～240,output DC13.5V/4.5A)
- Temperature range:-10℃～50℃;Humidity:95%RH(40℃,no condensing);Altitude:0～5000m
- Size:L×W×H＝160×150×140(mm)
- Weight:2.3kg(no battery)

Package List:
- 1 x AV6471 Fiber Splicer

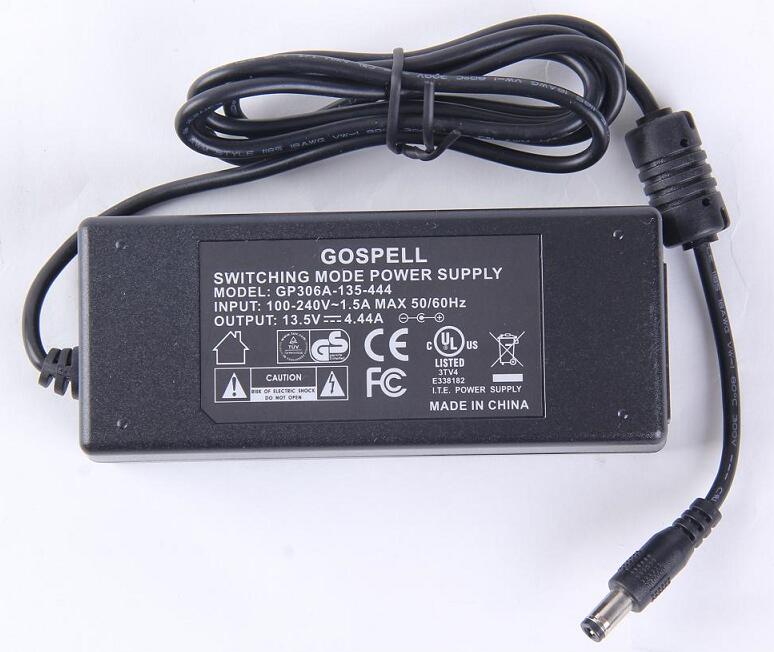

- 1 x Power adapter
- 1 x AC current cable
- 1 x Standby electrode
- 1 x Blower brush
- 1 x Bottle with siphon
- 1 x Fiber bracket

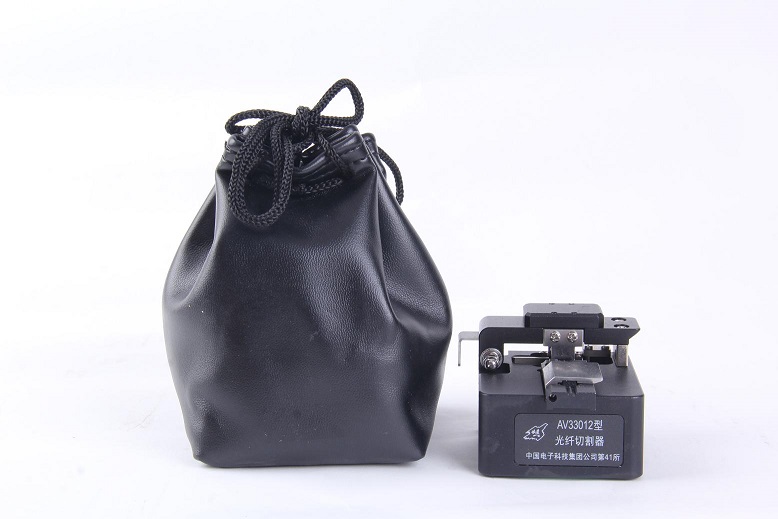

- 1 x Optical fibre cleaver(AV33012)

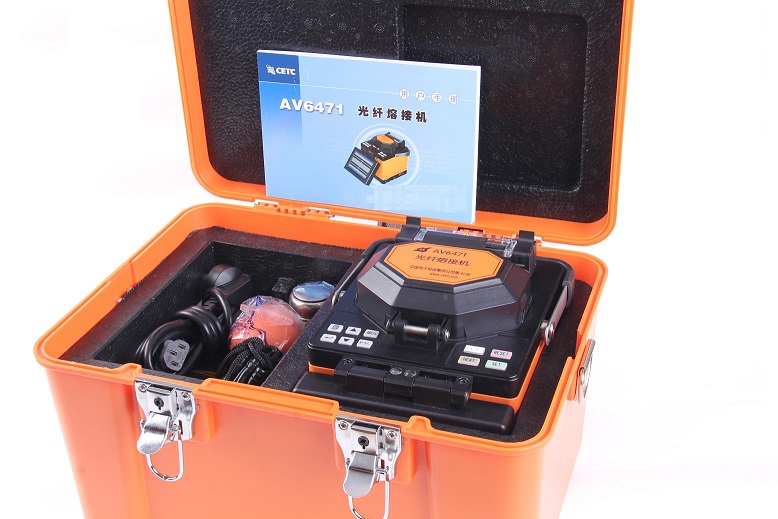

- 1 x Luxury tote kit
- 1 x User's manual
