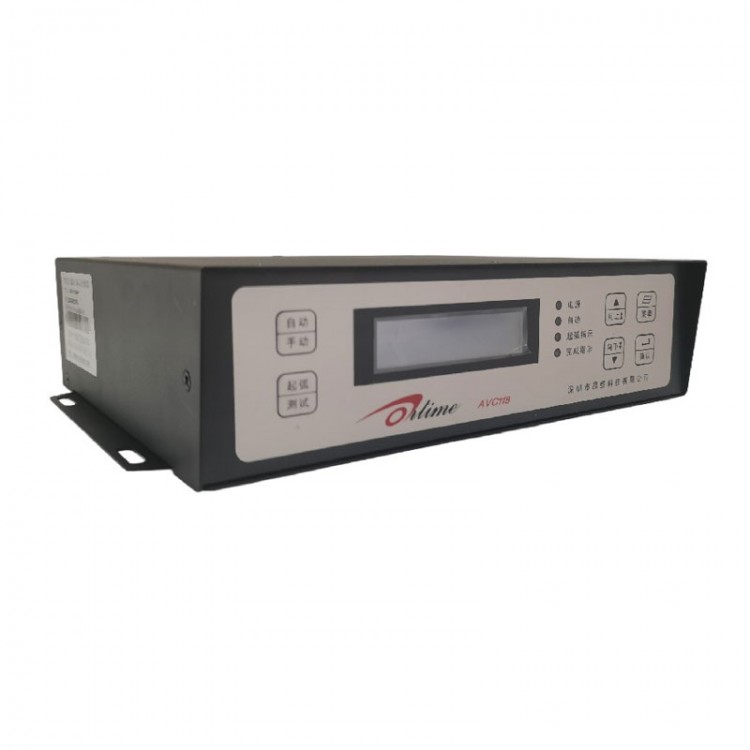

AVC118 Plasma Arc Voltage Height Controller Arc Voltage Height Control Used to Control DC 24V Motor

AVC118 Plasma Arc Voltage Height Controller Arc Voltage Height Control Used to Control DC 24V Motor

Description:
The AVC118 is a voltage sensing torch height control system that is designed for the CNC plasma cutting machines.

During cutting process, the cutting current always keep constant, and the cutting arc voltage will be changed with the height of torch. When the distance between the torch nozzle and work piece increases, the arc voltage increases, on the opposite, the arc voltage will decrease. AVC118 plasma arc voltage torch height controller will detect the voltage changes, then control the distance between cutting torch and work piece via the lifting motor in order to keep the arc voltage within a given range, so that the height of cutting torch is kept within a corresponding range.

Specifications:
* Working Voltage: DC 24V ±10%, 3 - 5A (depending on the power of the DC motor being driven, the output power of the DC power supply should be at least 10% greater than the maximum power of the motor)
* Lifting Motor: DC 24V motor
* Driving Method: PWM
* Output Power: Maximum 100W
* Operating Temperature: -10 to 60°C for the height controller
* Initial Positioning Method: Proximity switch initial positioning (suitable for underwater and surface plasma cutting)
* Protective Cap Positioning: (suitable for surface cutting)
* Voltage Divider Ratio: 100:1
* Accuracy: Maximum ±1V, adjustable
* Dimensions: 240mm x 210mm x 60mm (Length x Width x Height)

Packing List:
* 1 x Plasma Arc Voltage Height Controller

Packaging Details:
* Weight: 3.5kg
