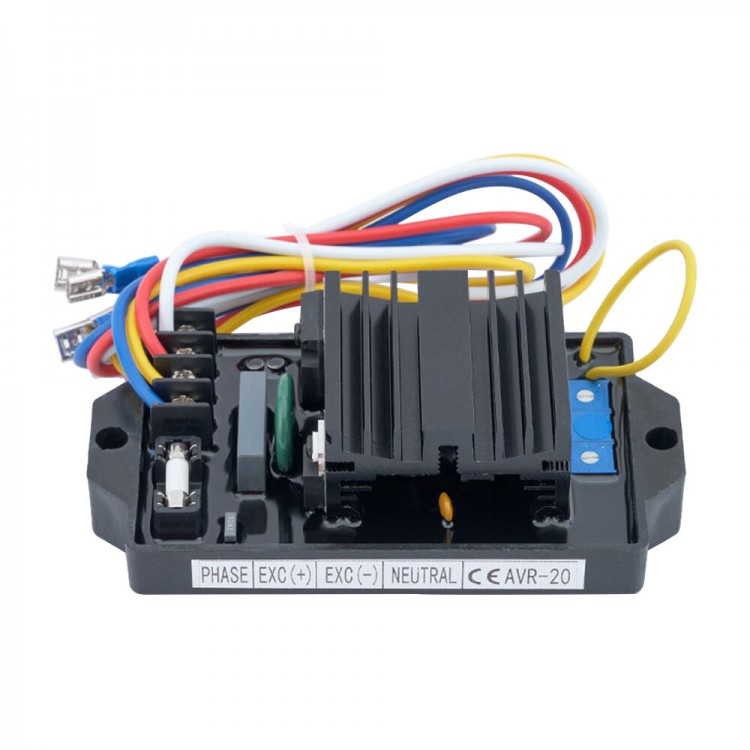

AVR-20 GB-20A AVR Automatic Voltage Regulator Brushless Excitation Generator Control Module Stabilizer Diesel Genset Parts

Availability: In stock, usually dispatched in 1 business day

  • Price:$33.03
  • Price in reward points: 330 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $32.37 $31.71 $30.72 $29.40 Contact US
Quantity:

AVR-20 GB-20A AVR Automatic Voltage Regulator Brushless Excitation Generator Control Module Stabilizer Diesel Genset Parts


Specification:
- Phases:single phase
- Voltage Adjustment Range:210-250 volts min
- Frequency:50/60HZ
- Frequency Protection Adj. Range:40-50HZ
- Output Voltage:0-115 volts-DC at 230 volts
- Output Current:20A continuous
- Residual Voltage For Build Up:5 volts minimum
- Regulation:+/-2% tyhristor
- Power Output Stage: half wave tyhristor
- Internal Fusing:10A (fast acting fuse)
- Operating temp:-10"C (14F) TO 60"C (140”F)
- Storage temp:-20"C (-4F) TO 80"C (176”F)
- Maximum humidity:95% non-condensing
- Dimensions:125*68*35mm(L*W*H)
- Fixing centers:11 5mm, 2xM6
