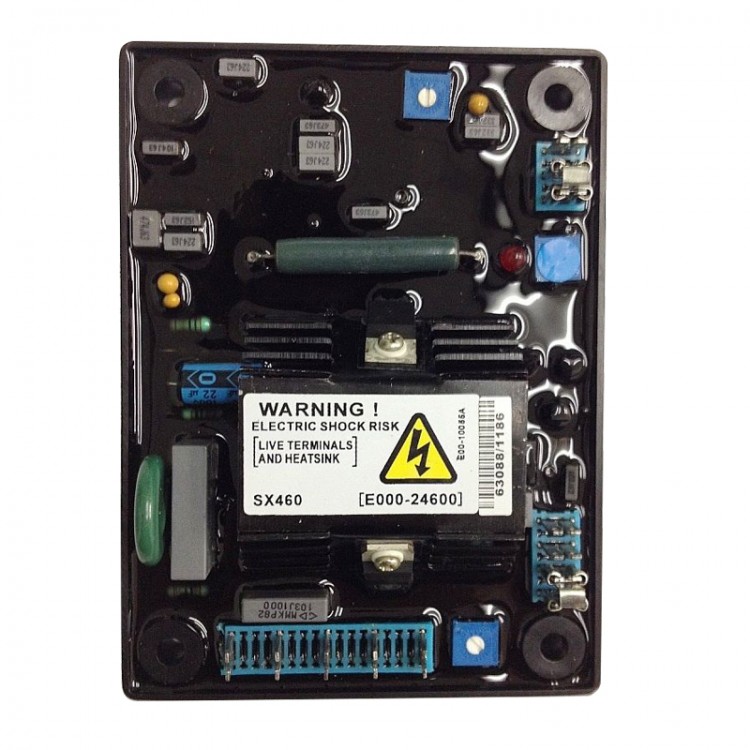

AVR SX460 Automatic Voltage Volt Regulator Replacement For Stamford Generator

AVR SX460 Automatic Voltage Volt Regulator Replacement For Stamford Generator

Description:
- 100% Brand New And High Quality
- SX460 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator (AVR) and forms part of the excitation system for a brush-less generator.In addition to regulating the generator voltage, the AVR circuitry includes under-speed and sensing loss protection features. - - Excitation power is derived directly from the generator terminals.
- Positive voltage build up from residual levels is ensured by the use of effcient semiconductors in the power circuitry of the AVR.
- Provision is made for the connection of a remote voltage trimmer, allowing the user fine control of the generator's output.

Specifications:

INPUT
- Voltage: Jumper selectable 95-132V ac or 190-264V ac
- Frequency: 50-60 Hz nominal
- Phase: 1
OUTPUT
- Voltage: Max 90V dc at 207V ac input
- Current: Continuous 4 A dc
- Intermittent 6 A for 10 secs
- Resistance: 15 ohms minimum
REGULATION
+/-1.0%
- THERMAL DRIFT
0.05% per deg. C change in AVR ambient

TYPICAL SYSTEM RESPONSE
- AVR response: 20 ms
- Filed current to 90%: 80 ms
- Machine Volts to 97%: 300 ms
- EXTERNAL VOLTAGE ADJUSTMENT
- +/-10% with 1 k ohm 1 watt trimmer
- UNDER FREQUENCY PROTECTION
- Set point: 95% Hz
- Slope: 170% down to 30 Hz
- UNIT POWER DISSIPATION
- 10 watts maximum
- BUILD UP VOLTAGE
- 4 Volts  AVR terminals
- ENVIRONMENTAL
- Vibration: 20-100 Hz 50mm/sec
- 100Hz -2kHz 3.3g
- Operating Temperature:-40°C to + 60°C
- Storage Temperature:-55°C + 80°C
- Relative Humidity 0-70°C:95%
- installationSize: 12.6cm x 9.2cm x 4.0cm

Notes:

1.With 4% engune governing.
2.After 10 minutes.
3.Applies to Mod status F onwards. Generator de-rate may apply. Check with factory.
4. Factory set, semi-sealed, jumper selectable.
5. Non condensing.

Package includes:
- 1 x SX460 Automatic Voltage Regulator
