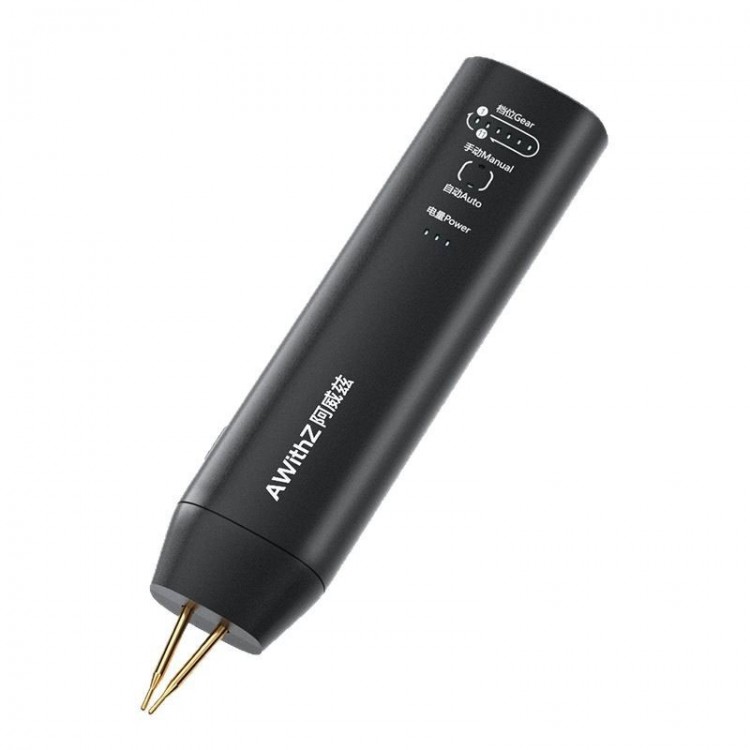

AWithZ H1 Pulse Spot Welder Pulse Welding Machine with 11 Power Levels and Replaceable Welding Pins

AWithZ H1 Pulse Spot Welder Pulse Welding Machine with 11 Power Levels and Replaceable Welding Pins

Features:
Compact & Portable Spot Welder
* AWithZ uses only grade A battery cells, rejecting cheap, low-quality grade B/C cells with high self-discharge and safety risks. We exclusively use premium, high-rate grade A cells—ensuring safety, durability, and no power leakage.

2-in-1 Professional Handheld Spot Welder – Free Your Hands
* This upgraded welder combines the welding unit and pen into one professional handheld device. No need for a separate port for the welding pen. You can perform spot welding with one hand—truly hands-free and more convenient to use.

Dual Pulse for Powerful Output – Capable of Welding 0.35mm
* All AWithZ models feature a dual pulse function for strong output. It can weld: 0.35mm nickel-plated sheets, 0.2mm steel or iron, and 0.15mm pure nickel sheets. Welds are firm and smooth. (Data based on lab tests – for reference only.)

Ergonomic Design for Comfortable Grip
* Lightweight & Portable – Fatigue-free for prolonged use. AWithZ features an ergonomic design with smooth curves that fit naturally in your hand for a comfortable grip. The lightweight build—only 125 grams—makes it easy to handle and carry, even for extended use.

Manual and Auto Modes – Precision at Your Fingertips
* This spot welder supports 11 levels of adjustable output power for precise control. It also features a manual welding mode, giving you greater control, accuracy, and stability during operation. This makes it a more professional and user-friendly choice.

Low Power Consumption & Long Battery Life
* Compact yet powerful—with high-performance battery cells and low power consumption, this welder delivers up to 1,500 spot welds per charge, reducing the need for frequent recharging and eliminating battery life anxiety during daily use.
* 1,500 continuous spot welds—minimizes downtime for charging.
* Ultra-low standby power (80A)—maximizes endurance.
* Automatic-shutdown after 8 minutes of inactivity—prevents wasted power.
* Data based on AWithZ lab tests at level 1 setting. Results may vary depending on usage and environment.

Multiple Safety Protections
* Equipped with a high-quality safety chip, temperature sensors, and intelligent safety algorithms, this device ensures secure operation through both software and hardware protection.

Additional Features
* Premium battery cells
* Impact protection
* Voltage regulation protection
* Short-circuit protection
* Low-temperature protection
* High-temperature protection
* Overcharge protection
* Over-discharge protection

Wide Application
* Ideal for spot welding cylindrical batteries, mobile phone batteries, button cells, and various DIY projects.

Replaceable Welding Pins – Say Goodbye to the Common Issues with Threaded Welding Pins
* AWithZ's newly upgraded second-generation replaceable pins use movable guide rails and embedded fixing technology. The scientific and reasonable design allows you to easily align the welding pins! The welding spacing can be adjusted from 0 to 2mm (MAX), which can flexibly adapt to welding needs. Say goodbye to the serious defects of the threaded replaceable pins of handheld welding machines, such as the spacing cannot be adjusted, misalignment, and easy sparking when not tightened!

Replacing Welding Pins:
1. Loosen the fixing screws of the welding pins on both sides
2. Remove the welding pins along the direction of the welding pins
3. Install the new welding pins and adjust the spacing
4. Tighten the fixing screws of the welding pins on both sides
* Please use a 3mm cross screwdriver to remove and replace the welding pins. The welding pin screws are embedded and fixed, and there is no need to remove them separately. If the screws are forcibly removed, the shell may be damaged.

Specifications:
* Brand: AWithZ
* Model: H1
* Product Name: Battery Spot Welder
* Battery Type: Lithium Polymer Battery
* Power Levels: 11 Adjustable Levels
* Charging Port: Type-C
* Charging Parameters: 5V / 1A (Max)
* Output Voltage: 4.2V (Max)
* Output Current: 650A (Max)
* Product Dimensions: Approx. 43mm x 25mm x 192mm

Packing List:
* 1 x Set of Spot Welder

Packaging Details:
* Weight: 0.25kg
