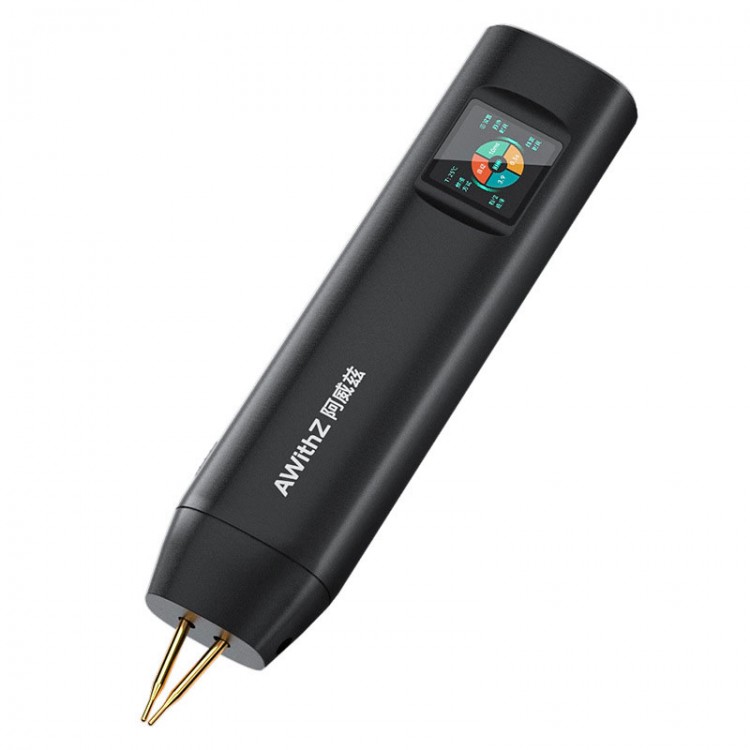

AwithZ H2 Portable Mini Spot Welder Battery Spot Welder w/ 90 Adjustable Levels & Large Color Screen

AwithZ H2 Portable Mini Spot Welder Battery Spot Welder w/ 90 Adjustable Levels & Large Color Screen

Features:
Compact & Portable Spot Welder with Dedicated Battery Increases Lifespan by 10 Times, Significantly Enhancing Welding Power
* AWithZ uses only grade A battery cells, rejecting cheap, low-quality Grade B/C cells that have high self-discharge rates and safety risks. We exclusively use premium, high-rate grade A cells—ensuring safety, durability, and no power leakage.

Handheld Spot Welder with Color Screen
* It features an ergonomic design for a comfortable grip, ensuring you won't experience fatigue during extended use. The newly added color screen enhances visibility, elevating performance to the next level.

Manual Trigger Output
* It features a manual spot welding button for greater control.

Dual Pulse for Powerful Output – Capable of Welding 0.35mm
* All AWithZ models feature a dual pulse function for strong output. It can weld: 0.35mm nickel-plated sheets, 0.2mm steel or iron, and 0.15mm pure nickel sheets. Welds are firm and smooth. (Data based on lab tests – for reference only.)

Smart Color Screen
* The new color screen comes with added trigger and preheat functions.
* AWithZ uses a high-quality, high-resolution color screen with an upgraded, intelligent interface. It now includes trigger and preheat adjustment features, offering 90 precision settings in a compact body with powerful performance for more secure welds!
* 0°/180° screen rotation
* 1.3-inch HD full-color screen
* 90 adjustable levels for accurate and secure welding points

Temperature Control and Over-Power Protection
* With an integrated temperature probe and power monitoring, it allows you to track usage in real time. If the machine exceeds temperature or power limits, it will automatically activate protection to safeguard your safety.

Ergonomic Design for Comfortable Grip
* Lightweight & Portable – Fatigue-free for prolonged use. AWithZ features an ergonomic design with smooth curves that fit naturally in your hand for a comfortable grip.

Multiple Safety Protections
* Equipped with a high-quality safety chip, temperature sensors, and intelligent safety algorithms, this device ensures secure operation through both software and hardware protection.

Additional Features
* Premium battery cells
* Impact protection
* Voltage regulation protection
* Short-circuit protection
* Low-temperature protection
* High-temperature protection
* Overcharge protection
* Over-discharge protection

Wide Application
* Ideal for spot welding cylindrical batteries, mobile phone batteries, button cells, and various DIY projects.

Specifications:
* Brand: AWithZ
* Model: H2
* Product Name: Handheld Spot Welder
* Adjustable levels: 90 levels
* Charging Parameters: 5V/1A (MAX)
* Output Current: 650A (MAX)
* Battery Type: Lithium Polymer Battery
* Charging Port: Type-C
* Output Voltage: 4.2V (MAX)
* Product Dimensions: Approx. 45mm x 28mm x 202mm

Packing List:
* 1 x Set of Spot Welder

Packaging Details:
* Weight: 0.3kg
