AWithZ P30C 21.8KW Spot Welder Energy Storage Spot Welding Machine for 0.8mm 18650 Lithium Batteries

AWithZ P30C 21.8KW Spot Welder Energy Storage Spot Welding Machine for 0.8mm 18650 Lithium Batteries

7 Major Advantages:
* Brand New MOSFET with Ultra-Low Internal Resistance
* Upgraded 15A High Current Fast Charging
* 2.4-inch 320×240 HD Color Display
* Powerful Dual Pulse Technology and Welding Thickness Up to 0.8mm
* 5x Improved Continuous and Stable Spot Welding Performance
* Six Core Factors and Over Ten Thousand Fine-Tuned Modes
* Brand New 9V Supercapacitor

Features:
Portable Energy Storage Spot Welding Machine
* Up to 0.8mm
* 21.8KW high power
* 2400A high current
* 6485J high energy
* 15A high current fast charging
* Thousands of fine adjustments

Supported Thickness up to 0.8mm
* With powerful output, it supports welding thicknesses up to 0.8mm. It can weld nickel-plated sheets, pure nickel sheets, iron sheets, steel sheets, aluminum and copper sheets.
* Nickel plated sheets: 0.8mm (MAX)
* Steel sheets: 0.8mm (MAX)
* Iron sheets: 0.8mm (MAX)
* Pure nickel sheets: 0.4mm (MAX)
* Copper sheets: 0.2mm (MAX)
* It is ideal for welding large batteries, cylindrical batteries, button batteries, and various mobile phone batteries.

2.4" 320*240 HD Color Screen
* Abandoning cheap, single-function digital tube display, we use a high-quality 2.4" 320*240 HD screen. It is a truly professional spot welding machine, bringing an extraordinary experience.

Six Core Factors and Over Ten Thousand Fine-Tuned Modes Ensure Stronger Welding
* Welding Modes: Manual / Automatic
* Preheat Time: 0-0.5ms
* Interval Time: 1-20ms
* Gears: 001-999 (999 fine-tuned levels)
* Trigger Time: 0.5-5.0s
* Continuous Welds: 1-3

Brand New Expensive 9V Capacitors
* We refuse to use imported, discarded, or second-hand capacitors! We do not compromise capacitor lifespan! AWithZ spares no expense, using only brand new, high-quality 9V super-capacitors. Rated for safe and stable voltage use.

Upgraded 15A High-Current Fast Charging – 5× Improved Welding Performance
* Breaking through the limitations of 3A low-current slow charging, this model is upgraded with 15A high-current fast charging, reducing the charge time from 30 minutes (3A standard model) to just 5 minutes before it's ready for operation.
* Consistent and stable spot welding
* 5× performance improvement
* Stronger weld consistency
* Greater efficiency during operation

Wide Range of Applications
* This welder is widely used in lithium battery assembly, electric vehicle repairs, mobile phone repairs, laboratories, production workshops, R&D departments, and more.

Multiple Safety Protections
* Equipped with a high-quality safety chip, temperature sensors, and intelligent safety algorithms, this device ensures secure operation through both software and hardware protection.

Additional Features
* Premium battery cells
* Impact protection
* Voltage regulation protection
* Short-circuit protection
* Low-temperature protection
* High-temperature protection
* Overcharge protection
* Over-discharge protection

Specifications:
* Brand: AWithZ
* Model: P30C
* Product name: Spot welding machine
* Capacitor type: Super-capacitor
* Input voltage: 9V
* Output power: 21.8KW
* Product size: 180mm x 131mm x 80mm

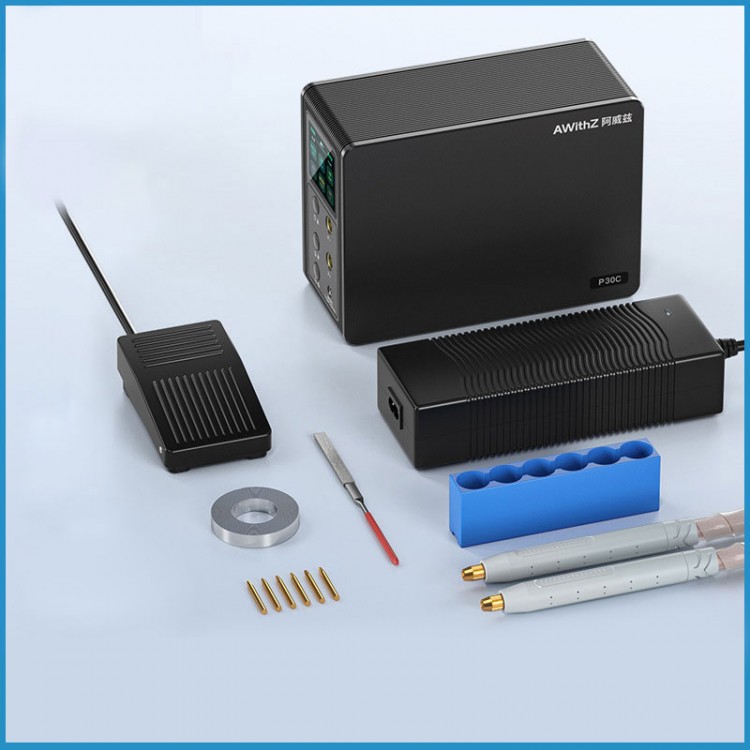

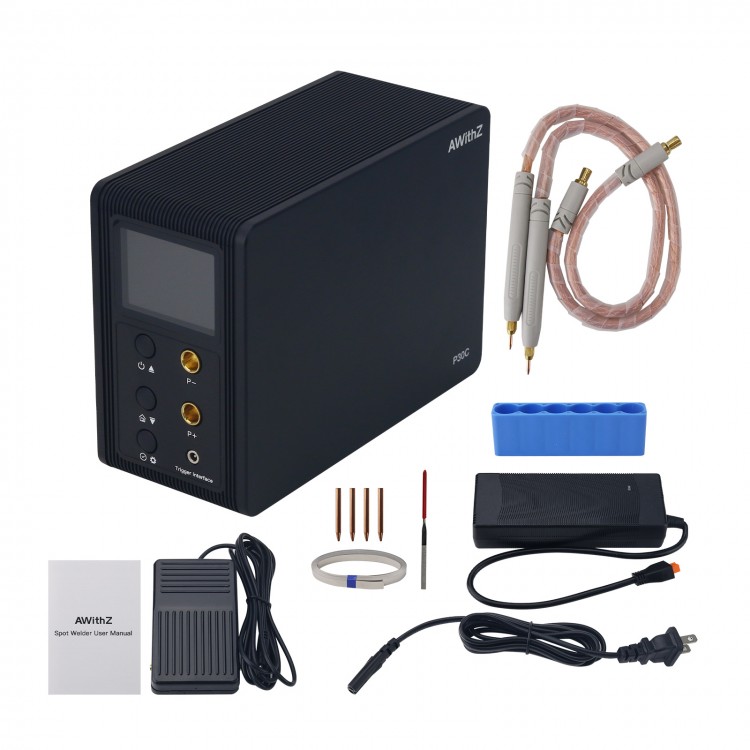

Packing List:
* 1 x Spot Welder
* 2 x Welding Pens
* 6 x Spot Welding Pins
* 1 x File
* 1 x Foot Pedal
* 1 x 5m Nickel Sheets
* 1 x Fast Charging Adapter
* 1 x Holder for 6pcs 18650 Batteries

Packaging Details:
* Weight: 3kg

Note:
* Batteries are not included.
