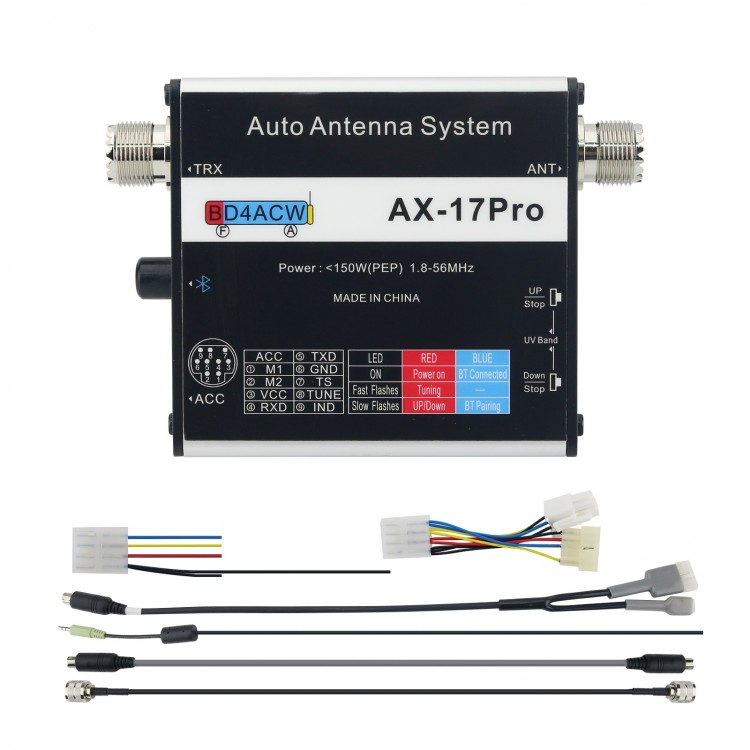

AX-17 Pro Automatic Screwdriver Antenna Controller for ATAS-120A M-120A M-130A and Tarhell Little II

AX-17 Pro Automatic Screwdriver Antenna Controller for ATAS-120A M-120A M-130A and Tarhell Little II

Features:
* Equipped with dedicated tuning data cables for ICOM and YAESU. Adaptable to transceivers for KENWOOD and ALINCO via a 4-pin adapter plug.
* The 2-pin connection line included with the specific data cable (for ICOM) can match Tarhell Little II, SD-330, HD-330, and K-9000.
* Directly drives shortwave mobile antennas ATAS-120A, M-120A and M-130A for automatic tuning.
* Built-in Bluetooth module allows for setting the transceiver and antenna type via an app for Android, and controlling the antenna.
* It supports 12V DC motor for automatic control of electric screwdriver antennas. Suitable for Diamond SD-330, Tarhell Little II, etc.
* ESD and TVS diodes are added to the interface circuit to prevent damage from external static electricity or voltage surges.
* A lightning protection diode is added at the antenna interface.
* Excellent quality: all components are brand new and original, including automotive-grade MCU for MICROCHIP, inductors for TDK, electrolytic capacitors for RBY, Taiwanese HIGHLY illuminated buttons, high-quality signal relays, and chip resistors and capacitors for Samsung and Murata.

Improvements:
* This product has been upgraded to the professional version, maintaining the tuning concept of the AX-17, but with a new design for the new version. The Pro version offers faster and more professional tuning.
* Added 80Ω, 50Ω, 30Ω, and 20Ω impedance-matching ferrite cores. After antenna tuning is completed, the system automatically switches to the optimal impedance, maximizing antenna efficiency.

Controller Mode:
Transceiver Classification:
* In the mode for ICOM on the app: It supports one-key tuning for ICOM, YAESU, KENWOOD, ALINCO, and CODAM shortwave transceivers.
* In general mode on the app: It supports all shortwave transceivers (RF Power ≥3W).

Antenna Classification:
* In voltage antenna mode on the app: It supports ATAS-120A, M-130A, and M-120A (it drives the antenna via voltage changes).
* In RELAY antenna mode on the app: It supports for SD-330 and Tarhell Little II.

Packing List:
* 1 x Automatic screwdriver antenna controller
* 1 x Data cable for ICOM
* 1 x Data cable for YAESU
* 1 x Adapter cable for ICOM to KENWOOD/ALINCO
* 1 x Data interface cable (to be soldered according to your station's wiring definition) for ICOM to other transceiver

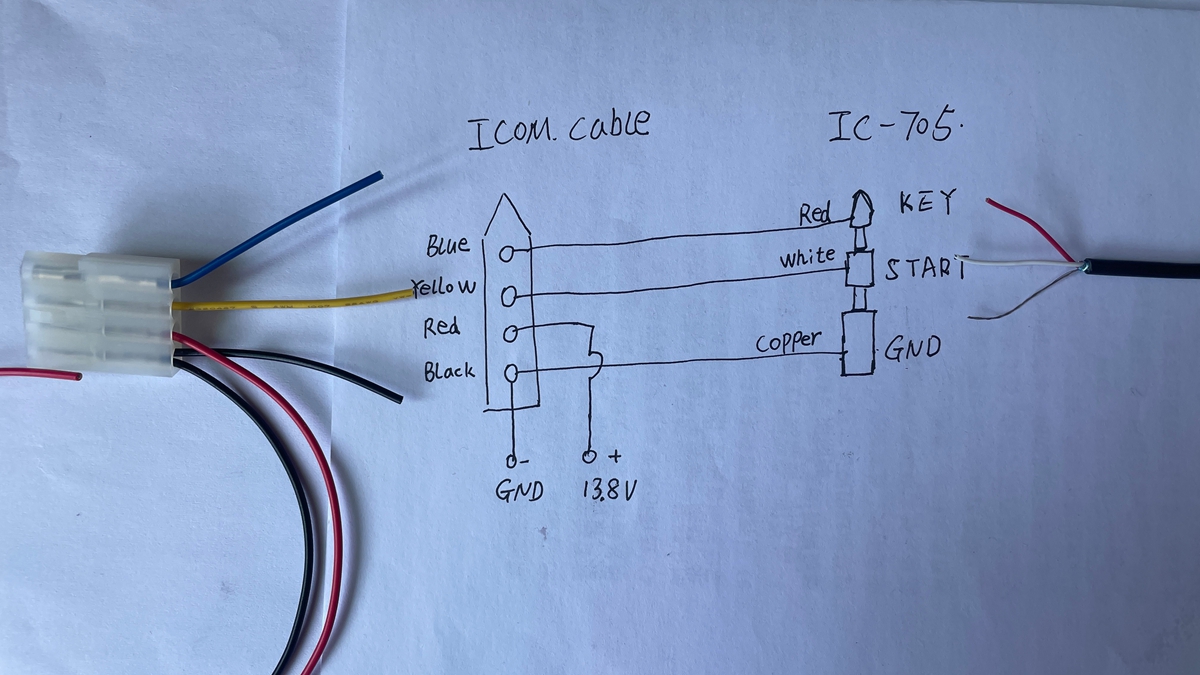

* 1 x Data cable (requires soldering) for ICOM IC-705

Packaging Details:
* Weight: 0.5kg

Note:
* Please contact us after purchase for the English app and the user manual.
