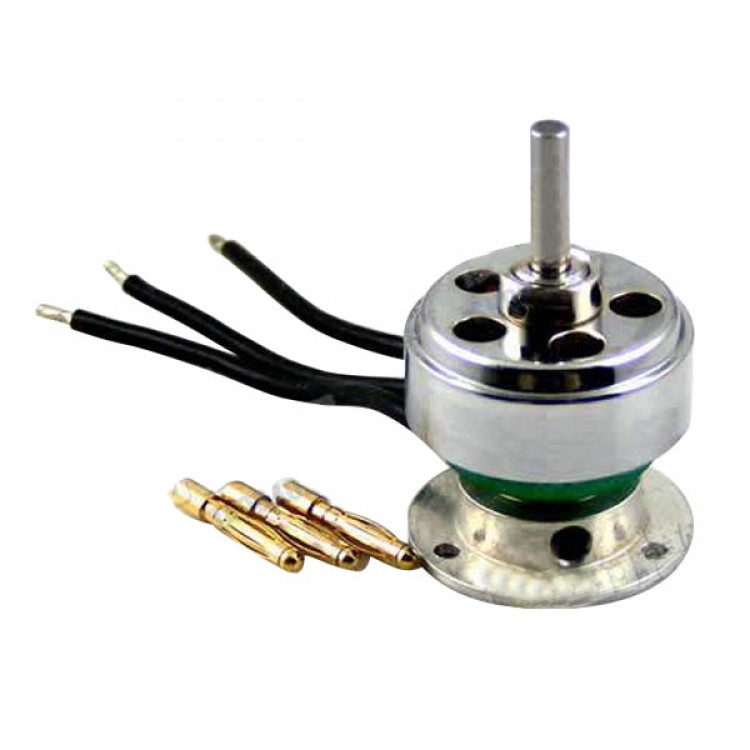

AX 1806N 2100kv Outrunner Brushless Motor 19g for Multicopter 4-Pack
Specfications:.
- Kv: 2100rpm/v
- Lipo Range: 2-3 cell
- Suggested prop: 5x3 ~ 6x3
- Best current range: 3~7A
- Weight: 19g
- Shaft: 3mm
- Stator: 18 x 6mm
- Battery: 11.5v
- Current: 7.2A
- Propeller: 5x3
- Thrust: 337g
- Speed: 18570rpm
| Test propeller | Voltage | Current | Power | Pull | RMP | Efficiency |
| AX 5×3 | 11.5 V | 6.7A | 77.05W | 325g | 18337 | 4.22g/W |
| GWS 8040 | 7.6V | 9.3A | 70.68W | 365g | 8654 | 5.16g/W |
| GWS 0843 | 7.6V | 10.1A | 76.76W | 360g | 7950 | 4.69g/W |
| AX 8×3.8 | 7.6V | 11.1A | 84.36W | 350g | 7180 | 4.15g/W |
| GWS 6030 | 7.6V | 4.9A | 37.24W | 227g | 12300 | 6.10g/W |
| GWS 7035 | 7.6V | 6.2A | 47.12W | 285g | 11213 | 6.05g/W |
