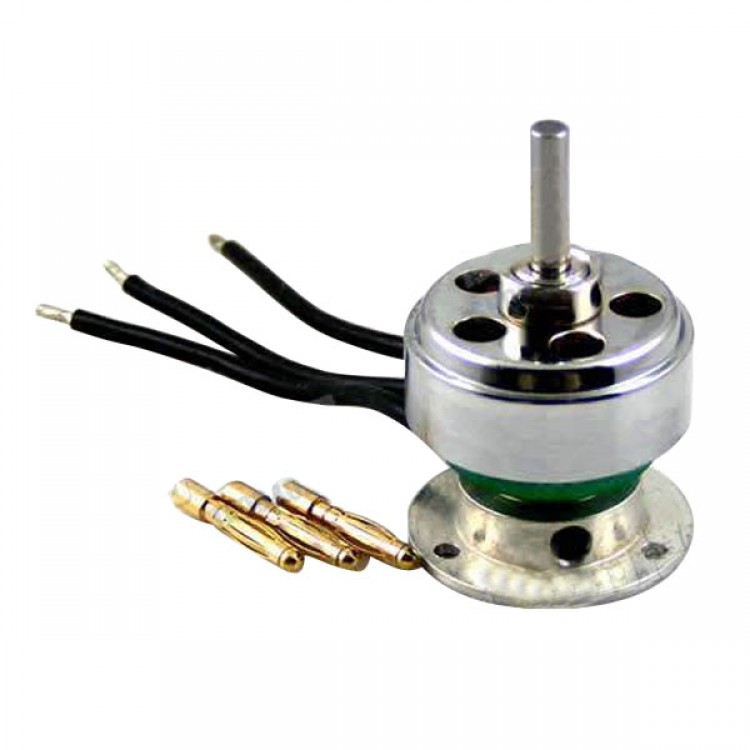

AX 1806N 2500kv Outrunner Brushless Motor 19g for Multicopter 4-Pack
Specfications:.
- Kv: 2500rpm/v
- Lipo Range: 2-3 cell
- Suggested prop: 5x3 ~ 4x2.5
- Best current range: 3~7A
- Weight: 19g
- Shaft: 3mm
- Stator: 18 x 6mm
- Battery: 11.5v
- Current:6.5 7.0A
- Propeller: 5x3
- Thrust: 296g
| Test propeller | Voltage | Current | Power | Pull | Rpm | Efficiency |
| AX 5×3 | 7.6V | 6.5A | 49.4W | 251g | 16010 | 5.08g/W |
| 4×2.5 | 11.5V | 7.0A | 80.5W | 296g | 25160 | 3.68g/W |
