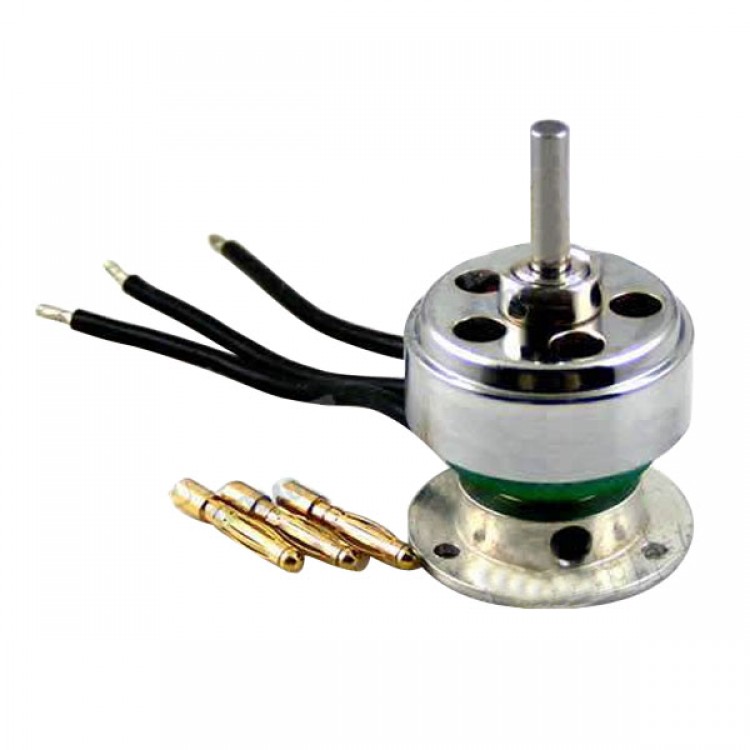

AX 1806N 3500kv Outrunner Brushless Motor 19g for Multicopter 4-Pack
Specfications:.
- Kv: 3500rpm/v
- Lipo Range: 2-3 cell
- Suggested prop: 5x3
- Best current range: 3~7A
- Weight: 19g
- Shaft: 3mm
- Stator: 18 x 6mm
- Battery: 7.6v
- Current: 11A
- Propeller: 5x3
- Thrust: 320g
- Speed: 19695rpm
| Test propeller | Voltage | Current | Power | Pull | RMP | Efficiency |
| AX 5×3 | 7.6V | 11A | 82.1W | 320g | 19695 | 4.14g/W |
