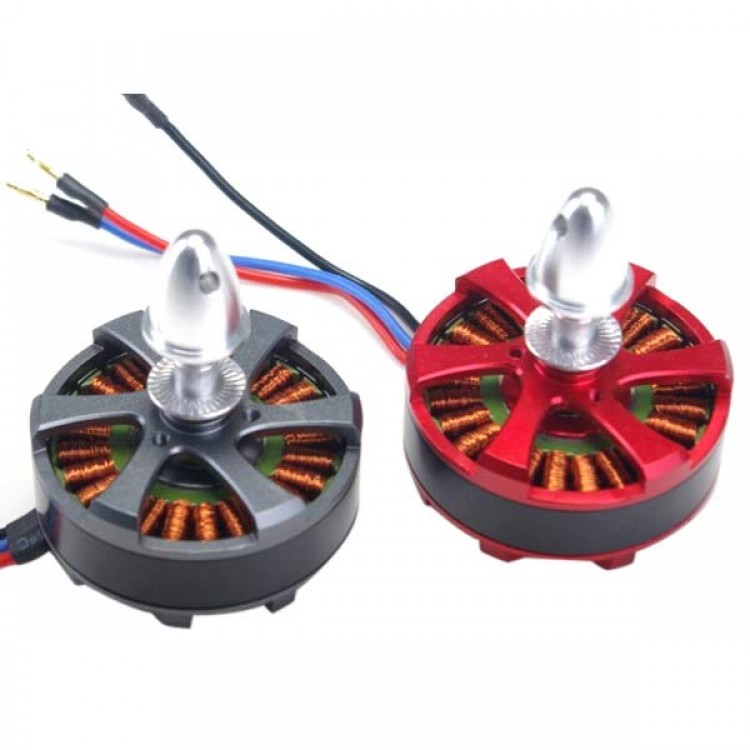

AX-4008Q 420KV Brushless Disk Motor Design for Multicopter Quadcopter
Specfication:
- Model: AX-4008Q
- 420KV
- Design for Multicopter
- Color:Red
- Dimentions: Ð:45.3×23mm(22.8mm)
- Shaft Diameter: Ð:4mm
- Weight: 94g
- Used for 12-14 propoller
Specfication:
| Type | AX-4008D(/Q) | |||||
| 24N ,22 P | ||||||
| Test Propeller | Voltage(V) | Current(A) | Power(W) | Thrust(g) | (RPM) | (g/W) |
| GWS 9050 | 11.5 | 4.5 | 51.75 | 407 | 6690 | 7.86 |
| 15 | 7 | 105 | 665 | 8512 | 6.33 | |
| GWS 1047 | 11.5 | 8.3 | 95.45 | 700 | 6250 | 7.33 |
| 15 | 12.9 | 193.5 | 1129 | 7810 | 5.83 | |
| GWS 1060 | 11.5 | 6.5 | 74.75 | 545 | 6440 | 7.29 |
| 15 | 10.1 | 151.5 | 855 | 8109 | 5.64 | |
| 10X4.5 | 11.5 | 8.3 | 95.45 | 695 | 6298 | 7.28 |
| 15 | 12.9 | 193.5 | 1081 | 7825 | 5.59 | |
| 12X4.5 | 11.5 | 12.7 | 146.05 | 942 | 5695 | 6.45 |
| GWS 1147 | 15 | 17 | 255 | 1431 | 7310 | 5.61 |
| 11.5 | 10.9 | 125.35 | 910 | 5905 | 7.26 | |
Package including: 1pcs 420kv outrunner brushless Motor red
