AX58100 Development Board Core Board IO Test Board ADC/Motor Adapter Board for EtherCAT Slave

AX58100 Development Board Core Board IO Test Board ADC/Motor Adapter Board for EtherCAT Slave

Module Description:
A. Technology for EtherCAT is today's mainstream Fast Industrial Ethernet solution and the advanced core technology of industry 4.0 intelligent manufacturing. There are two basic frameworks for realizing this scheme: master station + slave station;
B. The core board adopts the latest AX58100 chip, which can replace ET1100/LAN9252;
C. The AX58100 core board can quickly complete simple applications such as high-speed IO control/ADC without an external MCU. It can also build complex applications by connecting an external MCU;
D. The control IO related to the AX58100 core board is all externally connected, which can realize different application expansion;
E. There are abundant external expansion boards IO/ADC/stepper motor/BDLC motor control, which are fully compatible with official examples, and the supporting MCU expansion board is also under development;
F. Provide technical support.

AX58100 Slave Chip:

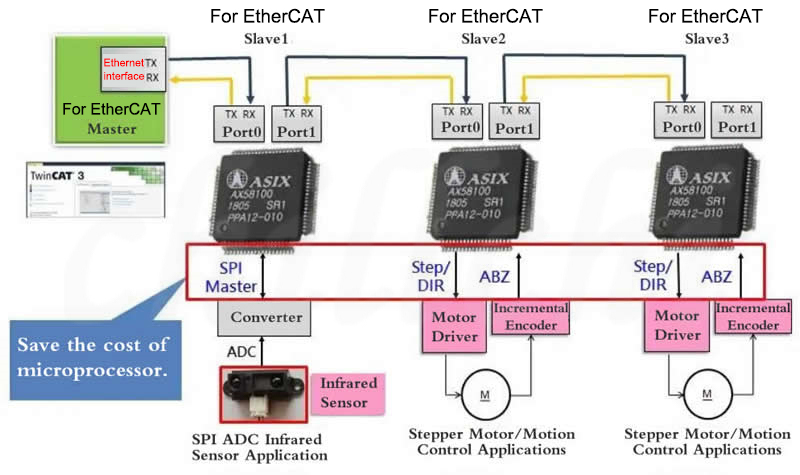

AX58100 has integrated two high-speed Ethernet PHY that can support both fiber and copper network applications and supports some additional control interfaces such as pulse width modulation (PWM) interface, incremental (ABZ)/Hall encoder interface, SPI Master interface, 32 digital control I/O, I/O watchdog, emergency stop input and more. It allows customers to easily design the AX58100 in a variety of industrial Ethernet field-bus product applications for EtherCAT without the need for additional microprocessors.

For existing traditional field-bus products, AX58100 provides two process data interfaces (PDI), local bus interface and SPI Slave interface. Customers can easily support slave functions for EtherCAT by connecting the AX58100 to the microprocessors of legacy field-bus products through these interfaces.

AX58100 provides customers with a simple design, cost-effective industrial Ethernet slave solution for EtherCAT, which can be applied to various real-time automatic control products, such as industrial automation, motor/motion control, digital I/O control, analog-to-digital converters ( ADC) / digital-to-analog converter (DAC) control, sensor data acquisition, robot shaft control, etc.

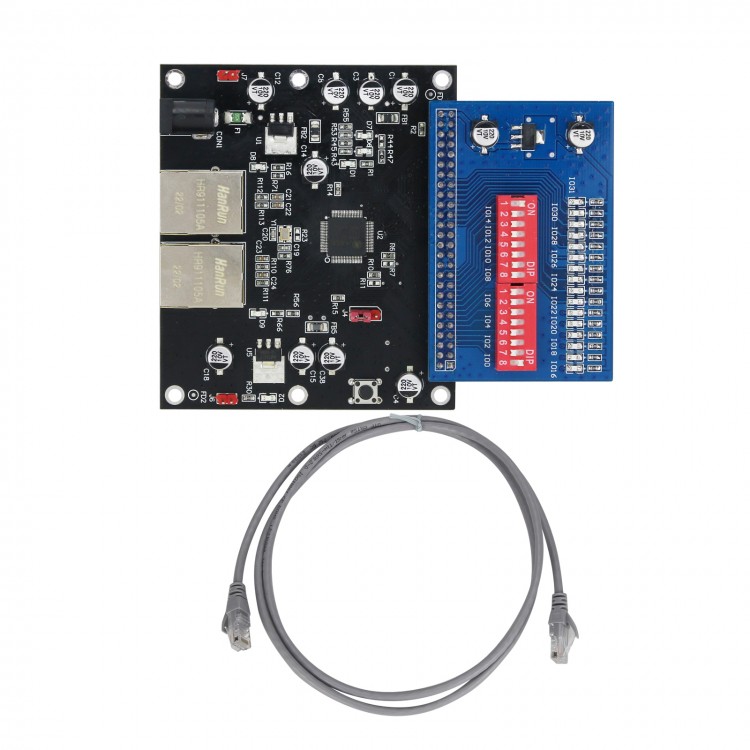

Package Included:
- 1 x Development Board
- 1 x Ethernet Cable
- 1 x DC Cable

Note:
- Schematics, official examples and other materials are provided.
- If its supporting AC to DC5V2A switching power supply (CCC certification) is needed, please contact us to pay for extra costs. Thank you!
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
