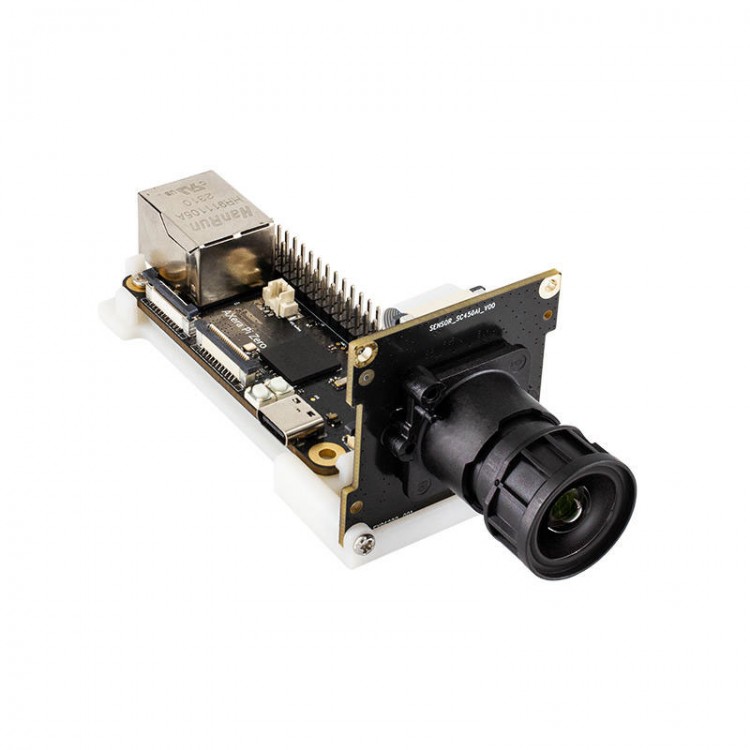

AXera PI Zero Module 5MP AI-ISP Camera Module Designed with SoC Chip AX620Q+SC450AI Image Sensor

AXera PI Zero Module 5MP AI-ISP Camera Module Designed with SoC Chip AX620Q+SC450AI Image Sensor

Description:
AXera Pi Zero is equipped with the fourth-generation intelligent vision chip AX620Q. The chip integrates a new generation of SmartEye 4.0 AI-ISP, which supports 5MP at 30fps real-time "true black light". Even in extremely low illumination conditions, it realistically reproduces the picture. At the same time, it integrates a new generation of Tongyuan 4.0 high-performance, scene-optimized NPU, making the product industry-leading in terms of low power consumption, high image quality, intelligent processing and analysis.

A stable and easy-to-use SDK software development kit is provided, making it convenient for users to conduct low-cost evaluation, secondary development and rapid mass production. It enables users to get more value out of smart home applications and other AloT projects.

SmartEye 4.0 AI-ISP: AI-ISP is a combination of deep learning algorithms and traditional ISP processing units, using pixel-level AI processing technology. In complex application scenarios, it comprehensively improves the imaging effect and provides high-quality image and video materials for post-intelligent processing. As the "eye" of all things, it can perceive more information, especially the need for full color in dim light.

It supports the deployment of multiple models: The mixed-precision NPU lays a good foundation for the application of large models on the edge side and the end side.

Advantages:
- Dual ARM Cortex-A53
- RISC-V MCU
- 256MB LPDDR4X
- Camera interface: MIPI CSI 4-lane
- 4th generation AI-ISP inputs 5MP at 30fps
- 4th generation NPU: 2.4TOPs at int8; supports int4/int8/int16

Specifications:
- SOC chip: AX620Q
- Processor: 2xArm Cortex-A53 at 1.2GHz
- ISP capability: up to 5MP at 30fps, AI-ISP&T-ISP, and supports 3A, AI-3DNR, AIRLTM, 2fps HDR, image enhancement, haze removal and fisheye correction
- AI capability: 9.6TOPs at INT4 and 2.4TOPs at INT8
- Operating system: for Linux
- Deep learning framework: supports the deployment of models such as ONNX, PyTorch, Caffe, and PaddlePaddle
- Video encoding capability: H.264/H.265, 5MP at 30fps+1080P at 30fps+720P at 30fps
- Video decoding capability: H.264, 1080P at 60fps
- Image encoding and decoding capability: JPEG, encoding 5MP at 40fps, decoding 1080P at 60fps
- Other functions: support CBR/VBR/AVBR/CVBR multiple bit rate control modes and support 8 ROI encoding
- Memory: SIP 256MiB LPDDR4X
- Storage: SPI NAND 256MiB
- CSI camera interface: 1 x MIPI CSI 4-lane
- DSI screen interface: 1 x MIPI DSI 4-lane
- Network interface: 1 x 10/100 RJ45 network port
- External interface: 1 x USB2.0, RTC battery port (battery is not included)
- GPIO interface: GPIO x 22, including debug serial port, ADC x 1
- Debugging interface: 2 x Buttons (BOOT and RESET)
- Power supply interface: DC 5V (USB power supply)
- Operating temperature: -40°C to 85°C
- Typical: 1.2W
- Dimensions: 65mm x 30mm/2.6" x 1.2"

Github:
https://github.com/AXERA-TECH/ax-samples/

Package Included:
- 1 x Camera module

Packaging Details:
- G.W.: 0.3kg

Note:
- Screen, expansion board and battery are not included.
