AZ77535 Handheld CO2 Meter Carbon Dioxide Detector with Carry Box for CO2 Temperature and Humidity

AZ77535 Handheld CO2 Meter Carbon Dioxide Detector with Carry Box for CO2 Temperature and Humidity

Application:
The AZ77535 portable CO2 detector could measure the indoor air quality index, including the CO2 concentration, CO2 level, CO2 level, air temperature, dew point, wet bulb temperature and humidity. The Carbon Dioxide value can be output to PC for on-line analysis. The CO2 sensor can be calibrated easily in the fresh air, and the RH sensor could be calibrated with AZ 33%/75% salt bottle.

The device could be used as the CO2 checker for the air quality index in all workspace, office, hospital, school, station or home. It can be calibrated easily in the fresh air and its back light function could let user operate in the dark area. The AZ77535 is your best choice as the indoor air quality (IAQ) testers.

Poor indoor air quaintly is considered unhealthy because it causes tiredness, loss of ability to concentrate, and even illness (ex: sick building syndrome). IAQ monitoring and survey, especially on CO2 level and air ventilation become widely applied in public areas such as office, classroom, factory, hospital, work space, residential, commercial building and hotels. It is also suggested in regulations of industrial hygiene in some countries.

Features:
* Design with NDIR (Non-Dispersive Infrared) wave guide technology sensor
* Triple displays of CO2 level, temperature and humidity
* Data output to PC every 2 seconds for on-line analysis
* Display 8 hrs TWA value (time-weighted average) & 15 minutes STEL value (short-term exposure limit)
* Housing design surrounds with rails to help air ventilation for quick and accurate response
* Easy manual calibration on CO2 and humidity (with AZ salt bottle)
* Dual display 2 parameters simultaneously: CO2 and temperature
* Audible carbon dioxide level warning alarm
* Big LCD display with high resolution
* Back light for working in dark area
* Battery and adaptor power supply
* PC connect via USB interface

Specifications:
* Model: AZ77535
* CO2 Range: 0~9999 ppm (5001~9999 ppm out of scale range)
* CO2 Resolution: 1 ppm
* CO2 Accuracy: ±30 ppm ±5% of reading (0~5000 ppm), and other range are not specified
* CO2 Response Time: ＜30 Seconds (90% step change)
* CO2 Warm-up Time: 30 Seconds
* Air Temperature Range: -10 to 60℃, 14~140℉
* Air Temperature Resolution: 0.1℃, 0.1℉
* Air Temperature Accuracy: ±0.6℃, ±0.9℉
* Air Temperature Response Time: ＜2 mins (90% step change)
* Humidity Range: 0.1~99.9% RH
* Humidity Resolution: 0.1% RH
* Humidity Accuracy: ±3%RH (at 25℃, 10~90%RH); others ±5%RH
* Humidity Response Time: ＜10 mins (90% step change)
* LCD Size: 44(L) * 26(W) mm
* Meter Size: 205(L) * 70(W) * 56(H) mm
* Operating Temperature: 0~50℃
* Operating RH%: 0~95% RH (avoid condensation)
* Storage Temperature: -20~50℃
* Storage RH%: 0~90% RH (avoid condensation)
* Weight: ~200g

Package Included:

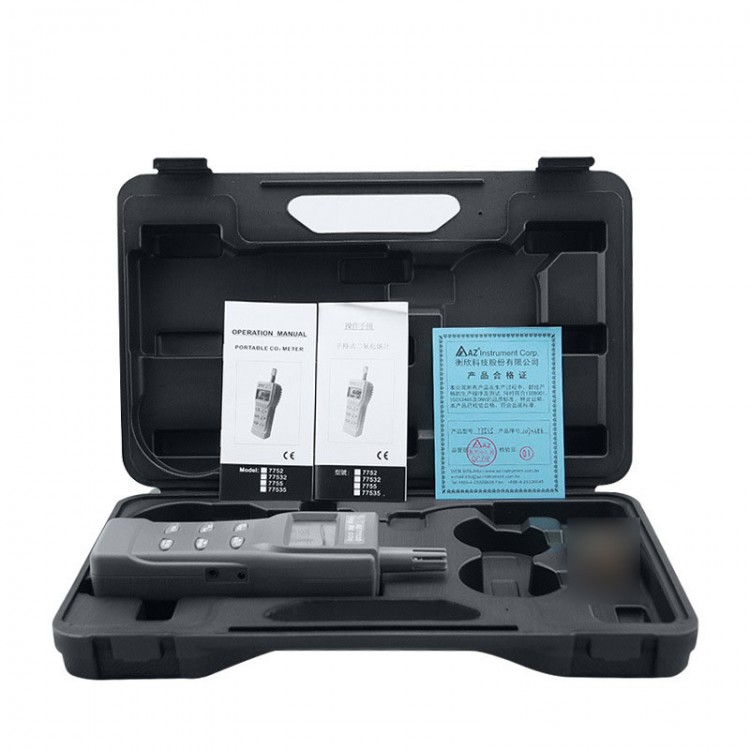

* 1 x Set of CO2 Detector

Packaging Details:
* Weight: 2KG

Note:
* 4pcs AA alkaline batteries are not included.
