| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $47.58 | $46.61 | $45.15 | $43.21 | Contact US |

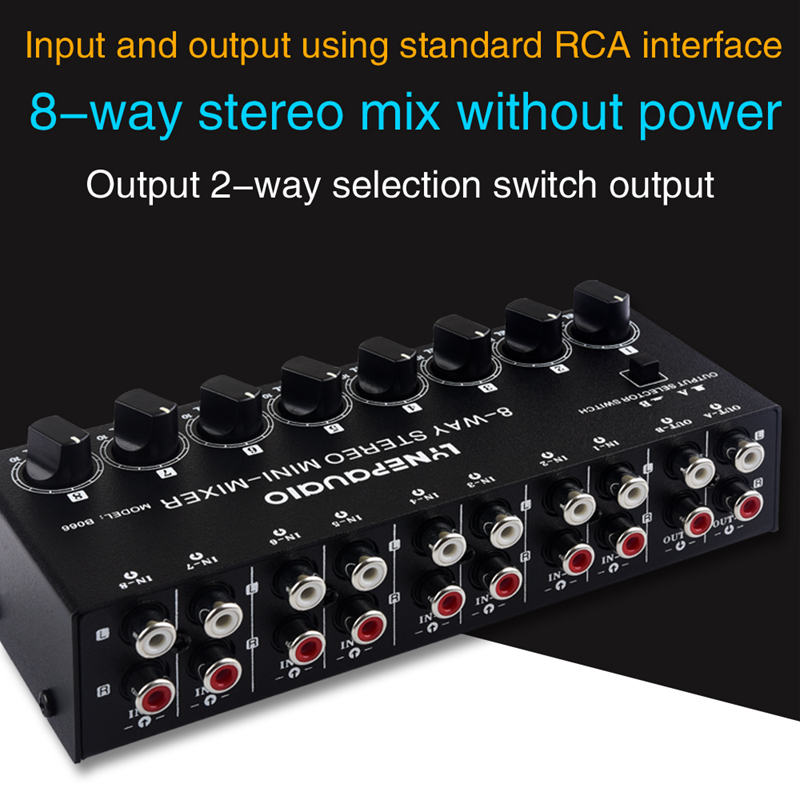

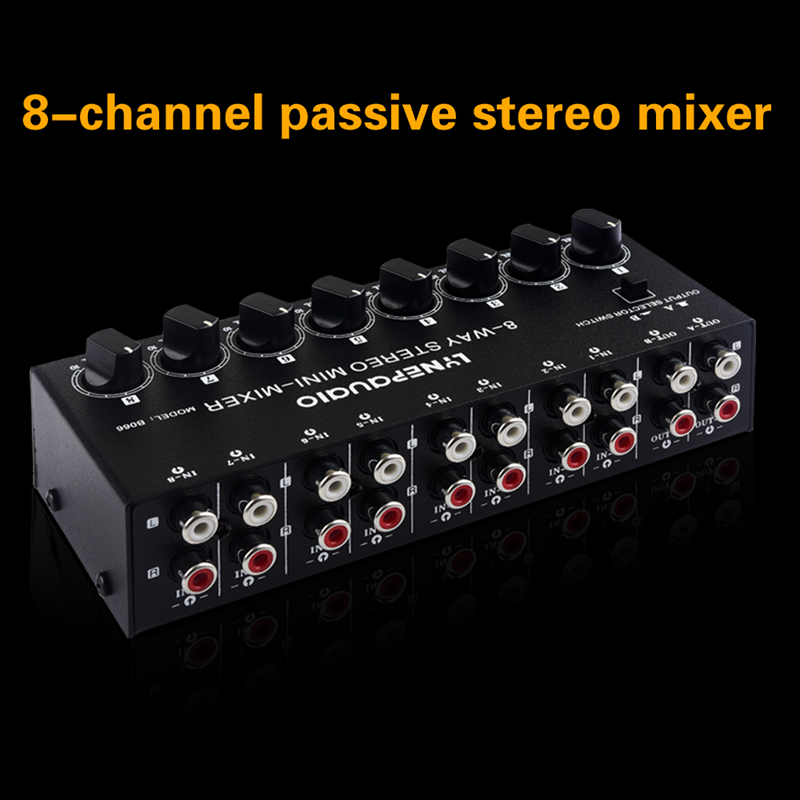

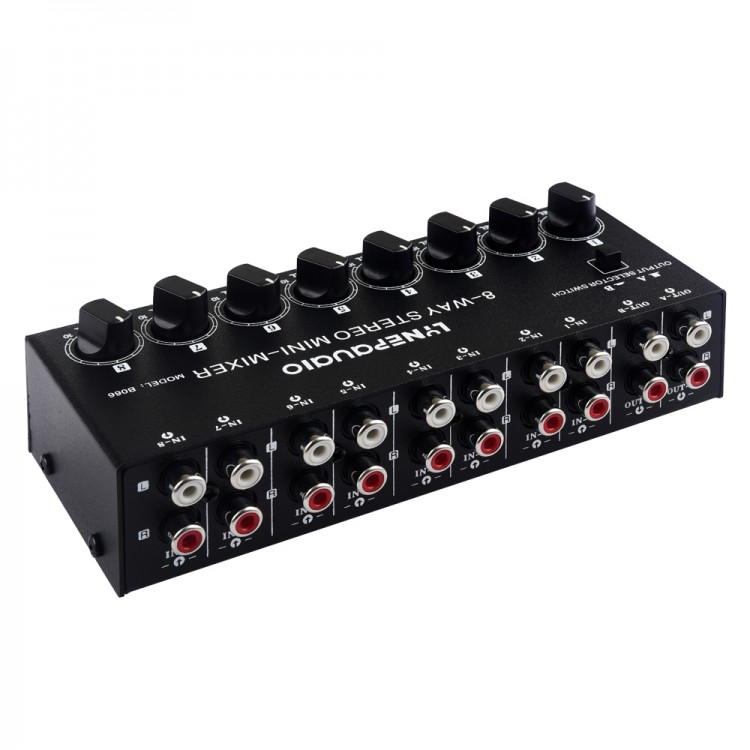

B066 Mini 8-Way Stereo Audio Mixer Passive Sound Mixer with RCA Ports No Power Supply Needed
Features:

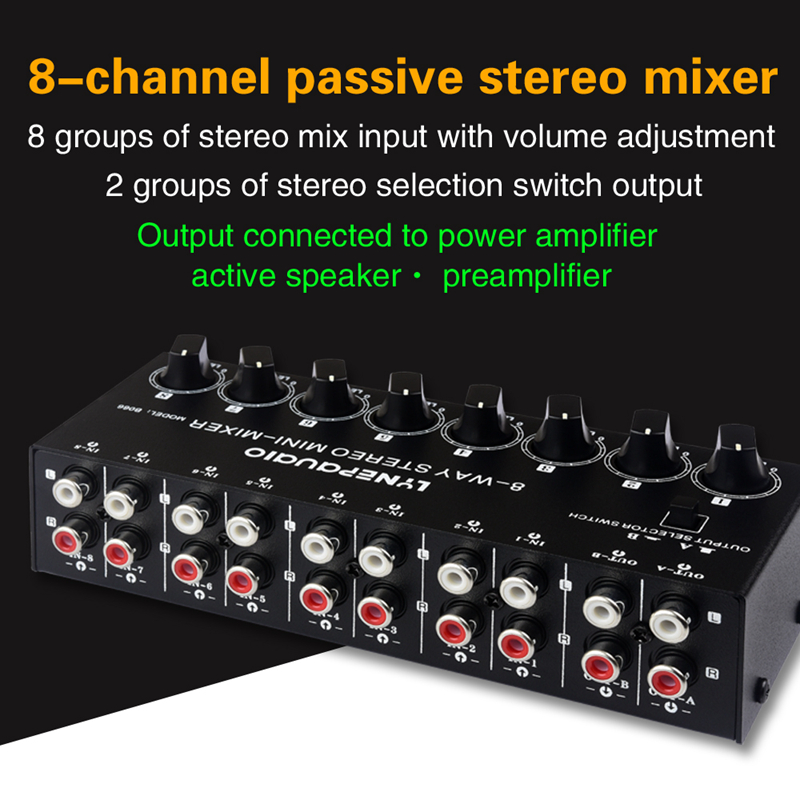

- 8-way passive stereo mixer

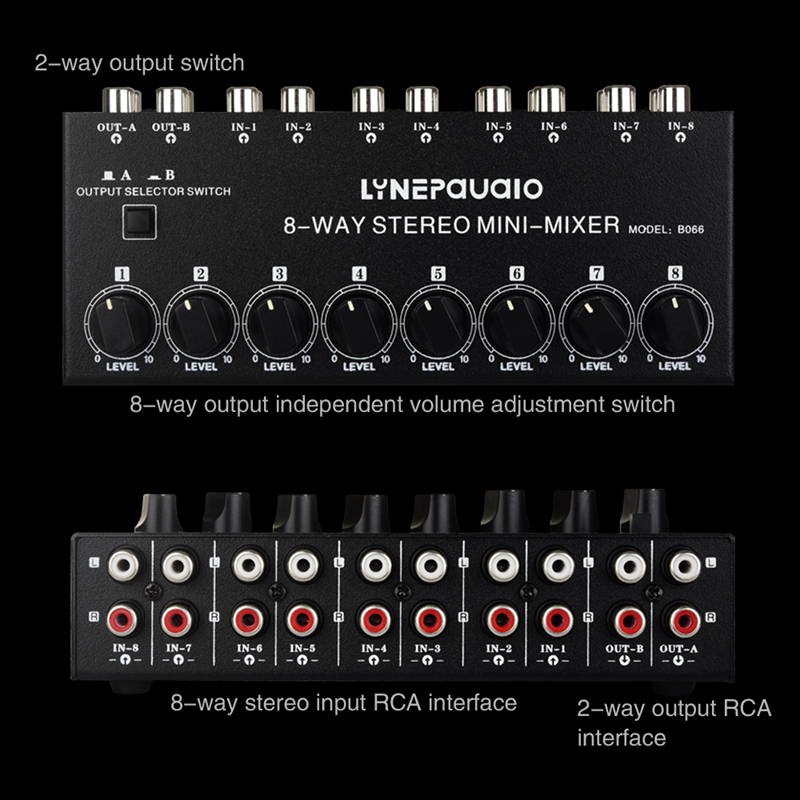

- 8 groups of stereo mixing input with separate volume control
- 2 groups of stereo outputs for switching
- Output ports connect to power amplifier, active speakers, and preamplifiers and mixing consoles
- Input and output adopt standard RCA ports
- No external power supply needed; plug and play
- Lossless input and output
- Metal shell and compact size make it fit all systems and all kinds of playing devices and active speakers
- Adopt passive design architecture
- Used to expand the device interface to control mixers, mixers, CD players, tape players, computers, mobile phones and tablets, etc.
Specifications:
- Model: B066

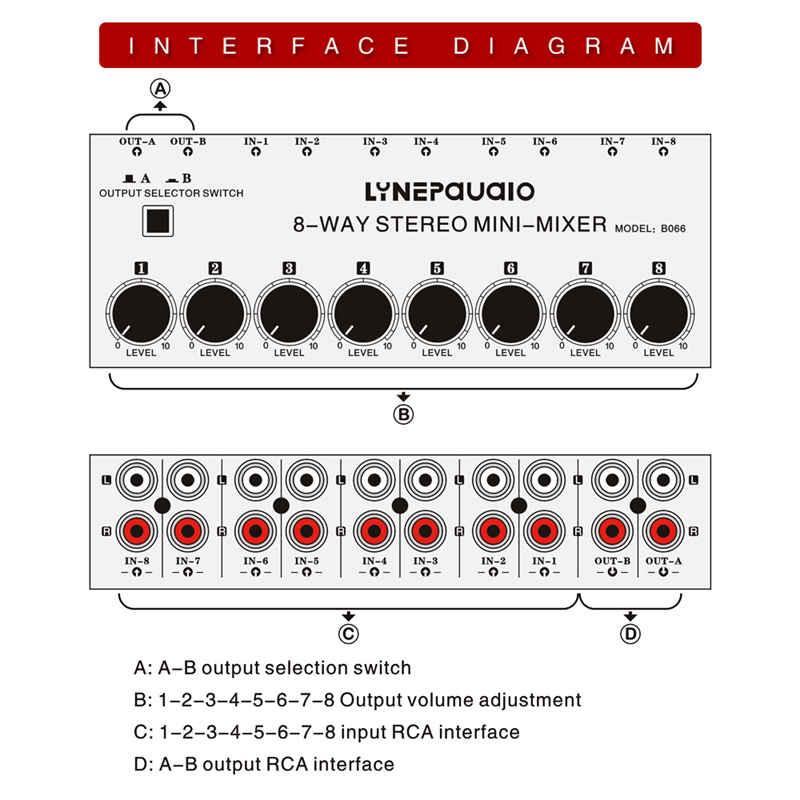

- Input channel: support 8 groups of stereo mixed input at the same time
- Output channel: support 2 groups of stereo selection output (only one group can be used at a time)
- Output switching: 2-gear self-locking switch
- Output gain: -12dB
- Output loss: <0.01dB
- Input impedance: 10KΩ-47KΩ
- Output impedance: 2.5KΩ-10KΩ
- Input and output interface: standard RCA interface
- Material: metal shell
- Power supply: no need for external power supply; just plug and play

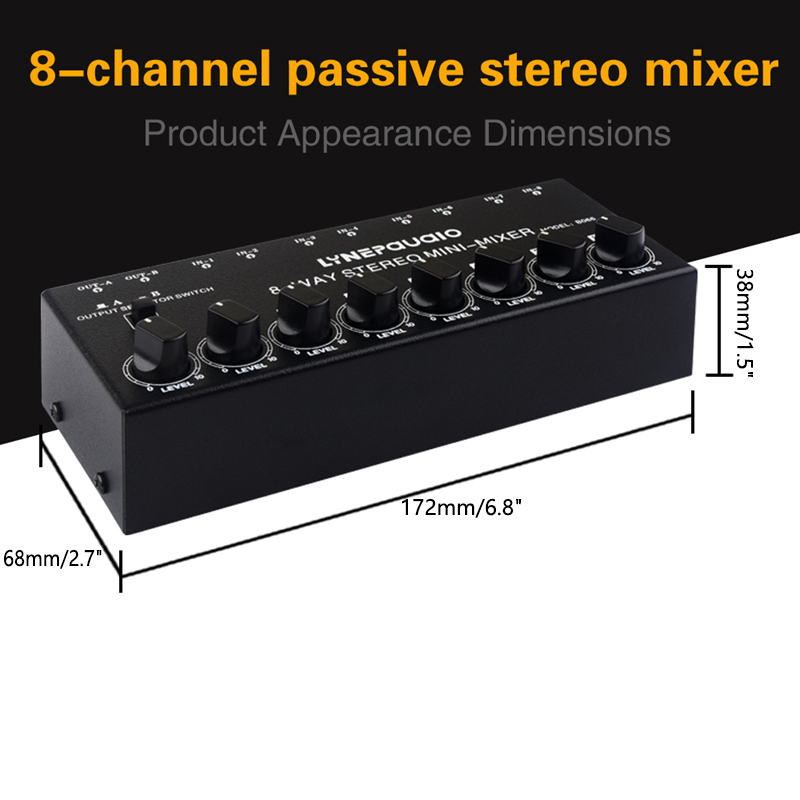

- Dimensions: 172 x 68 x 38mm/6.8 x 2.7 x 1.5" (LxWxH)
- Net weight: 420g/0.9lb
Package Included:
- 1 x Stereo Mixer
Note:
- RCA cable is not included.
