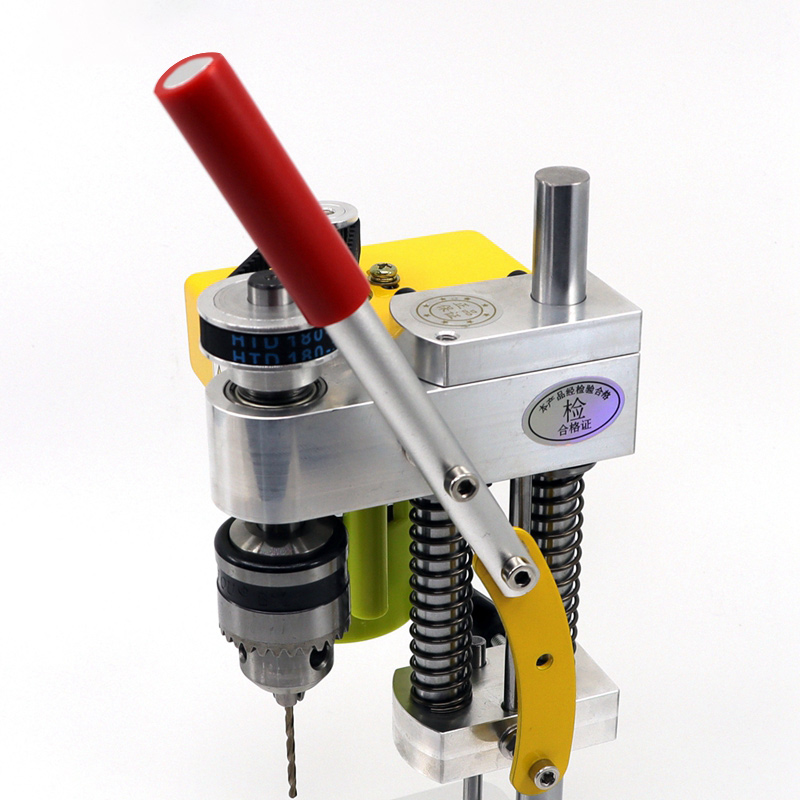

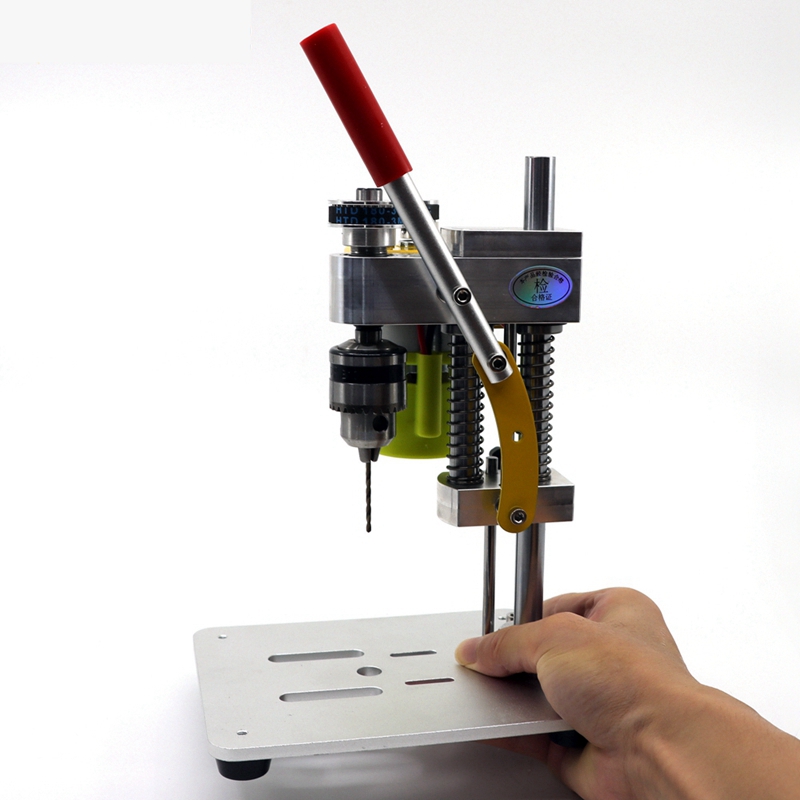

B10 CNC795 Motor without Power Supply Drilling Machine Portable Benchtop Mini Driller DIY Crafts Tools
Description:

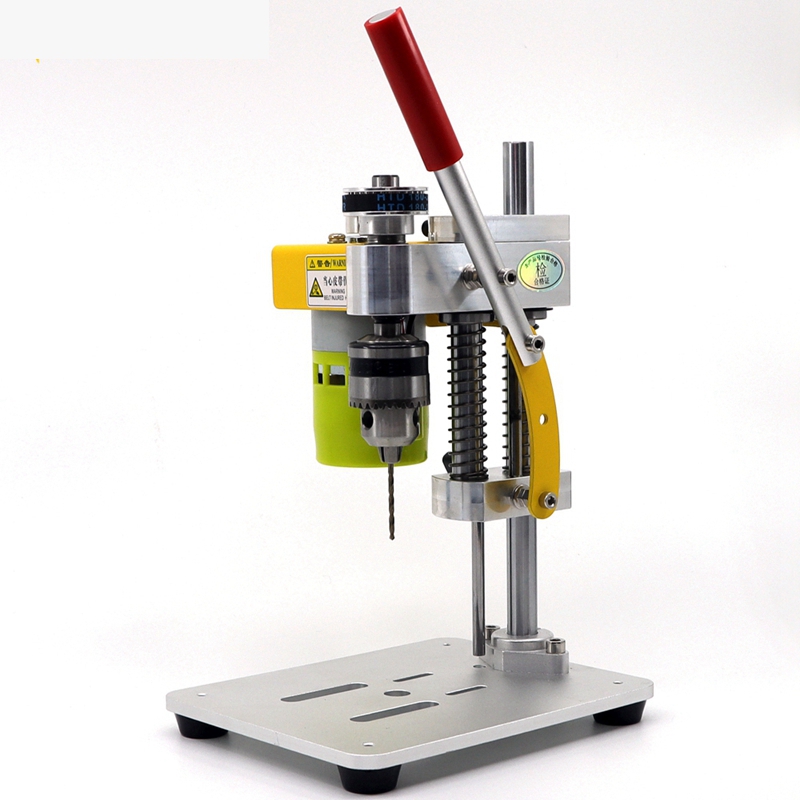

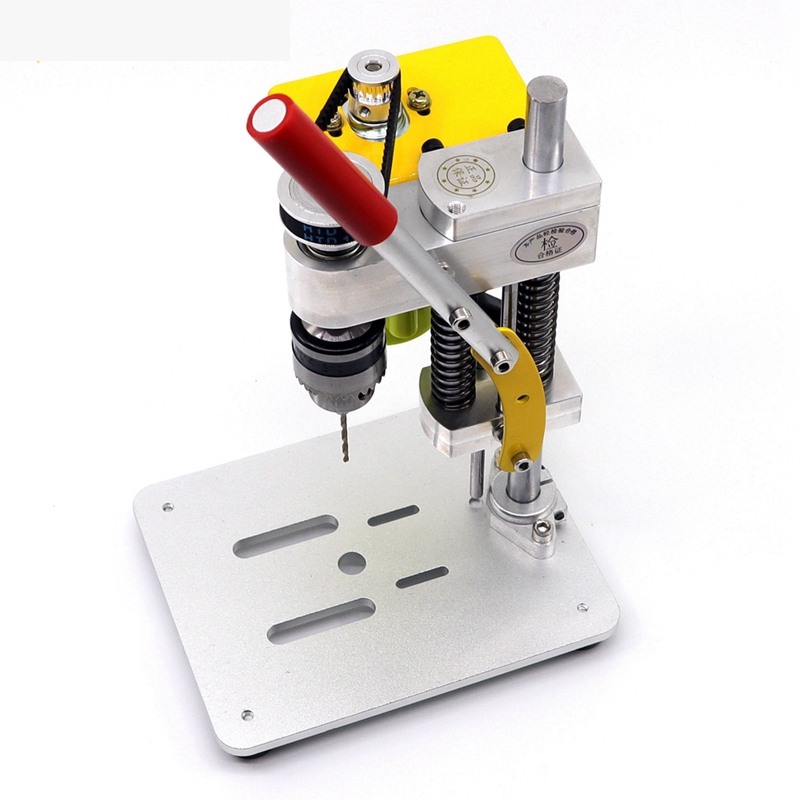

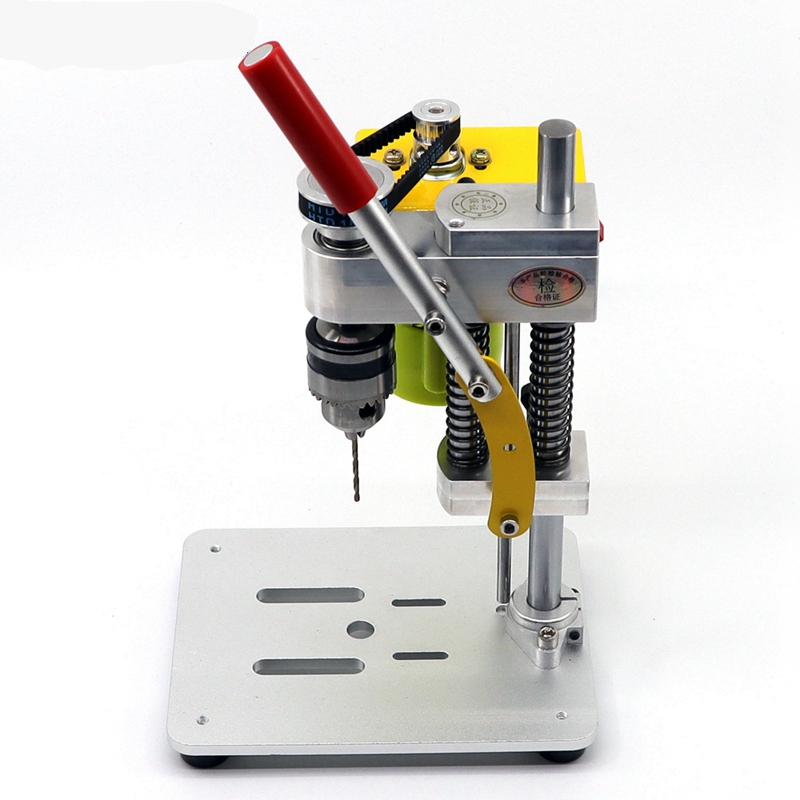

- This mini drill press machine has solid metal structure, 795 DC motor ensure strong and precision drilling capacity. It is equipped B10 drill chuck compatible for 0.6-6mm HSS drill bits. It has 3 metal axis, 2 liner bearings, dual spring and limit lever easy to operation ideal for wood, plastic plate, resin plate, aluminum and another soft material drilling. Compatible size and low noise enable you to use it at home for your DIY projects. Add-on expansion design with two type slots on the base enable you to install the mini bench vise or CNC sliding table for your CNC drilling projects.
Features:

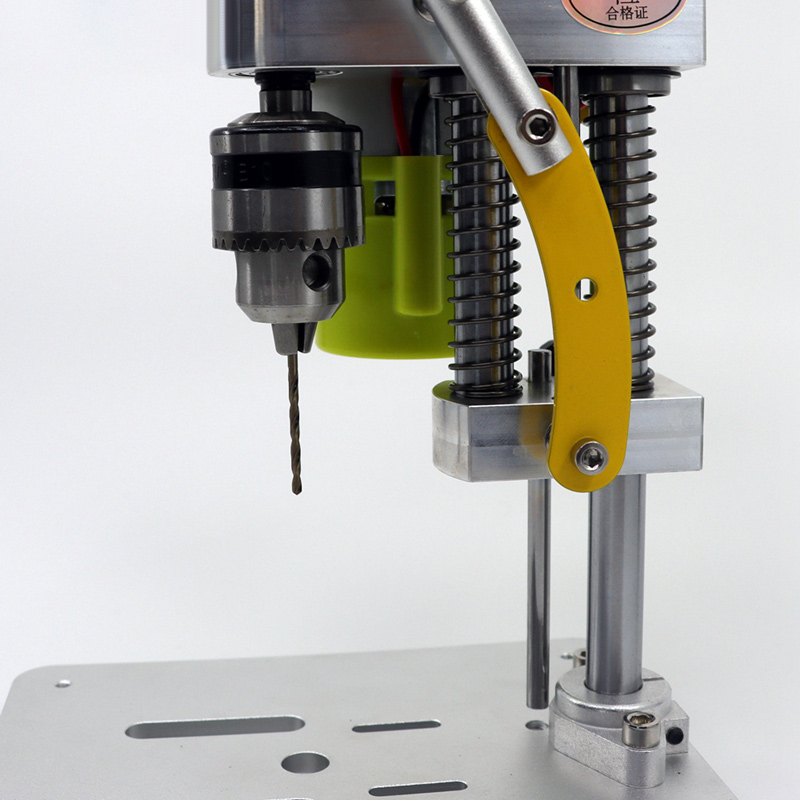

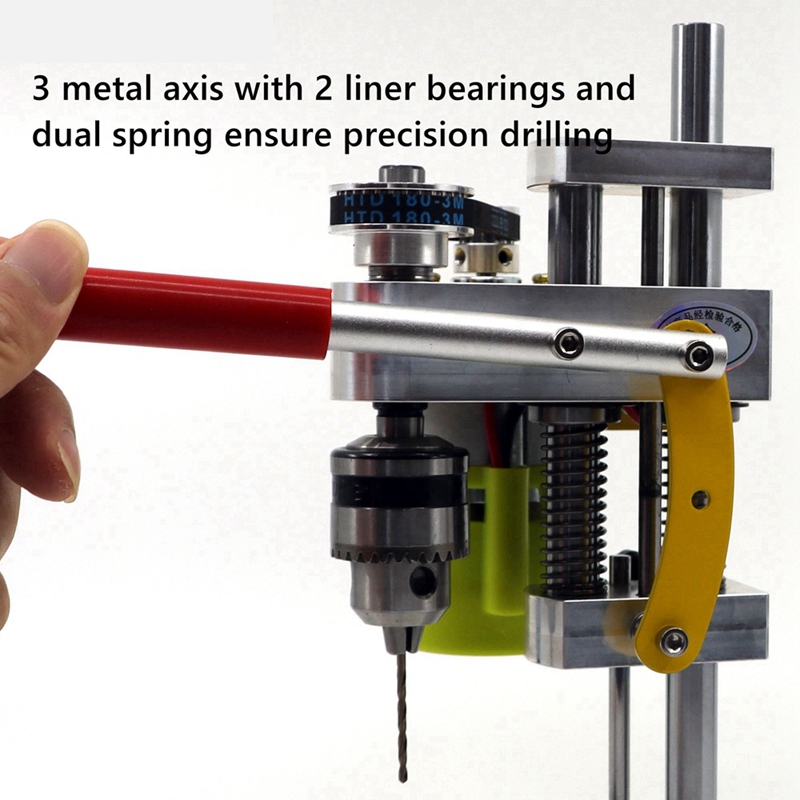

- Solid metal structure with 3 metal axis, 2 liner bearings, dual spring ensure precision drilling
- 795 DC motor proving max. 7000RPM speed ensure strong and precision drilling capacity

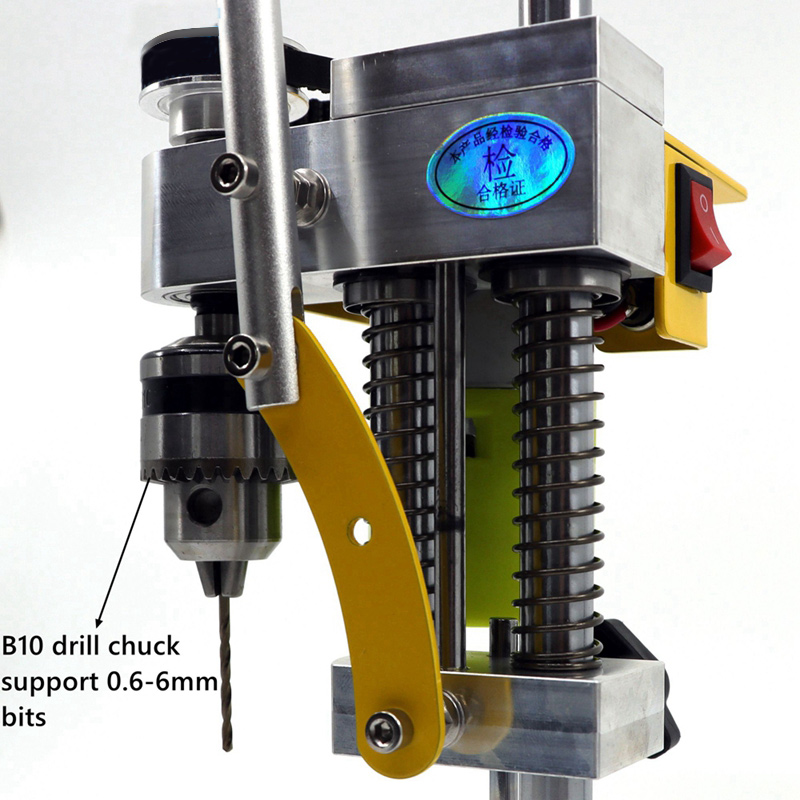

- B10 drill chuck compatible for 0.6-6mm HSS drill bits for wood, plastic plate, resin plate, aluminum and another soft material drilling

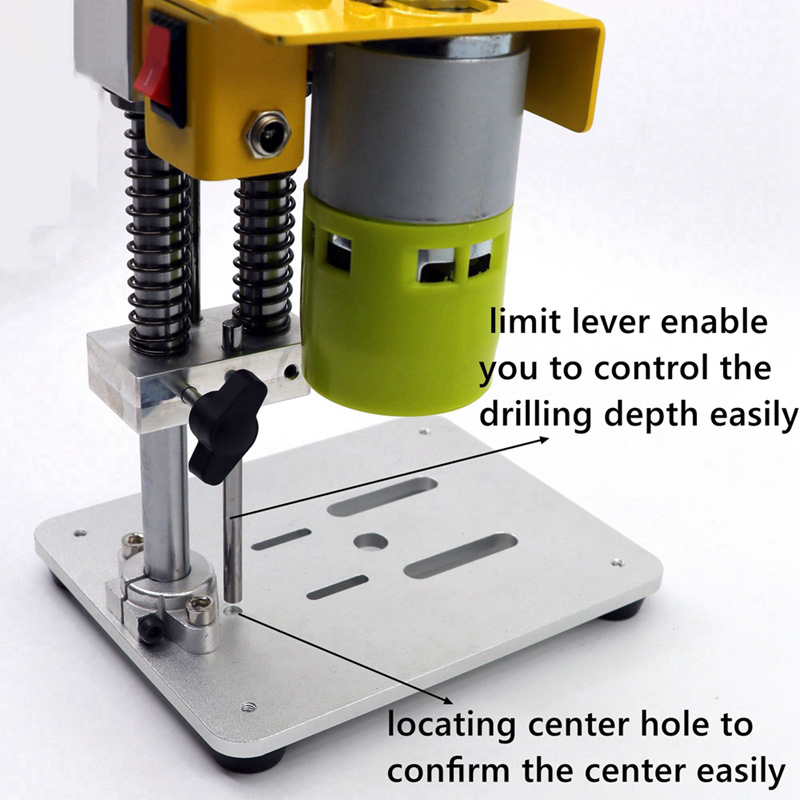

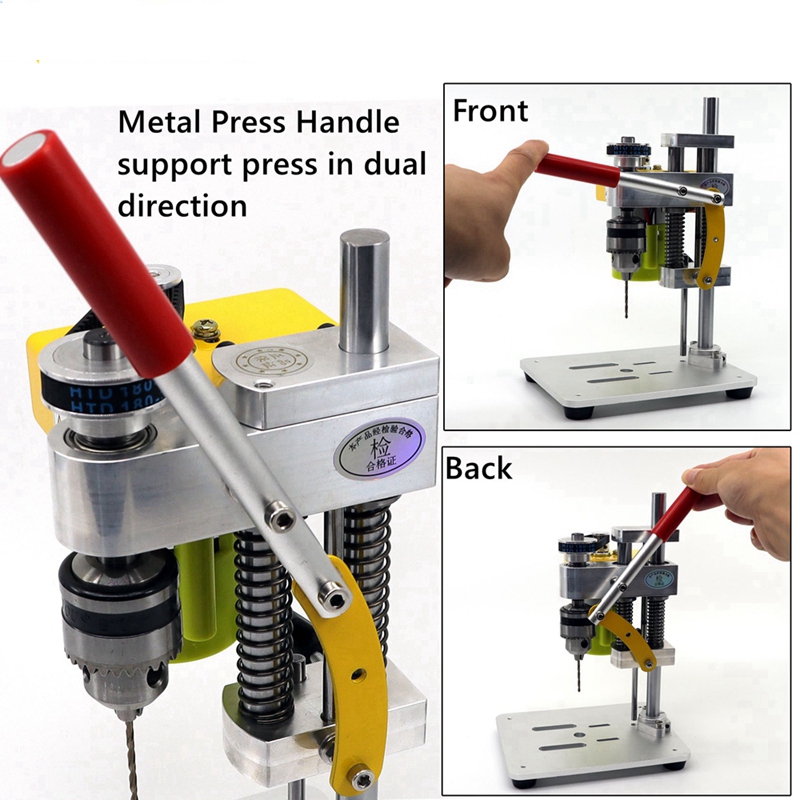

- Equipped with limit lever enable you to control the drilling depth easily
- Alignment hole on the base enable you to locate the drilling center on the base easily (after adjust the pressing height, just loosen the limit lever, make sure it will drop down to the hole which means the bit is at the base center)

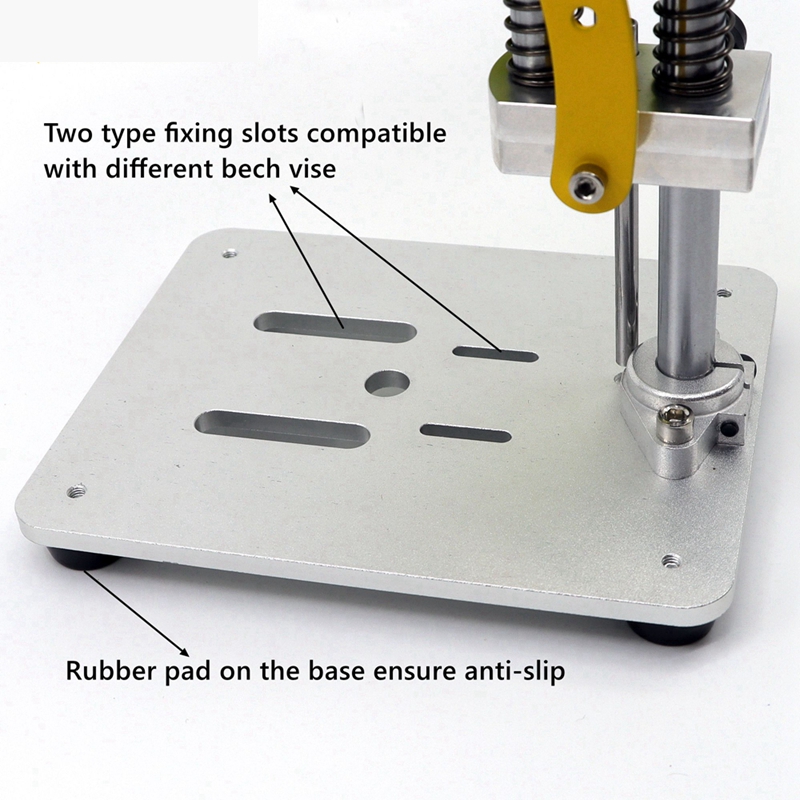

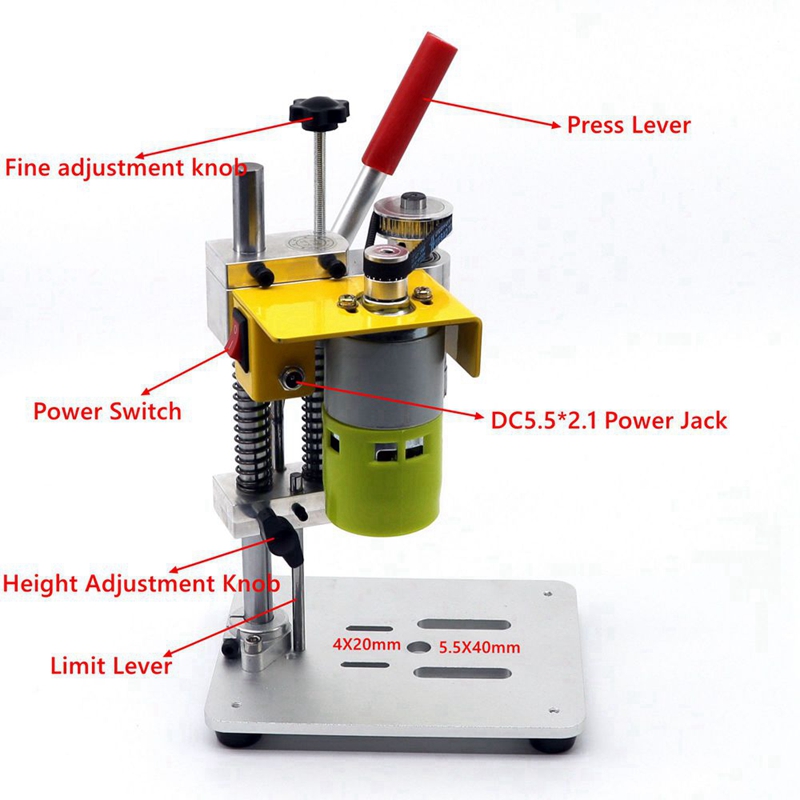

- Add-on expansion design with dual expansion slots on the base enable you to install the mini bench vise or CNC sliding table for your CNC drilling projects
- Compatible size and about 1.7kg weight, save your space and easy to carry
- Once installed the compatible drill bit can widely used in the DIY wooden jade stone and toys model crafts, watch and mobile phone repair.
Specification:
- Power voltage: 12 - 24V 5 - 20A
- Motor speed: 2000 - 4000 rpm
- Rated power: 120W
- Rated frequency: 50Hz
- Motor: 795
- Speed: 4500-7000RPM
- Drill chuck model: B10
- Drill clamping diameter: 0.6-6mm
- Max. pressing stroke: 4cm
- Max. drilling depth: 4cm

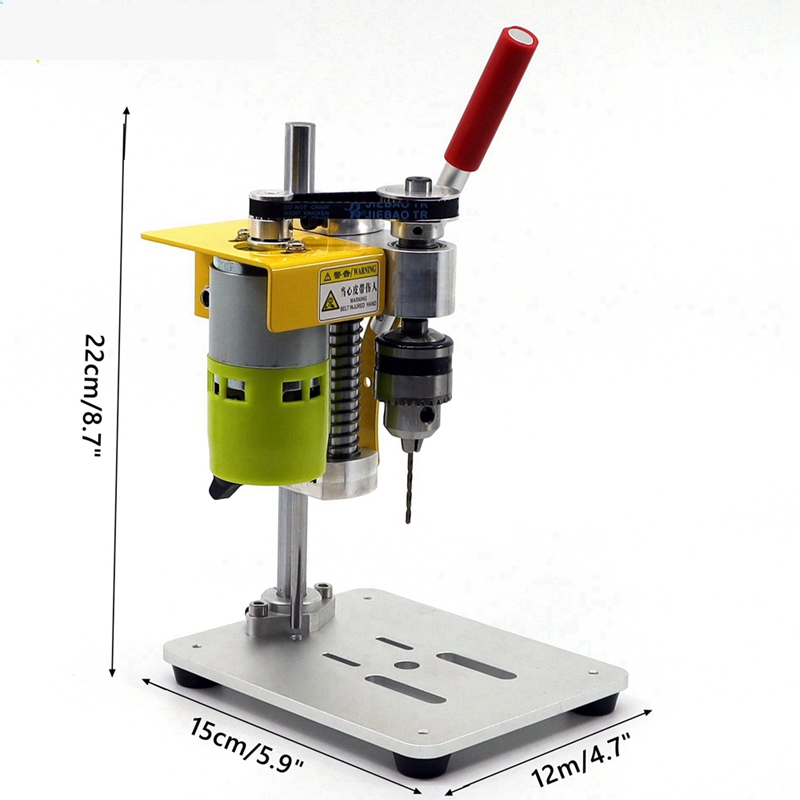

- Size: 15 x 12 x 22cm / 5.9 x 4.7 x 8.7inch (L x W x H)

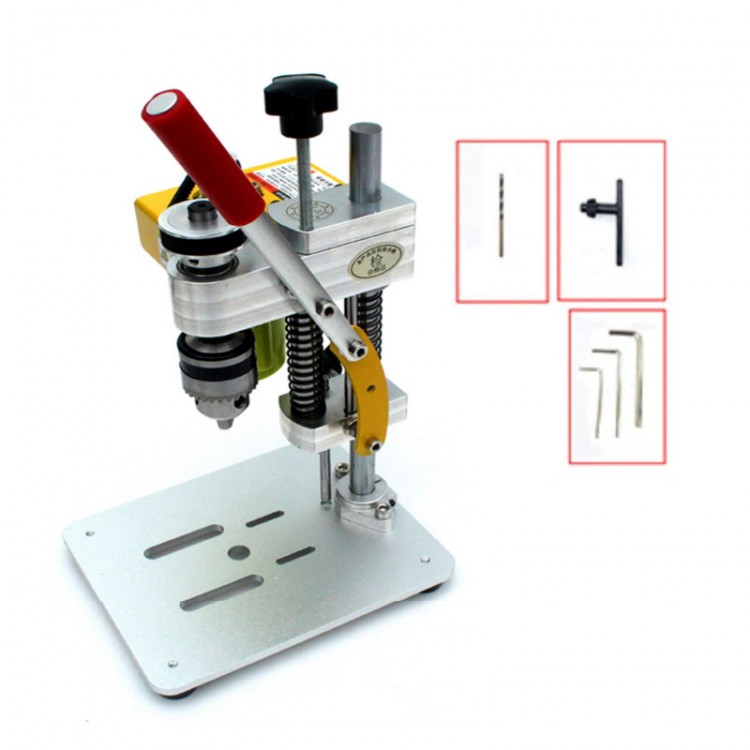

Package Included:
- 1 x Drilling Machine
- 1 x B10 Drill Chuck
