B2 Standard Version QCC5125 Bluetooth Receiver Module w/ USB Type-C Port For Speaker Amplifier

B2 Standard Version QCC5125 Bluetooth Receiver Module w/ USB Type-C Port For Speaker Amplifier

Version Comparison:
B2 Basic Version (Without decoding):
- Bluetooth chip: QCC5125
- Input ports: Bluetooth 5.1 (for APTX-HD and LDAC)
- Output ports: Standard four-wired i2s (with MCK)
- Power Supply: DC 5V. Pin header spacing: 2.54mm
- Size: 38 x 24MM

B2 Standard Version (Without decoding):
- Bluetooth chip: QCC5125
- Input ports: Bluetooth 5.1 (for APTX-HD and LDAC), USB Type-C (adjust volume and pause via buttons)
- Output ports: Standard four-wired i2s (with MCK)
- Size: 48 x 30MM

B2 Advanced Version (With PCM5102A DAC Chip):
- Bluetooth chip: QCC5125
- Decoding chip: PCM5102A
- Input ports: Bluetooth 5.1 / USB (Type C) / 3.5 Analog (Automatically switch priority: Bluetooth→USB→3.5)
- Output ports: 3.5 analog
- Size: 50 x 60MM

B2 Deluxe Version (With ES9038Q2M DAC Chip):
- Bluetooth chip: QCC5125
- Decoding chip: ES9038Q2M
- Input ports: Bluetooth 5.1 (for APTX-HD and LDAC)
- Output ports: Two RCA ports (analog signal)
- Size: 95 x 67MM

Features:
- Powerful functions and amazing sound quality
- QCC5125 Bluetooth module
- Wireless input: B2 adopts QCC5125 Bluetooth 5.1 solution which is newer than CSR8675. For LDAC, aptX-HD, AAC, aptX Adaptive and other encoding formats.
- Support 24bit 96kHz audio CD-level sound quality, super cost-effective.
- Good sound quality, no delay, no lag. Reduce the secondary loss of sound quality compression, accurately reproduce full audio broadband, HIFI-level high-fidelity.
- Application: It is suitable for home audio to add Bluetooth wireless receiver.
- Support USB type C input, wired connection to computer and mobile phone.

Product Parameters:

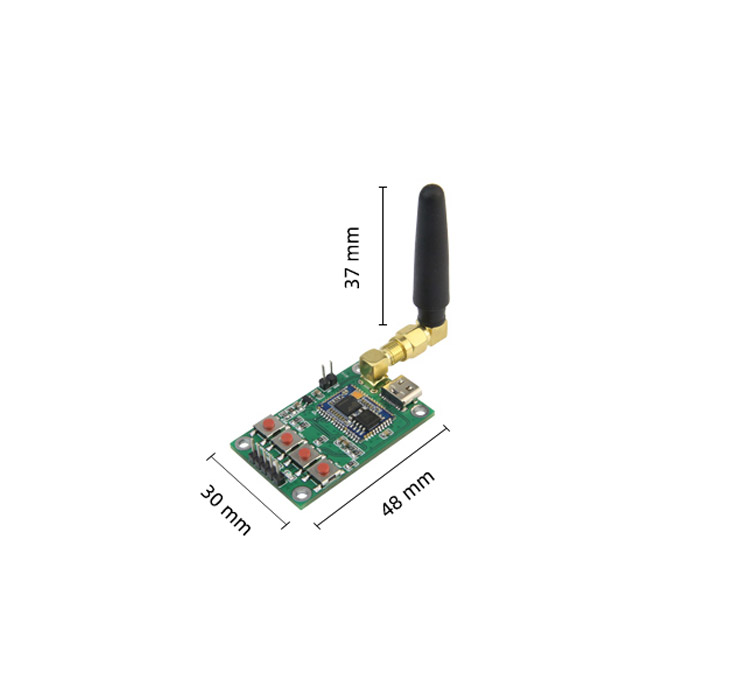

- Overall size: 48 x 30 x 1.6mm (LxWxThickness)
- Module weight: 18g (pin header spacing 2.54mm)
- External power supply: 5V DC (powered via pin headers)
- Input ports: USB, Bluetooth 5.1 (QCC5125)
- Output ports: IIS (MCLK, BCLK, DATA, LRCK, GND)
- Bit depth & sampling rate: 16-24Bit, 44.1-96KHz
- Power consumption: 0.025W (5mA)
- Bluetooth specifications: for LDAC, aptX-Adaptive, aptx-HD, SBC, AAC (Your cellphone should support for LDAC and APTX)

More Information:
For aptX HD: Its appearance is related to the increasing popularity of high-definition audio. It can support up to 24-bit/48kHz audio, which means that we can listen to music with better sound quality with wireless devices. Compared with 352kbps for aptX, the bit rate is increased to 576kbps for aptX HD.

For aptx adaptive: It combines the advantages for aptx hd and lossless, and can adjust sound quality and delay adaptively. It aims to create a next-generation wireless audio technology that can be used across devices, suitable for smartphones, tablets, computers, headsets, gaming headsets and speakers. Provide you with the ultimate and excellent wireless listening experience.

For LDAC: It is an audio codec. It can transmit and stream 96KHz/24bit music (also known as high-resolution audio) via Bluetooth, with speeds up to 990kbps. It can transmit about 3 times the amount of information of ordinary Bluetooth audio [refers to the use of A2DP protocol, SBC encoding] (328Kbps, 44.1KHz).

Package Included:
- 1 x Set of Bluetooth Module

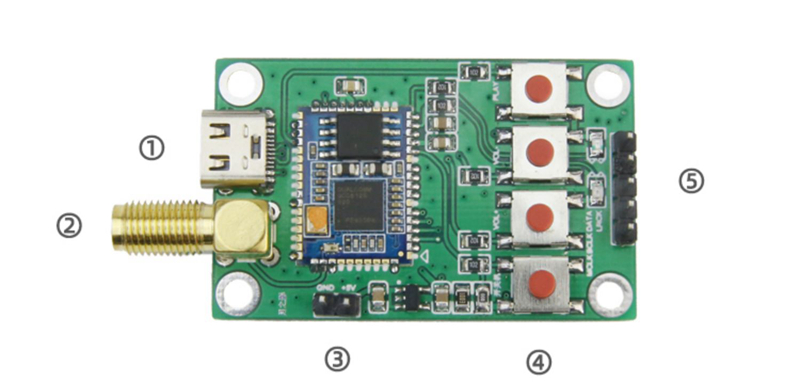

Functions:
① USB audio signal input port, type C interface, all systems are driver-free. For Windows, Mac, Linux, Android phones, Apple phones;
② Bluetooth antenna interface;
③ 5V external power supply input pin, the left one is GND, the right is +5V;
④ Function buttons are switch, volume+, volume-, play/pause;
⑤ IIS signal output pins are MCLK, BCLK, DATA, LRCK, GND.
