B200 70MHz-6GHz SDR Software Defined Radio AD9361 Dual Channel RF Transceiver Chip Replacement for Original B210

B200 70MHz-6GHz SDR Software Defined Radio AD9361 Dual Channel RF Transceiver Chip Replacement for Original B210

Description:
- This is the B200 compatible upgrade board. It is noted that B200 is not B210, but it upgrades the RF chip from AD9364 to AD9361 than the original B200, so it retains the ability to support dual channels. The FPGA firmware provided by us can support dual channels receiving or transmitting, but it does not support dual channels sending and receiving at the same time. If you only want to use single channel transceiver then use the original FPGA firmware, the original how to use this how to use, fully compatible.
- Using for ETTUS B200 schematic design, interface performance is consistent with ETTUS B200. The USRP B200 is not comparable to LIMESDR and BLADERF in terms of RF performance and drive stability. Some customers who have bought BLADERF and LIMESDR will buy USRP B200 later, especially for LTE testing applications, the B200 is much more stable.
- Equipped with USB3.0 cable.
- DC interface (6V), if GPSDO is not used and only single channel transmission and reception are used, no external power supply is required. If GPSDO or dual channel transmission and reception are to be used, an external power supply is required.
- For Spartan 6 XC6SLX150 FPGA.
- AD9361 dual channel RF transceiver chip, supporting a maximum sampling rate of 61.44MHz/s.
- Equipped with a clock accuracy of 2PPM and supports GPSDO or external reference clocks, with a maximum accuracy of 1PPB (0.001PPM).

Specification:
- Product size: 150 x 100mm
- Supported frequency: 70MHz - 6GHz
- TX port: 2
- RX port: 2
- Interface: USB3.0

Use the following test command to test the output power of each frequency:
- Test command: sudo ./tx_waveforms --rate 0.5e6 --freq 470e6 --gain 90 --ampl 0.9 --wave-type SINE --wave-freq 0.1e6

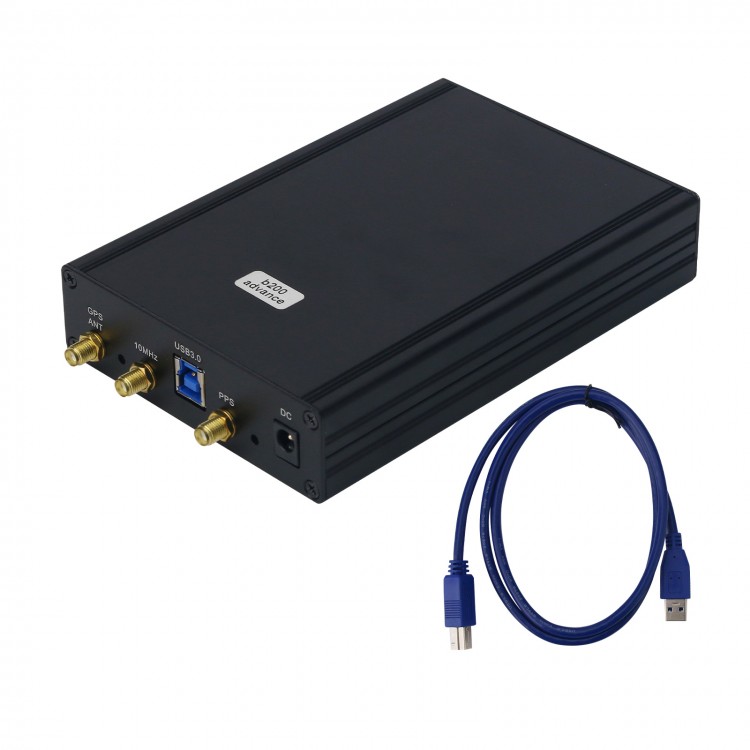

Package Included:
- 1 x SDR
- 1 x USB Cable
