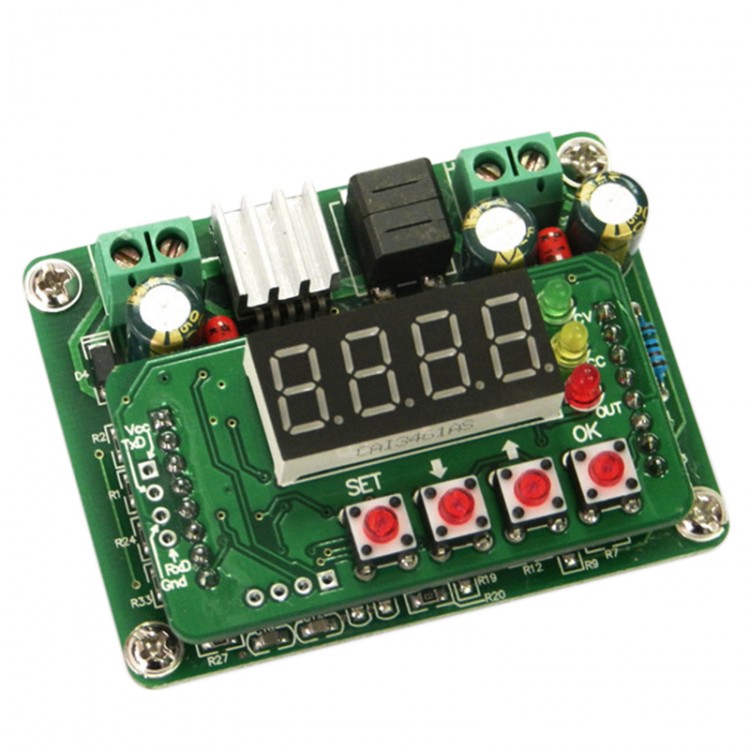

B3603 Precision CNC DC-DC Constant Voltage Constant Current Buck LED Driver Module Solar Charging Power
Description:
- The use of advanced microprocessors, can be precisely regulated output voltage, current, with memory save function, can store 10 groups of parameters, power down automatically save the current parameters
- High brightness LED, real-time display the output voltage, current, power, capacity and other parameters, you can manually switch the display can also be set auto rotate
- Input voltage: 6V ~ 40V (input voltage must be higher than the output voltage of 1.5V or more)
- Output voltage: 0 ~ 36V
- Output voltage and current resolution: 10mV, 1mA
- The maximum output current of 3A, stable operating current at 2A, continuous power would take a long time to enhance heat dissipation
Parameters:
- Input voltage:6V-40V
- Output voltage: 0-36V
- Output current: 0-3A
- Conversion efficiency:92%
- Operating frequency: 150Khz
- Over cuicuit protection: Constant current
- Operating temperature: -40~+85 degree ceisius
- Control mode: Digital control + digital tube display
- Voltage regulation / display resolution: 0.01V
- Minimum resolution of power: 0.001W
- Current regulation/ display resolution: 0.001A
- Capacity Minimum resolution: 0.001AH
- Output ripple: <=50mA
- Weight: 43g
- Size: 66x50x21(mm)
Package Included:
- 1 x B3603 LM2596S DC-DC Step Down LED Digital Display
