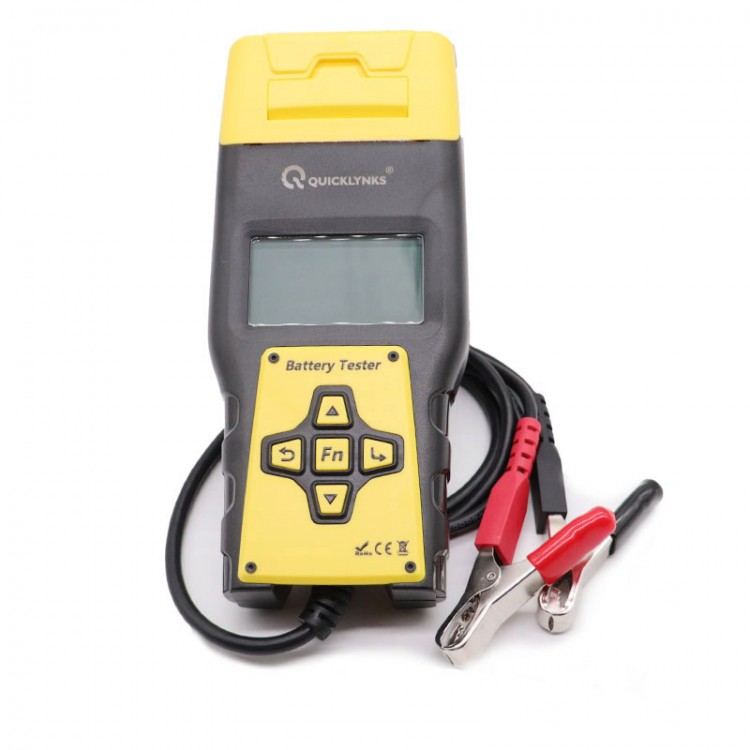

BA1000 Car Battery Tester 12V/24V Vehicle Battery Tester Analyzer w/ Built-in Printer Multi-Language

BA1000 Car Battery Tester 12V/24V Vehicle Battery Tester Analyzer w/ Built-in Printer Multi-Language

Description:
BA1000 Battery Tester adopts currently the world's most advanced conductance testing technology to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, Health state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair.

1. Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, EFB battery, etc.
2. Directly detect bad cell battery.
3. Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.
4. Directly test the battery with loss of electricity, no need to full charge before testing.
5. Testing standards include currently the world's majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.
6. Support multi-languages, customer can select different language package, which includes: English, Spanish, French, German,Dutch, etc. Other languages can also be customized according to user's need.

Functions:
Main functions of BA1000 battery tester include: battery test, cranking test, charging test and other additional functions.

Battery test is mainly targeted to analyze the battery Health status to calculate the actual cold cranking capability of the battery and the aging extent, which provide reliable analysis evidence for the test and maintenance of the battery. It notifies the user to replace battery in advance when the battery getting aged.

Cranking test is mainly to test and analyze the starting motor. Through testing the actual required cranking current and cranking voltage of the starting motor, it can find out whether the starting motor works fine. There are several reasons why the starting motor is abnormal: lubricating system fault causing the starting loaded torque increasing or rotor friction of the starting motor causing the increasing friction of the starting motor itself.

Charging test is to check and analyze the charging system, including generator, rectifier, rectifier diode, etc., thus to find out whether the
output voltage of the generator is normal, the rectifier diode works fine and the charging current is normal. Suppose one of the above
mentioned parts is not in normal situation, it will lead to over charge or incomplete charge of the battery, thus the battery will be quickly damaged and also greatly shorten the using life of other loaded electrical appliance.

Additional functions include: Set language, voltmeter and screen brightness adjustment.

Features:
- Test battery CCA, voltage, internal resistance, health and charge
- Support all battery standards, like JIS, DIN, IEC, EN, SAE, CA, CCA, GB, BCI, MCA
- Review the history record auto-saved.
- Test cranking system and charging system for 12V & 24V vehicles
- One-click-quick test function key, easy to use for clients
- Multilingual operation interface

Specifications:
- Product name: 12V&24V lead-acid battery tester
- Product model: BA1000
- Input voltage: 8V-30V
- Voltage measurement accuracy: ±0.05V
- Storage temperature: -20 to 70℃
- Working temperature: 0 to 50℃
- Built-in printer
- LCD black and white display: 128*64MM
- Size: 212MM*90MM*35MM

Scope of Application:
12V automotive lead-acid battery test range
* 100~2000 CCA
* 100~1400 DIN
* 100~1400 IEC
* 30~220 AH
* 26A17~245H52 JIS

Package Included:
- 1 x Set of Car Battery Tester
