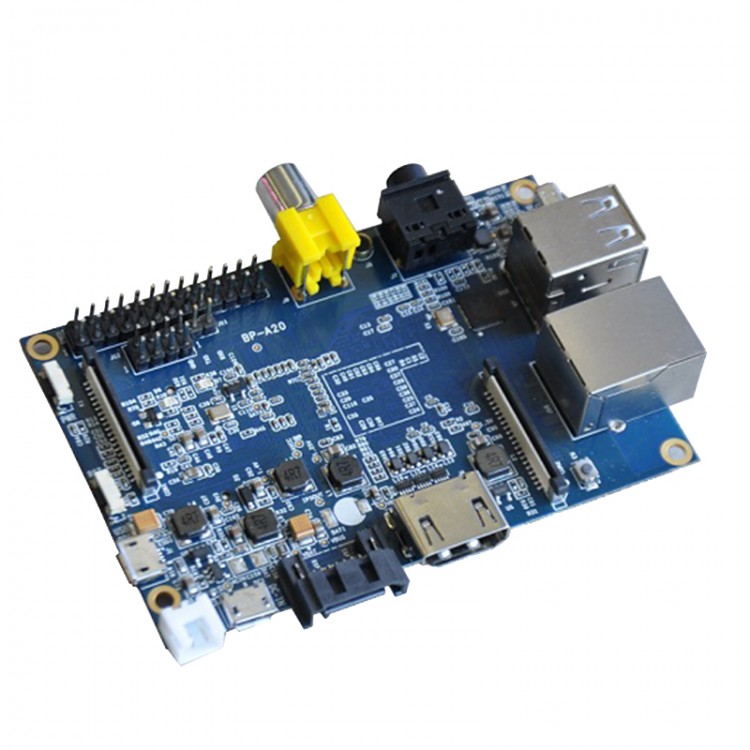

Banana Pi A20 Raspberry Pi Arduino Open Source Hardware Platform

Banana Pi A20 Raspberry Pi Arduino Open Source Hardware Platform

Description:
- Banana Pi M1 is an open source hardware platform to cooperate with Elastos.org and Banana Pi M1  is a more powerful dual-core Android4.2 product than raspberries pie. Banana Pi supports Android, Debian Linux system, Ubuntulinux system, Raspberry Pi system and cubieboard system. Can be used as a media player, intelligent routing switch, relay, industrial computer, set-top boxes, network player, development board, personal entertainment learning programming software, etc.
- Elastos will coordinate multiple CPU to form family cloud of ecological environment based on the software/hardware service. Banana Pi shaped like raspberries pie, but its performance is more powerful than raspberries pie, and it can run raspberry pie image.
- Banana Pi, become a Raspberry Pi great supplement, faster CPU (allwinner A20), 1 g dual core. Larger memory: 1 gb DDR3, richer interface support.
- More importantly, all of the hardware, are general chip universal, after development, users can be free to develop their own new hardware products, without any restrictions
- Any interface is also a universal interface, all developers around the world are free to the development of the corresponding accessories, from development to the transition process.
- It can be compatible with Raspberry Pi software systems

Parameters:
- CPU: A20 ARM Cortex-A7 dual core processor
- CPU: ARM Mali400MP2 Complies with OpenGL ES 2.0/1.1
- SDRAM: 1GB DDR3(commen share with GPU)
- SD card expansion: SD car(max 64GB) / MMC card slot connect to SATA hard disc can up to 2T
- Onboard Netcard: 10/100/1000 Ethernet RJ45 (optional USB WIFI Dongle)
- Camera input: through CSI connector is allowed to use camera module
- Recording: Mic
- Audio output: 3.5mm audio output interface and HDMI
- Video output: HDMI, CVBS, LVDS/RGB
- Power supply: USB 5V DC power supply
- USB 2.0 port: x2(direct from Allwinner A20 chip)
- Button: reset button: Next to MicroUSB connecting
               power button: Next to Reset button
               UBoot button(optional): Behind HDMI connector
- GPIO(2X13) PIN: GPIO UART I2C BUS SPI BUS WITH TWO CHIP SELECTS CAN BUS ADC PWM 3.3V 5V GROUNG
- Indicator light: power (red) LED(blue) user defined LED (green)
- Remote control: IR
