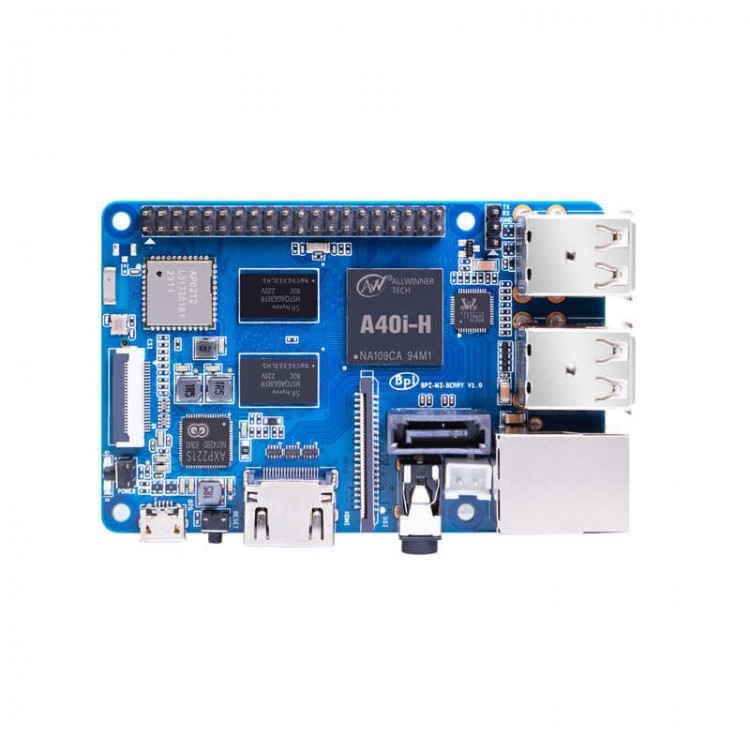

Banana PI BPI-M2 Berry Quad-core Mini Single Board Computer Development Board w/ Allwinner A40i-H

Banana PI BPI-M2 Berry Quad-core Mini Single Board Computer Development Board w/ Allwinner A40i-H

Description:
The Banana PI BPI-M2 Berry quad-core single board computer is developed with Allwinner A40li chip. It supports onboard Wifi and Bluetooth, supports SATA interface, and can be directly connected to a hard disk. There is an SD card slot on the board, which can boot the system image from your SD card.

Banana PI BPI-M2 Berry is highly compatible. It can run systems for Android, Debian, Linux, Ubuntu Linux, Raspberry Pi and Allwinner Tina Linux.

As a member of the Banana Pi family, the Banana PI BPI-M2 Berry is a direct upgrade to the Banana Peel M1/M1+, supporting SATA.

Features:
* Allwinner A40i-H quad core Cortex-A7 CPU for ARM
* 1GB DDR3 SDRAM RAM
* Onboard WiFi (AP6212) & Bluetooth
* SATA hard disk interface
* 4*USB2.0 interface
* MIPI DSI display interface
* CSI camera interface

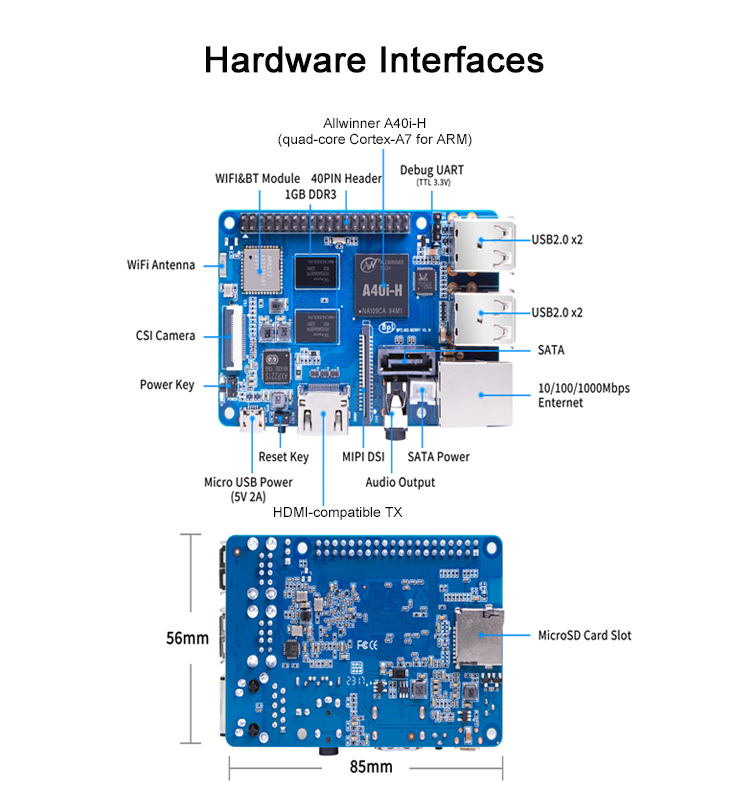

Hardware Specifications:
* Soc: Allwinner A40i-H
* CPU: quad-core Cortex -A7
* GPU: dual-core MALI-400 MP2 and runs at 500MHz, capable of 1.1 Gpixel/s throughput. Graphics capabilities are slightly higher than the original level (for Xbox) of performance. The GPU provides OpenGL ES 2.0, hardware-accelerated OpenVG, 1080p45 H.264 high-profile encode and decode.
* SDRAM: 1GB DDR3 with 733MHz/(shared with GPU)
* SATA: support SATA interface
* GPIO: 40 Pins Header, 28xGPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S
* On board Network: 10/100/1000Mbps Ethernet /(Realtek RTL8211E/D)
* Wifi Module: WiFi 802.11 b/g/n /(AP 6212 module on board)
* Bluetooth: BT4.0
* On board Storage: Micro SD /TF card, No eMMC onboard
* Display: 4-lane MIPI DSI display,or RGB panel or LVDS panel, TV-out on HDMI-compatible V1.4
* Video: Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc. H.264 decode up to 1080P60, support video encoding: High-definition/(HD) H.264 video encoder is up to 1080P at 45fps
* Audio outputs: HDMI-compatible, analog audio /(via 3.5 mm TRRS jack), I2S audio /(also potentially for audio input)
* Camera: A CSI input connector camera: Supports 8-bit YUV422 CMOS sensor interface, supports CCIR656 protocol for NTSC and PAL, supports 5M pixel camera sensor, supports video acquisition solution up to 1080p at 30fps
* USB: 4 USB 2.0 host, 1 USB 2.0 OTG
* Buttons: Reset button, Power button, U-boot button
* LEDs: Power status Led and RJ45 Led
* IR: No onboard IR receiver
* DC Power: 5V/2A with micro USB port
* Battery: No 3.7V lithium battery power support (battery not included)
* Sizes: 85mmx56mm, same size as raspberry pi 3
* Weight: 40g

Package Included:
* 1 x Board

Packaging Details:
* Weight: 0.3kg

Note:
* Battery is not included.


* Hardware of Banana PI BPI-M2 Berry: Allwinner A40i-H quad-core processor, 1GB LPDDR3 RAM and Gigabit Ethernet. 4 USB ports run the system for Android 5.1 smoothly.
* The size and interface of the board are the same as those of the RaspberryPi3, so you can use accessories such as the case of the RaspberryPi3 directly on the Banana PI BPI-M2 Berry.
