Banana Pi BPI-M2 Zero Development Board Quad-core 512MB H3 Onboard Wifi Bluetooth (with Heat Sink)

Banana Pi BPI-M2 Zero Development Board Quad-core 512MB H3 Onboard Wifi Bluetooth (with Heat Sink)

Introduction:

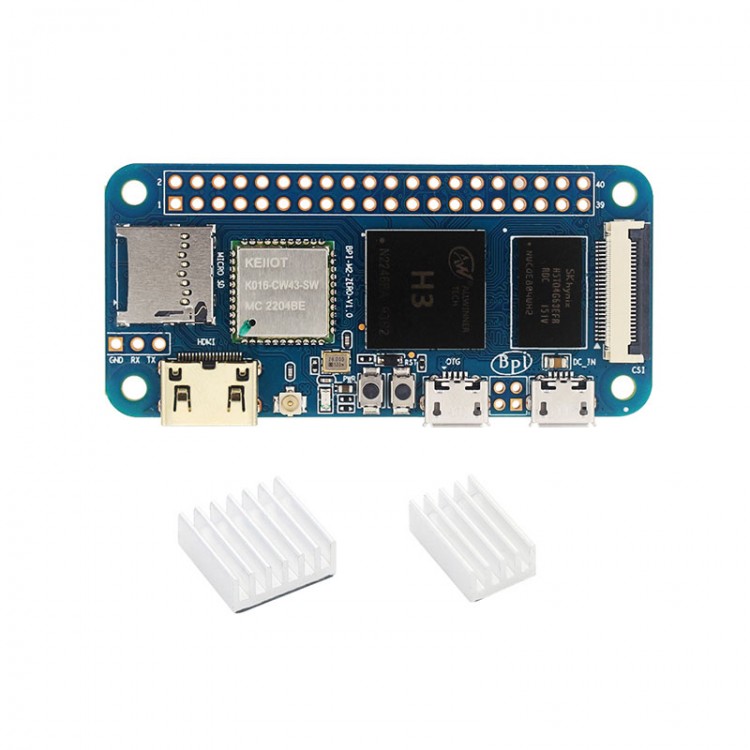

Banana Pi BPI-M2 Zero is an extremely small open-source single-board computer, designed with Allwinner H3 chip solution. Its size is exactly the same as that for Raspberry pi Zero, with a size of 60mm * 30mm. Support onboard WIFI and Bluetooth, 512M memory, Mini HDMI interface.

Banana Pi BPI-M2 Zero supports systems for Android, Debian linux, Ubuntu linux, and Raspbian. It can be used for IoT and educational application development.

Hardware Specifications:
- Module: Banana Pi BPI-M2 Zero
- CPU: H3+ Quad-core for Cortex-A7 H265/HEVC 1080P
- GPU: Mali400MP2 GPU at 600MHz, for OpenGL ES 2.0
- Memory (SDRAM): 512M DDR3 (shared with GPU)
- Onboard Storage: TF card (Max. 64GB)
- Onboard Network: NOPE (but can extension with PIN define)
- Onboard WIFI: SDIO AP6212 (option AP6181, AP6335)
- Video decoding: 1080p at 60fps, H.264 Video encoding 1080p at 30fps, H.264
- Video input: A CSI input connector Camera
- Video Outputs: mini HDM-compatible 1.4, 1080P at 30fps, DHCP
- Audio Output: Mini HDMI-compatible
- Power Source: Micro USB with 5V/2A
- USB 2.0 Ports: one USB 2.0 OTG
- Buttons: Power Button, Reset Button
- Low-level peripherals: 40Pins Header, for Raspberry Pi 3
- UART GPIO (1x 3) pin: UART, ground
- LED: Power led & Status led
- IR: N/A
- Supported OS: For Android linx

Package Included:
- 1 x Board
- 2 x Aluminum Heat Sinks
