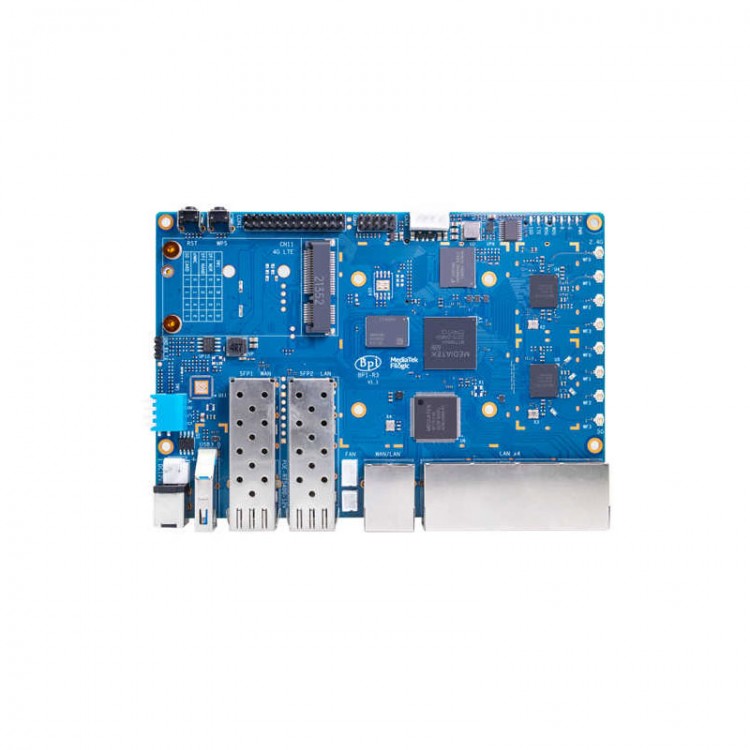

Banana Pi BPI-R3 Open-source Router Development Board w/ MT7986 2G RAM 8G eMMC Flash Supports 2 SFPs

Banana Pi BPI-R3 Open-source Router Development Board w/ MT7986 2G RAM 8G eMMC Flash Supports 2 SFPs

Description:
Banana Pi BPI-R3 router board is designed with MediaTek MT7986 (Filogic830) quad-core A53 (for ARM) + MT7531A chipset, with 2G DDR RAM and 8G eMMC flash.

It is a very high-performance open-source router development board. It supports Wi-Fi6 2.4G Wifi with MT7975N and 5G Wifi with MT7975P. It also supports two SFP 2.5GbE ports and five GbE Ethernet ports.

Features:
* MediaTek MT7986 (Filogic 830) quad-core Cortex A53 (for ARM) + MT7531 chip design
* Wifi 6 4x4 2.4G Wifi (MT7975N) + 4x4 5G Wifi (MT7975P)
* 2G DDR RAM and 8G eMMC flash
* 2pcs SFP 2.5GbE and 5pcs GbE ports
* Mini PCIe interface and M.2 KEY-E PCIe interface
* Micro SD card slot
* 26PIN GPIO expansion

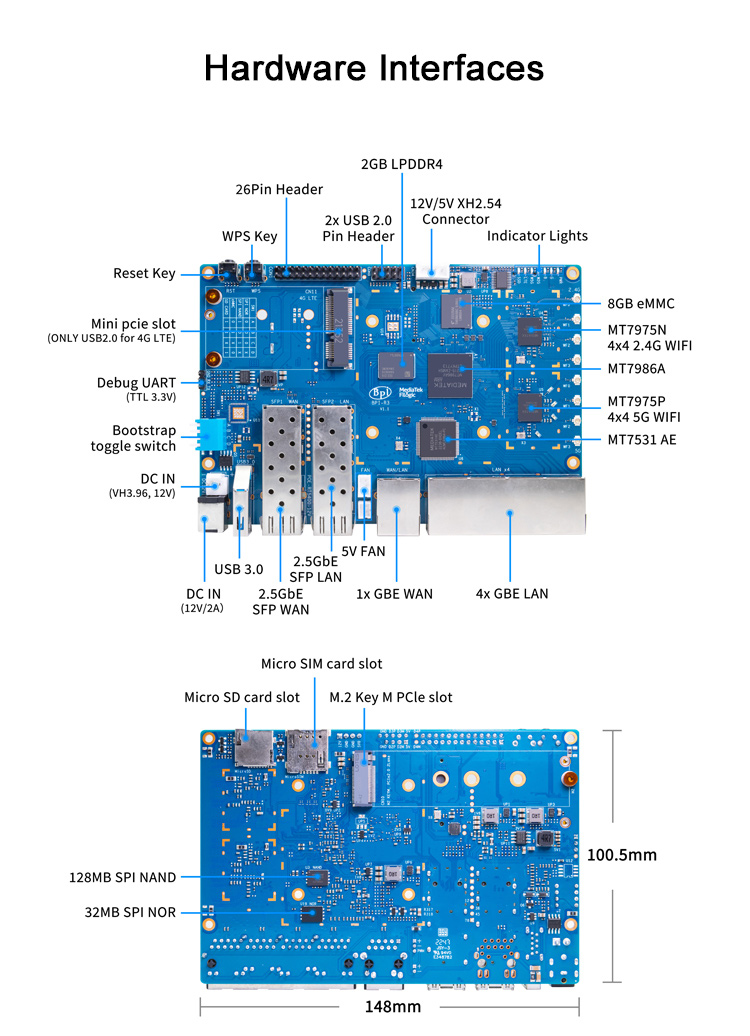

Hardware Specifications:
* CPU: MediaTek MT7986 (Filogic 830) quad-core Cortex A53 (for ARM) + MT7531 chip design
* SDRAM: 2 GB DDR4
* Onboard storage: Micro SD (TF) card and onboard 8GB eMMC
* GPIO: 26 Pin GPIO. Some of them can be used for specific functions including UART, I2C, SPI, PWM, and I2S
* Network port: 5pcs 10/100/1000Mbps Ethernet ports
* SFP ports: 2pcs SFP 2.5GbE ports
* Wifi: Wifi 6 4x4 2.4G Wifi (MT7975N) + 4x4 5G Wifi (MT7975P)
* PCIe interface: Mini PCIe via USB
* M.2 interface: M.2 KEY-E PCIe interface
* USB interfaces: 1 USB 3.0 host and 2 USB interfaces with slot
* Buttons: Reset, WPS, and boot switch
* LEDs: Power status LED and RJ45 LED
* DC power supply: 12V/2A with DC in
* Size: 100.5mmx148mm. Same as Banana Pi BPI-R64 and Banana Pi BPI-R2
* Weight: 200g

Applications:
* Maker DIY
* Internet service router
* Wireless router
* Wireless repeater
* Home security gateway
* Home automation
* Nas device
* Network and communication applications

Package Included:
* 1 x Development Board

Packaging Details:
* Weight: 0.3kg

Note:
* SD card is not included.
