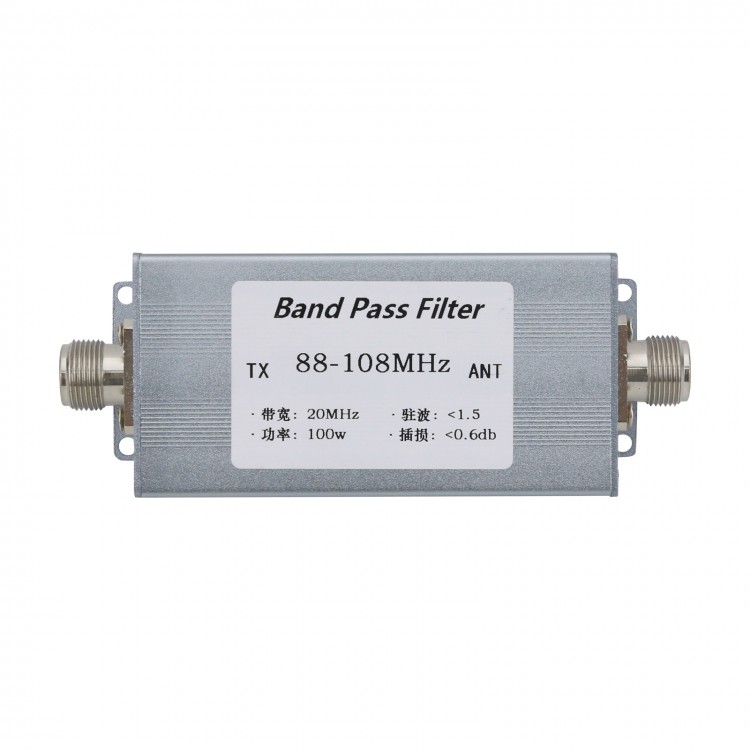

Band Pass Filter BPF 88-108MHz Bandpass Filter Anti-Interference High Receiving Sensitivity 100W

Band Pass Filter BPF 88-108MHz Bandpass Filter Anti-Interference High Receiving Sensitivity 100W

Technical Parameters:
- Input impedance: 50-75 ohms; output impedance: 50-75 ohms.
- The passable bandwidth is 88-108MH
- Insertion loss: less than 1.0db
- TX is connected to the radio, and ANT is connected to the antenna.
- Power: 100w (SSB CW AM FM). Higher power can be customized.
- Standing wave: less than 1.5
- Interface: L16-F (Block N)
- External dimensions: 140 * 53 * 38 mm

Note:
- If you need 2-30MHz or 7-30MHz band-pass filter, you can contact customer service.
- Other items pictured are not included, for demonstration purpose only.

Package Included:
- 1 x Band Pass Filter

Applications:
This band-pass filter is suitable for applications that are close to medium-wave stations or are subject to strong medium-wave interference. It can also be used where shortwave radios interfere with FM radio receivers when transmitting. In order to minimize the electromagnetic interference from the surroundings, this band-pass filter can be connected, which will greatly improve the signal-to-noise ratio.

Usage:
This band-pass filter can be connected in series between the antenna and the receiver. If you want to receive remote FM stereo radio stations, you can install an LNA (low noise antenna amplifier) between the filter and the receiver.

Attention: If the interference comes from within the pass-band of 88-108MHz, this filter will have no effect.

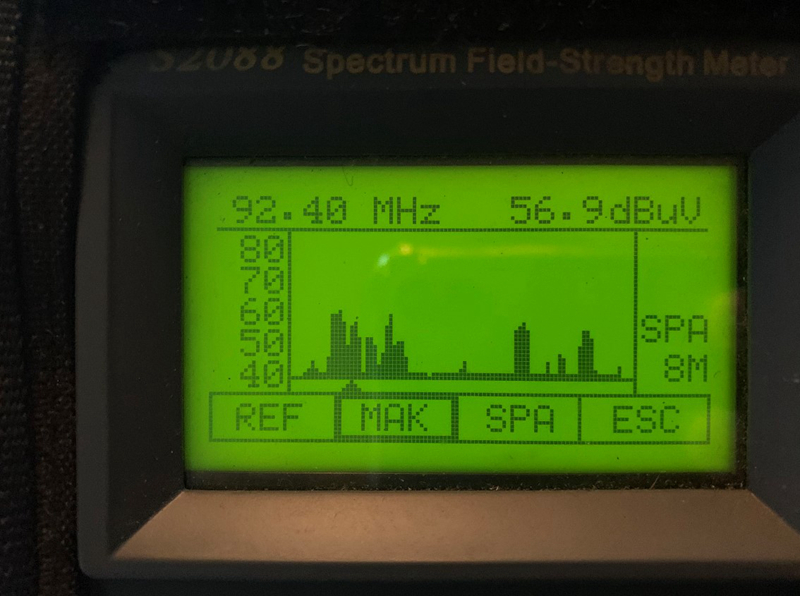

The spectral field strength parameters when the band-pass filter is not connected are as follows:

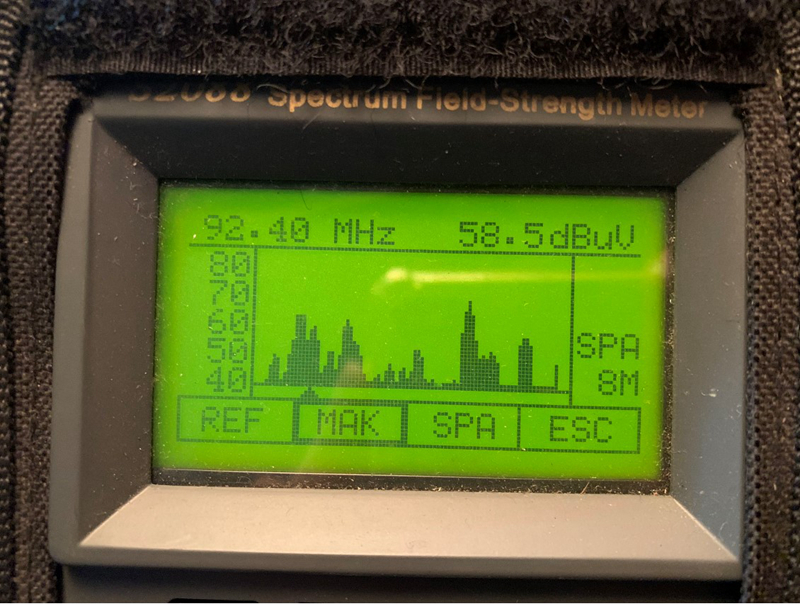

After accessing the band-pass filter:
