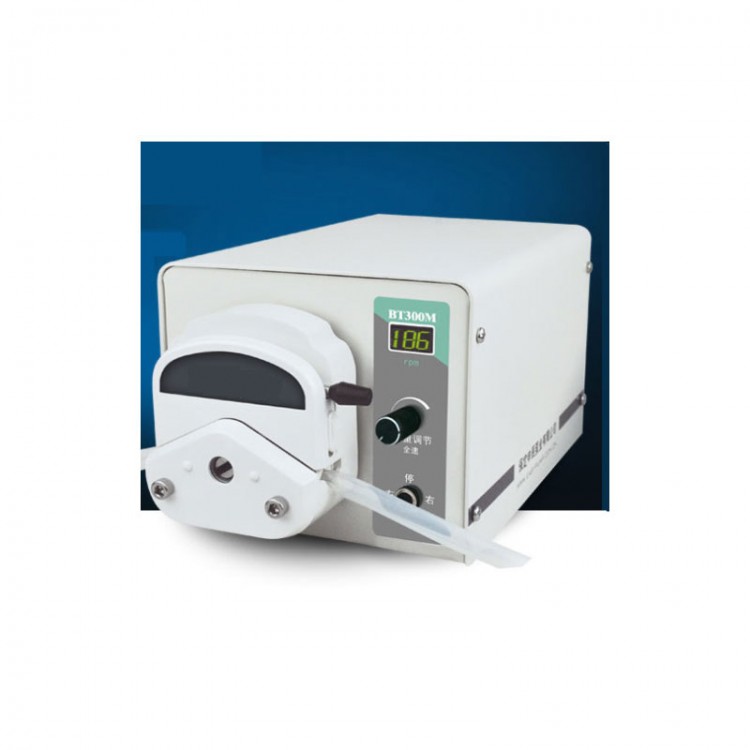

Basic Peristaltic Pump YZ1515x 0.07~1330 mL/min 1 Channel BT300M

Basic Peristaltic Pump YZ1515x 0.07~1330 mL/min 1 Channel BT300M

Description:
- Model No：BT300M
- Drive:Pump Head
- Pump Head: YZ1515x
- Tubing Size: 13#、14#、19#、16#、  25#、17#、18#, please leave us a message about the tubing size you need.
- Flow rate(mL/min): 0.07~1330

Product features：
- Toggle switch control start/stop and direction.Digital knob control speed,easy operation,durable. Support external start/stop a d multiple external control way. Also support RS485 interface(MODBUS protocol RTU mode) Easy to connect with computer,PLC

Production detail: Functions and Features
1.Dual "CPU" control,separate control and driver,computing fast,working stable,high precision transferring.
2.Shenchen-FJ-CIR circuit system with imported chips ,computing fast,reliable performance,work stable.co
3.Shenchen-FJ-EMB control system with embedded software design,powerful function,friendly interface,attention to user experience.
4.Digital knob can can identify the target speed intelligently.When the rotation speed fast,the switch increase the adjustment range automatically.When the rotation speed slow,the switch decrease the adjustment range automatically.It is very convenient to adjust the speed.The rotary encoded switch also have full speed function,not only can be used for washing bottles,but also can be used for filling liquid to the tubing.
5.Toggle switch control direction and start/stop,easy operation,long lifetime.
6.Free external control module,0-5V、0-10V、4-20 mA,3 kind of signal can be used for external control the pump motor speed.Also can control the pump start/stop through switch control.
7.RS485 communication interface,support Shenchen communication protocol (RTU mode),convenient for external control.
8.Power down memory function,save data in time,saft and reliable.
9.Strong anti-jamming feature,wide voltage design,suitable for complex power supply environment.
10.Circuit board spray with three paint,anti-dust,anti-moisture,anti-static,resist corrosion.

Technical specifications:
- Flow rate range      0.00166-1330 ml/min
- Speed range      1-350 rpm
- Speed resolution    0-100rpm， 0.1rpm; 100-600rpm， 1rpm;
- Flow rate accuracy     ＜±0.5%
- Outlet presure   0.86~1.0mm wall thickness tubing:0.1Mpa;  1.6~2.4mm wall thickness tubing:0.1~0.27Mpa;
- Motor tyoe   Stepper motor
- Circuit sysyem  Shenchen-M-CIR
- Operation system  Shenchen-M-EMB
- Display : 3 digital LED
- Operation way :Toggle switch and digital knob
- External control speed signal
- 0-5V(standard），0-10,4-20mA（option）
- Start/stop,direction signal : TTL level signal
- Communication interface ; RS485(standard），Modbus protocol（RTU mode）
- Power supply : AC 220V ±10% 50Hz/60Hz (standard);AC 110V ±10% 50Hz/60Hz (optinal)
- Drive dimension:254×185×149mm (L×W×H)
- Weight :4.64kg
- Power consumption: ＜50W
- Environment temperature:0-40℃
- Relative humidity :＜80%
- IP grade : IP31
