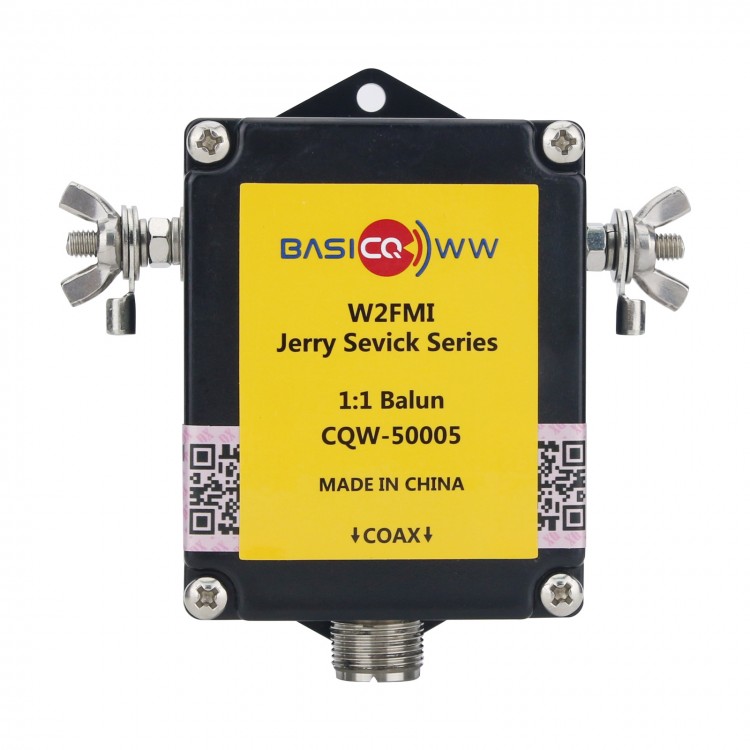

BASICQWW CQW-50005S QRP Balun 500W 1:1 Balun 1.8-54MHz HF Shortwave Current Antenna Balun
Description:
We have enhanced the original by using an enclosure and various connector configurations that allow easy installation with just about any antenna installation. BASICQWW baluns are value-engineered to provide maximum performance at minimum cost, while providing a superb, efficient match between unbalanced coax and balanced antennas.Only BASICQWW baluns will deliver the power to your antenna with minimum loss and perform a perfect transition from balanced to unbalanced.This will result in the strongest signal that your antenna is capable of producing consistently with the lowest SWR under given conditions and to provide a very high power rating across all HF frequencies.
Optional Types:

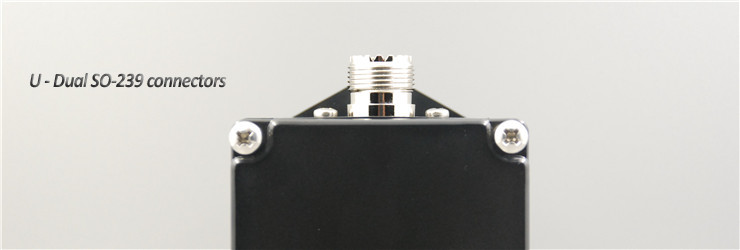

* CQW-50005U: dual SO-239 connectors (nickel-plated)
* CQW-50005UC: dual SO-239 connectors (silver plated)

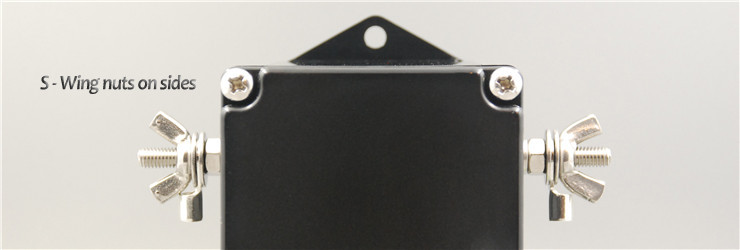

* CQW-50005S: Wing nuts on sides (nickel-plated)
* CQW-50005SC: Wing nuts on sides (silver plated)

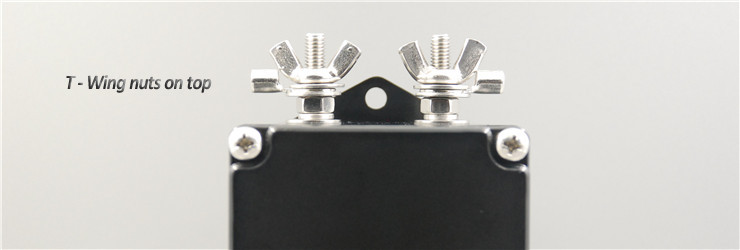

* CQW-50005T: Wing nuts on top (nickel-plated)
* CQW-50005TC: Wing nuts on top (silver plated)
Specifications:
* Core Type: Outstanding low permeability ferrite mix coated toroid core with special design for maximum bandwidth by 798 Factory Product
* Winding Type: Single core/Dual wire
* Winding Material: Polyimide Coated Winding Wire (Essex ALLEX Class 240) provide exact impedance matching and superb insulation, unlike common Thermaleze wire
* Ratio: 1:1
* Power Handling (CW/SSB): 300 watts / 500 watts
* Frequency Range: 1.8 to 54 MHz
* Band of Operation: 160M-6M
* Insertion Loss: Less than 0.05db
* Termination Impedance: 50 Ohms
* Termination Type: M5 Studs/Hex nuts/Wing nuts
* Hardware: All Stainless Steel
* Enclosure Type: NEMA rated 4x junction box provide sturdy weatherproof and an additional level of protection against corrosion
* Dimensions: 3.2 in. x 2.5 in. x 1.6 in
* Additional: Very high efficiency (98-99%)
* Mounting Type: Antenna Mounting Options are available in the Accessories section
Package Included:
* 1 x Balun
