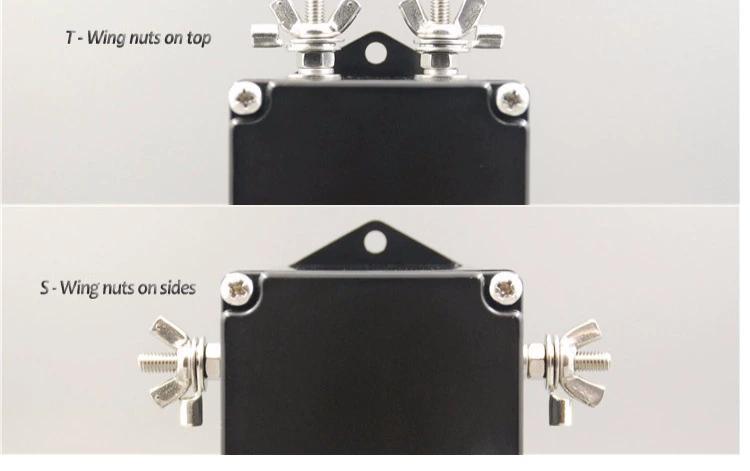

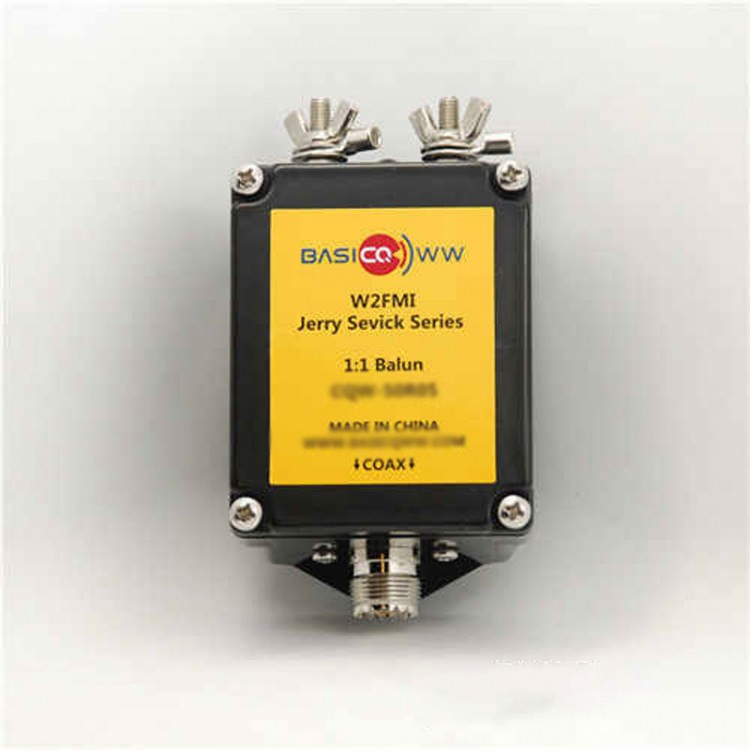

• BASICQWW QRP Balun CWQ-50R50S S-Wing 1:1 500W Voltage Balun Shortwave Antenna Balun 1.8-54MHz 50ohms
  • BASICQWW QRP Balun CWQ-50R50S S-Wing 1:1 500W Voltage Balun Shortwave Antenna Balun 1.8-54MHz 50ohms
  • BASICQWW QRP Balun CWQ-50R50S S-Wing 1:1 500W Voltage Balun Shortwave Antenna Balun 1.8-54MHz 50ohms

BASICQWW QRP Balun CWQ-50R50S S-Wing 1:1 500W Voltage Balun Shortwave Antenna Balun 1.8-54MHz 50ohms

Availability: In stock, usually dispatched in 1 business day

  • Price:$42.72
  • Price in reward points: 427 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $41.87 $41.01 $39.73 $38.02 Contact US
Quantity:

BASICQWW QRP Balun CWQ-50R50S S-Wing 1:1 500W Voltage Balun Shortwave Antenna Balun 1.8-54MHz 50ohms

Description:

- We have enhanced the original by using an enclosure and various connector configurations that allow easy installation with just about any antenna installation. BASICQWW baluns are value-engineered to provide maximum performance at minimum cost, while providing a superb, efficient match between unbalanced coax and balanced antennas.Only BASICQW baluns will deliver the power to your antenna with minimum loss and perform a perfect transition from balanced to unbalanced. This will result in the strongest signal that your antenna is capable of producing consistently with the lowest SWR under given conditions and to provide a very high power rating across all HF frequencies.

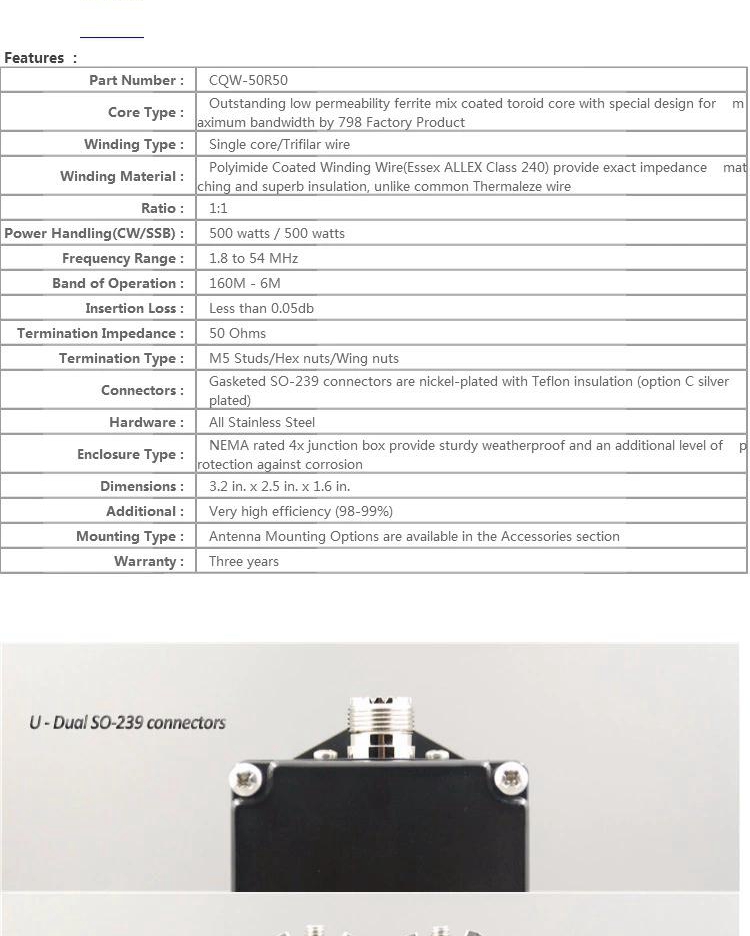

Features:
- Customized 798 factory efficient low permeability ferrite with coating sealing
- Choose special wire sizes to provide high-quality insulation and accurate impedance matching
- Suitable for all amateur frequencies
- Lower SWR
- Eliminate common mode currents and radiation in feeders
- Reduce transmission RFI and reception noise
- The insertion loss is less than 0.05 dB
- SO-239 nickel plated connector with waterproof gasket and for TEFLON insulation (silver plated optional -C)
- High standard waterproof box, long-lasting UV resistance
- Convenient installation holes
- High purity stainless steel hardware

Package Included:

- 1 x Balun
