BC-802-1809 DMX512 Signal Decoder Controller DC5V-24V Input for LED Lamp Light

BC-802-1809 DMX512 Signal Decoder Controller DC 5V-24V Input  for LED Lamp Light

1. Brief Introduction:
The DMX512 Signal Decoder adopted the advanced decoding technology to convert the
International standard DMX512/1990 signal into standard LPD6803/LPD8806/ TM1809/P9813/TLS3001/WS2801/TM1814/SK6812 signals, each decoder has 96/510 DMX output channels, and the output channels can be expanded by adding decoders, therefore, most of LED lights can be controlled by DMX512/1990 protocol via the signal conversion, then widely used pixel light, digital tube light, floodlight, pixel screen, dancing floor light etc.

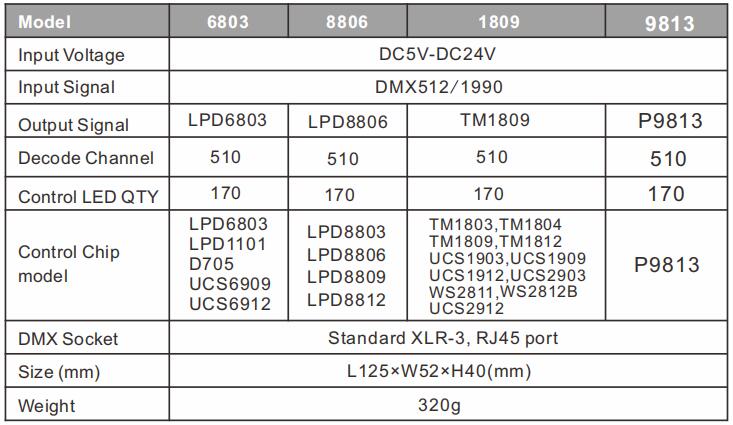

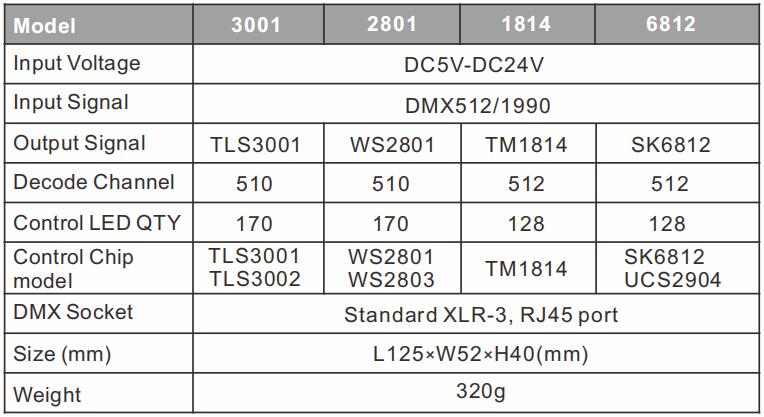

2. Specifications:

3. Basic Features:
1. In put standard DMX512 protocol, address can be set by DIP.
2. Automatically adapt input voltage DC 5V-24V.
3. Self-Changing Mode exist.
4. Output TTL Signal.
5. Power loss memory function.

4. Safety Warnings:
Please don’t install this controller in lightening, intense magnetic and high-voltage fields.
1.To reduce the risk of component damage and fire caused by short circuit, make sure correct connection.
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3.Check if the voltage and power adapter suit the controller (please select DC12-24V power supply with constant voltage).
4.Don’t connect cables with power on; make sure a correct connection and no short circuit checked with instrument before power on.
5.Please don’t open controller cover and operate if problems occur. The manual is only suitable for this model; any update is subject to change without prior notice.
6.More than 32 DMX decoders need to be connected a signal amplifier, and the signal amplification cannot exceed 5 times consecutively.
7.When the signal line is long or the wire quality causes the signal recoil effect to affect the use of product, you can try to connect 0.25W 90-120Ω terminating resistor at the end of each signal line to solve.

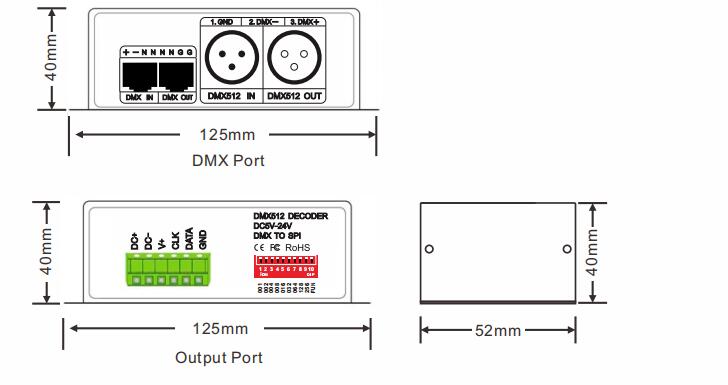

5. Interfaces

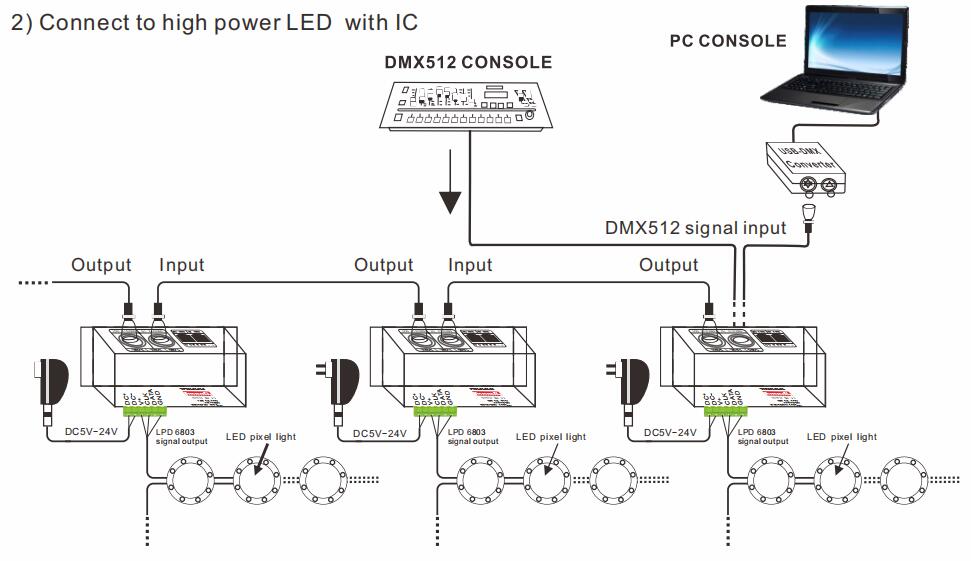

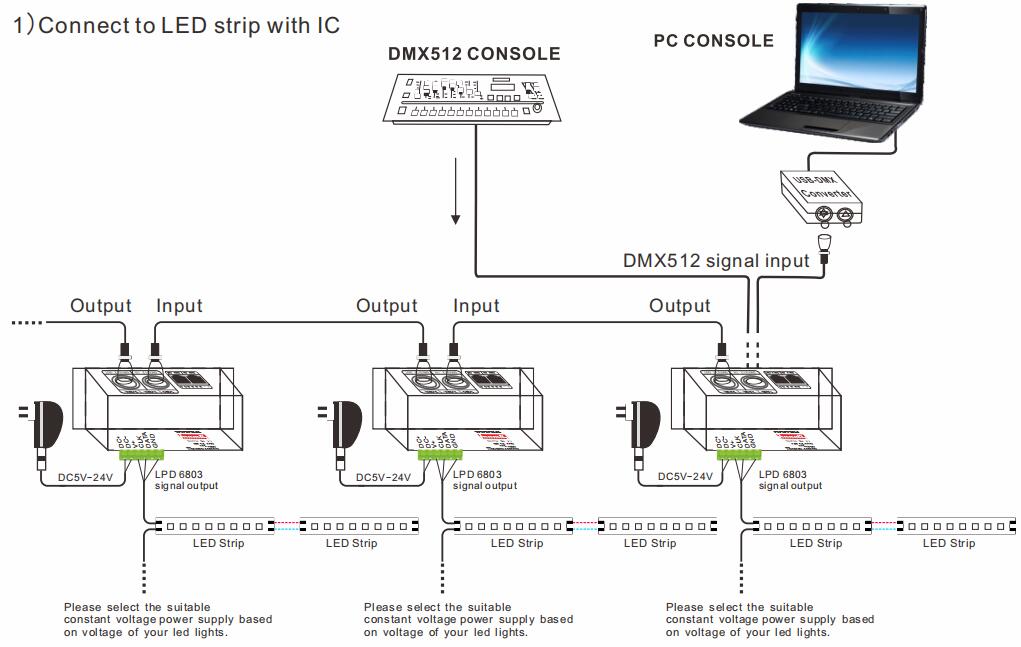

6. Conjunction Diagram

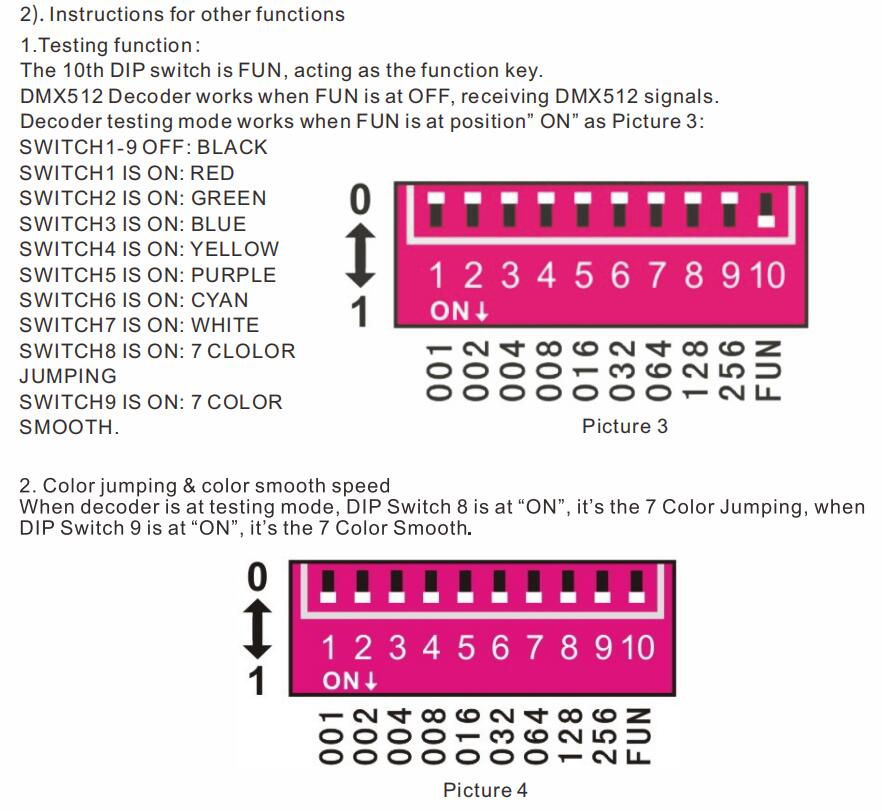

7. Operating Instructions

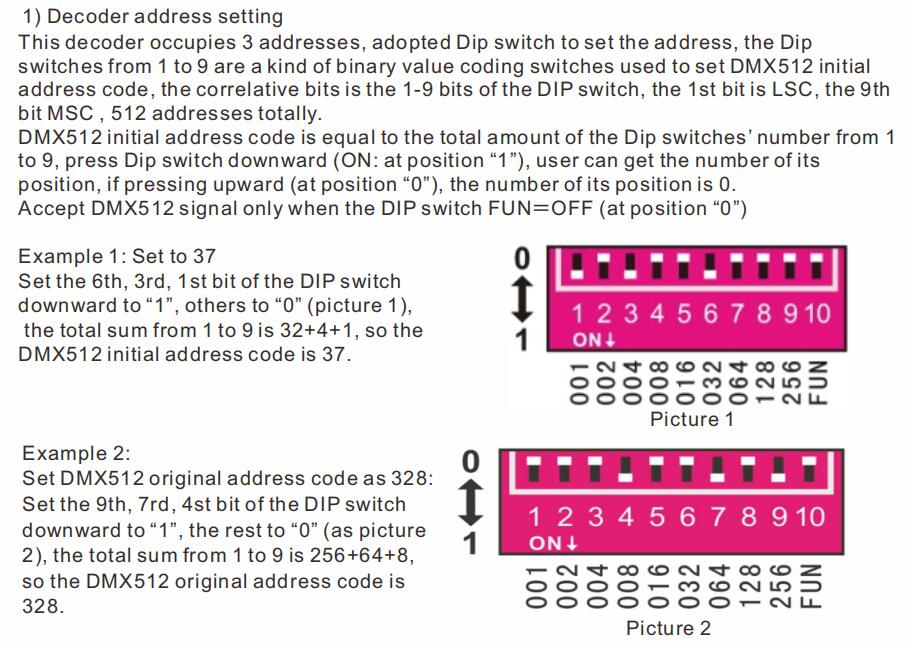

8. Operating Instructions

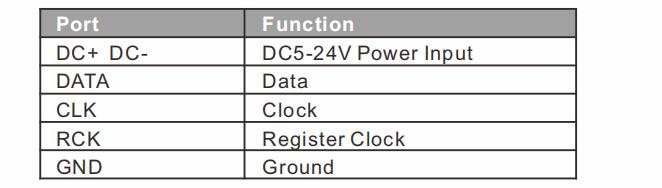

1) Port definition:

Warning: Do not connect the power cable to data port, otherwise it will damage the decoder!

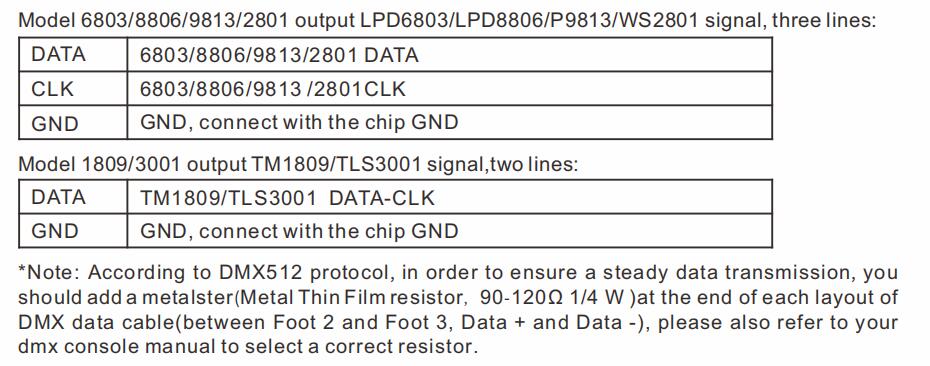

9.Conjunction Instruction:

10. After-Sales
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc. of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment or near harmful chemicals.
7.Product has been updated.

11. Kindly Reminder:
1.Power Source Selection
Power source must be DC constant voltage type of power supply. Due to the efficient output in some power supplies are only 80% of total, so please select at least 20% higher output power supply than the consumption of LED lights.

Package List:
-1 x BC-802 DMX512 Signal Decoder

Note: Please tell us what type of IC lamps to control when ordering, thank you.
