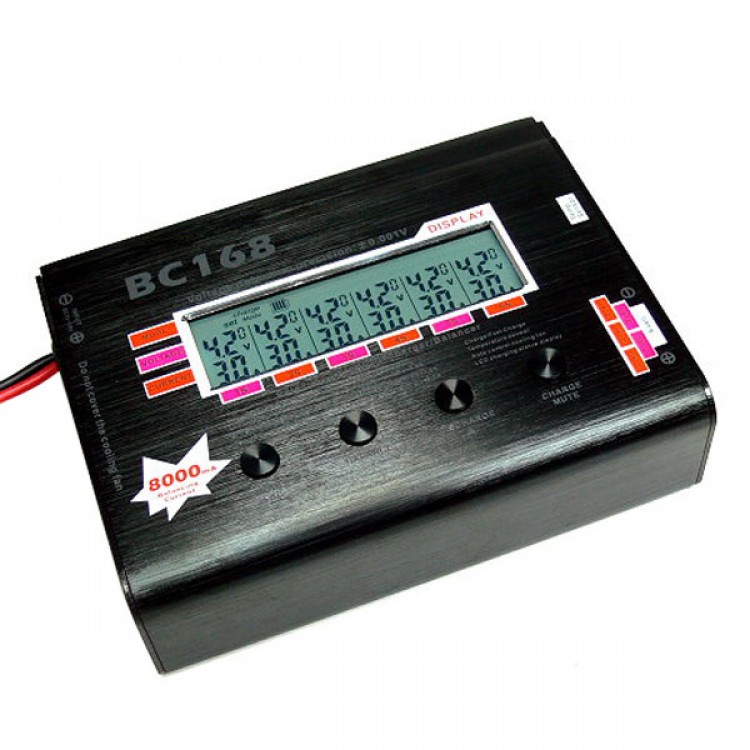

BC168 RC Model Super Speed Li-ion Li-Polymer Li-Fe Balance Charger BC168

BC168 RC Model Super Speed Li-ion Li-Polymer Li-Fe Balance Charger BC168
Specifications
- Input Voltage: 11 - 15V DC
- Input Wattage: 250W
- Charge Power: 200W (33W x 6Cells)
- Discharger Power: 25.2W (4.2W x 6Cells)
- Balance Power: 200W (33W x 6Cells)
- Charger Voltage Adjustable Range: 1.50V - 4.20V (Pre-set up 4.2V)
- Charger Current Adjustable Range: 0.1A -8.0A (Pre-set up 1.0A)
- Charge Temperature Alarm Adjustable Range: 20 - 80 Degree C (Pre-set up 80 Degree C)
- Discharge Voltage Adjustable Range: 2.00V - 4.20V (Pre-set up 3.80V)
- Discharge Current Adjustable Range: 0.1A - 1.0A (Pre-set up 1.0A)
- Balance Voltage Adjustable Range: 2.00V - 4.20V (Pre-set up 3.80V)
- Balance Current Adjustable Range: 0.1A - 8.0A (Pre-set up 1.0A)
- Charge Voltage Precision: +/-0.001V
- Discharge Voltage Precision: +/-0.001V
- Balance Voltage Precision: +/-0.001V
- Charge Shift Efficiency: =>80%
- Charger Consumed Power: =<1.8W (12V 0.15A)
- Suitable Battery Type: 1 - 6Cells (Working Well with LiPo / Lilo / Life)
- Weight: 750g
- Dimension: 165 x 123 x 52mm

Product Function Characteristic:
- The charger is design for Li-polymer and Lithium Cell. Available to charge, balance, discharge, measure the series batteries accurately.
- The charger use 4 button controls all function. 3 of the buttons are shortcut key, only need to press and then can finish charge, fast charge, balance, discharge all functions.
- This charger use high-precision battery detects PCB, the voltage control accuracy reach +/- 0.001V. the current control accuracy reach +/-0.1A based on any situation of the battery. Once finished the discharge, the voltage tolerance of battery will be <=0.002V.
- There is no conflit between each circuit. The power can maintain 8A output, all voltage , current will be display accordingly.
- Well designed for protection of whole circuit. The product will be stop working if there is exceed or overload.
- Automatic heat protection & thermal protection designed.
- The rate voltage for DC is 11V – 15V when input voltage less 11V or over 15V, the charger will be under protection status and then indicate the error of wrong input voltage.
- This charger working with free option input current. The current formula as followings:
- Maximum Power / Input Voltage = input current

Different Battery Parameter
- Battery Standard Voltage: 3.7V/Cell (LiPo), 3.6V/Cell (Lilo), 3.3V/Cell (LiFe)
- Maximum Charge Voltage: 4.2V/Cell (LiPo), 4.1V/Cell (Lilo), 3.6V/Cell (LiFe)
- Super Speed Charge Current: <1C (LiPo), <1C (Lilo), <4C (LiFe)
- Discharge Cut-off Voltage: >3.0V/Cell (LiPo), >2.5V/Cell (Lilo), >2.0V/Cell (LiFe)
Packet content:
-100% Brand New
-1 x BC168 Balance Charger
-1 x Charger Cable
-1 x Chinese Manual
-1 x English Manual
