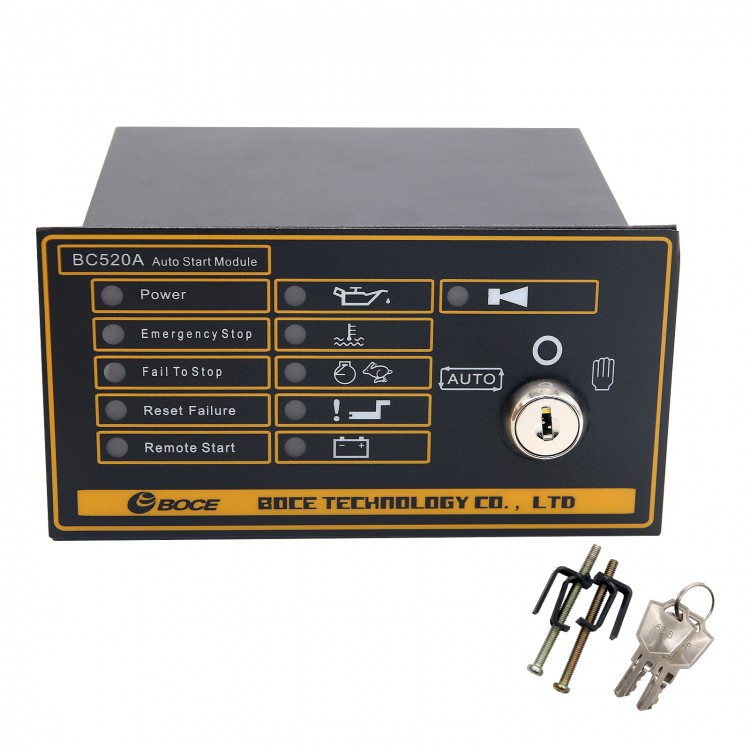

BC520A Auto Start Generator Controller Board Key Start Generator Contol Module

BC520A Auto Start Generator Controller Board Key Start Generator Contol Module

Description:
- The Model 520 is an Automatic Engine Control Module designed to automatically start and stop the engine. It will indicate the operational status and fault conditions, automatically shut down the engine and indicate the engine failure by a flashing LED on the front panel. Other simultaneous faults are indicated by steady LED.
Selected operational sequences, timers and alarms can be altered by the customer by using either the 807 hand held calibration unit or a PC and the 808 interface. This also provides the operator with ‘real-time’ diagnostic facilities to monitor the operation of the system either locally or remotely.
- Remote PC-controlled engine starting and stopping is also featured.
- Operation of the module is via a three position rotary switch (key-switch option available) mounted on the front panel with STOP, AUTO and MANUAL positions.
- Microprocessor control allows for enhanced operation. The module features a comprehensive list of timers and pre-configured sequences. This allows complex specifications to be achieved
- Configurable expansion facilities are provided.



CONFIGURABLE INPUTS
Configurable inputs are available for:

    Low Oil Pressure
    High Engine Temperature
    Remote Start.

This allows the module to function with normally open or normally closed switches.
Four fully configurable auxiliary inputs are provided to give protection expansion.These can be selected to be indication, warning or shutdown inputs either immediate or held off during start up.


ALARM CHANNELS
Multiple alarm channels are provided to monitor the following:

    Under/Overspeed
    Charge Fail
    Emergency Stop
    Low oil pressure
    High engine temperature
    Fail to Start
    Fail to stop
    Loss of speed sensing
    Programmable inputs as selected

First up alarm is indicated by a flashing LED. Subsequent simultaneous alarms are displayed by a steady LED.


Specification
- DC SUPPLY
- CONTINUOUS VOLTAGE RATING:8 to 35 V Continuous.
- CRANKING DROPOUTS:Able to survive 0 V for 50 mS,providing supply was at least 10 V before dropout and supply recoversto 5V. This is achieved without theneed for internal batteries.
- MAXIMUM OPERATING CURRENT:290 mA at 12 V. 210 mA at 24 V.
- MAXIMUM STANDY CURRENT:50 mA at 12 V. 30 mA at 24 V.
- CHARGE FAIL EXCITATION RANGE:0 V to 35 V
- INPUTS:ARTERNATOR INPUT RANGE
- 15 - 300 V ac RMS:ALTERNATOR INPUT FREQUENCY
- 50 - 60 Hz at rated engine speed.
- Magnetic Input Range::0.5 V to +/- 70 V (Clamped by transient suppressors)
- MAGNETIC iNPUT FREQUENCY:10Hz to 10,000 Hz
- OUTPUTS:START RELAY OUTPUT:16 Amp DC at supply voltage.
- FUEL RELAY OUTPUT:16 Amp DC at supply voltage.
- AUXILLIARY RELAY OUTPUT:5 Amp DC at supply voltage.
 - DIMENSIONS:OVERALL 72 X 144 X 118.5 mm (Excluding switch)


Package List:
- 1 x BC520A Generator Controller Board
