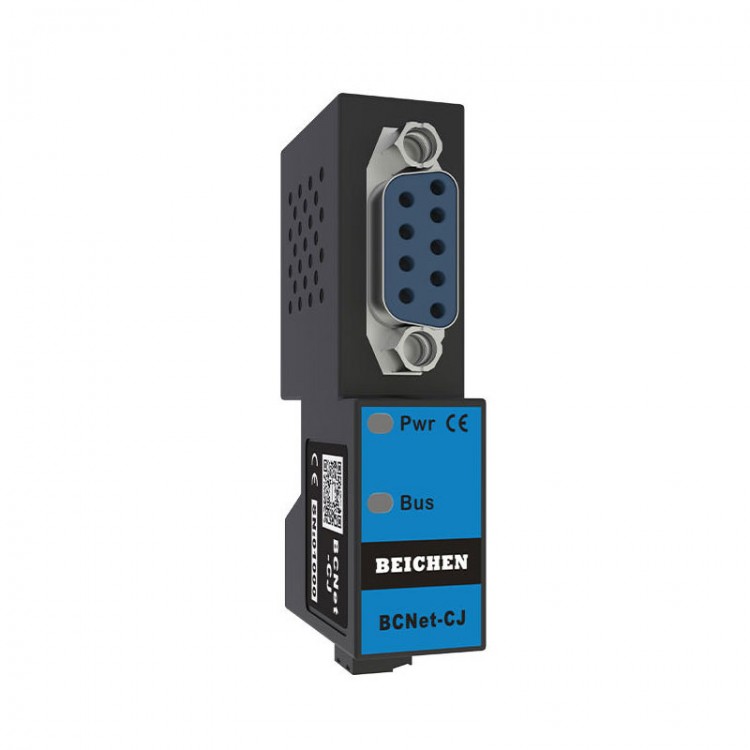

BCNet-CJ Ethernet Communication Module Ethernet Communication Processor for Omron CJ1/CJ2/CS1 PLC

Availability: In stock, usually dispatched in 1 business day

  • Price:$130.36
  • Price in reward points: 1304 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $127.75 $125.15 $121.23 $116.02 Contact US
Quantity:
BCNet-CJ Ethernet Communication Module Ethernet Communication Processor for Omron CJ1/CJ2/CS1 PLC

Description:

BCNet-CJ is an economical Ethernet communication processor, designed to meet the increasing demand for informatization of factory equipment. It can be used for Ethernet data acquisition of PLCs for Omron CJ1/CJ2/CS1 series. It is very convenient to build a production management system.

BCNet-CJ adopts plug-and-play design, which does not occupy the PLC communication port, that is, the programming software/host computer software monitors the PLC data through Ethernet. At the same time, your touch screen can communicate with the PLC through a multiplexing interface.

BCNet-CJ supports most SCADA software in the industrial control field. It supports for OMRON FINS TCP/UDP Ethernet protocol and ModbusTCP communication mode.

Features:

1. Plug in the RS232 port of CJ1M/CJ2M/CS1 directly, no external power supply required. The expansion port can be connected to a touch screen at the same time
2. Integrated WEB server for easy setting of equipment parameters and operation diagnosis
3. Automatic identification of PLC model and automatic matching of PLC and HMI serial parameters, no additional configuration required
4. Supports Ethernet communication for Omron programming software CX-Programmer
5. Supports for Omron FINS/UDP and FINS/TCP Ethernet protocol communication, and supports SCADA software Ethernet communication
6. Integrated Modbus TCP server
7. Supports BCNetTCP/IP transparent transmission protocol communication
8. Supports high-level language programming, making it convenient for the development of production management system
9. Supports OPC communication
10. Supports 10 host computer Ethernet TCP/IP connections
11. Supports Ethernet firmware upgrade

Typical Application:
1. Ethernet programming download, host computer monitoring and equipment networking
2. Realize the communication between the programming software CX-Programmer and CJ2M

Technical Parameters:

- Product model: BCNet-CJ
- Product name: Ethernet Communication Processor for Omron CJ1/CJ2/CS1 Series PLC
- Status display: Pwr, Bus

- Ethernet interface: IEEE 802.3 compatible, Link/Active indicator light, line sequence adaptive, Auto-MDIX supported
- Interface type: RJ45 female socket
- Transmission rate: 10/100Mbps
- Supported protocols: FINS/TCP, FINS/UDP, ModbusTCP, BCNetTCP, etc.
- Number of TCP/UDP connections: 10

- PLC interface: RS232
- Interface type: DSUB 9-pin male
- Transmission rate: 9.6K, 19.2K, 38.4K, 57.6K, 115.2Kbps
- Supported protocols: FINS

- HMI: RS232
- Interface type: DSUB 9-pin female
- Transmission rate: 9.6K, 19.2K, 38.4K, 57.6K, 115.2Kbps
- Supported protocols: FINS

- Programming software: CX-Programmer
- Configuration software: For Kunluntongtai, Kingview, FORCECON, IFIX, INTOUCH, etc.
- OPC Software: KepWare OPC

- Diagnostics and parameter settings: Internet Explorer, default 192.168.1.178

- Power supply mode: The communication port directly takes power or connected to an external 24VDC
- Voltage type: 24VDC/100mA

- Operating temperature: 0~60°C
- Operating humidity: 90% non-condensing
- Installation: Plug and play
- Electromagnetic compatibility: 2014/30/EU
- RoSH production: Yes
- Vibration resistance: 4.5mm/30Hz/10Min
- ESD: 6KV
- Factory aging: 60°C aging box runs for 168 hours, and the power is turned on and off 50000 times
- Communication stability: 30 days of uninterrupted communication with PLC, 130 million times of communication with 0 errors
- Certification: CE certification
- Dimensions (LxWxH): 65 x 30 x 17mm/2.6 x 1.2 x 0.7"
- Weight: 60g/0.1lb

Package Included:

- 1 x Ethernet Communication Module
- 1 x CD

Packaging Details:
- G.W.: 0.3kg
