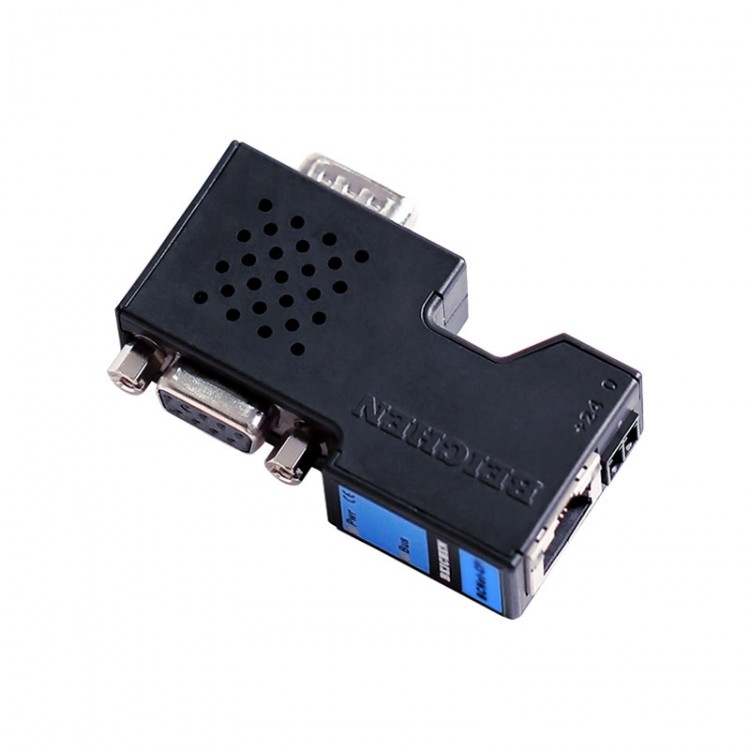

BCNet-CP Ethernet Module PLC Data Acquisition Module for OMRON PLC CP Series Ethernet Communication Processor

BCNet-CP Ethernet Module PLC Data Acquisition Module for OMRON PLC CP Series Ethernet Communication Processor

Description:
- BCNet-CP is an economical Ethernet communication processor designed to meet the increasing demand for factory equipment informatization (equipment network monitoring and production management). It is used for Ethernet data acquisition for Omron CP1L/CP1E/CP1H series PLCs, making it very convenient to build production management systems.
- BCNet-CP adopts a plug and play design, which does not occupy the PLC communication port. The programming software/upper computer software monitors PLC data through Ethernet, while the touch screen can communicate with the PLC through a multiplexing interface. BCNet-CP supports most SCADA software in the field of industrial control, and supports for Omron FINS TCP/UDP Ethernet protocol and Modbus TCP.

Function:
- Plug and play, the module is directly plugged into the DB9 of CP1L/CP1E/CP1H, without the need for external power supply, and the expansion port can be connected to the touch screen at the same time.
- Parameter settings and running diagnostics can be performed on devices through a WEB server or the configuration diagnostic tool BCDevice.
- Automatic identification of PLC model, automatic matching of PLC and HMI serial parameters, without the need for additional configuration.
- Realize Ethernet communication with programming software CX Programmer for Omron.
- Supports FINS/UDP, FINS/TCP Ethernet protocol communication, and supports access to upper computer software (for KingView, for MCGS, for Force Control, for KepWare OPC servers, etc.).
- Integrated Modbus TCP server, supporting FC1, FC2, FC3, FC5, FC15, FC6, FC16, with Modbus data area automatically mapped to PLC data area.
- Supports BCNetTCP/IP transparent protocol communication.
- With FINS communication protocol or transparent transmission, advanced language (such as VB, VC, C #, etc.) programming can be realized, and data communication with PLC for Omron can be realized to facilitate the development of production management system.
- SCADA (upper configuration software) that supports OPC channels communicates with PLC in OPC mode.
- It can simultaneously implement CX Programmer, FINS/TCP, FINS/UDP, BCNetTCP transparent transmission, and ModbusTCP connection methods. Supports the connection of 10 upper computers.
- Support firmware updates on the user side through Ethernet.

Specification:
- Status display: Pwr, Bus
- Programming software: for CX-Programmer
- Configuration software: for MCGS, for KingView, for FORCECON, for IFIX, for INTOUCH, etc.
- OPC software: for KepWare OPC
- Diagnostic and parameter setting tool: IE browser, 192.168.1.178 by default, BCDevice
- Power supply: communication port or external 24VDC
- Voltage type: 24VDC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 90% (non-condensing)
- Installation method: plug and play
- EMC: 2014/30/EU
- Anti-vibration: 4.5mm/30Hz/10Min
- ESD: 6KV
- Size: 65 x 30 x 17mm
- Weight: 60g

Ethernet Interface: IEEE 802.3 compatibility, Link/Active indicator, line sequence adaptation, support for Auto-MDIX
- Interface type: RJ45 female socket
- Transmission speed rate: 10/100Mbps
- Supported protocol: for FINS/TCP, for FINS/UDP, for Modbus TCP, for BCNet TCP, etc
- TCP/UDP connections: 10

PLC Interface: RS232
- Interface type: DSUB 9-Pin Male
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 57.6K, 115.2Kbps
- Supported protocol: FINS

HMI Interface: RS232
- Interface type: DSUB 9-Pin Female
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 57.6K, 115.2Kbps
- Supported protocol: FINS

Package Included:
- 1 x Data Acquisition Module
