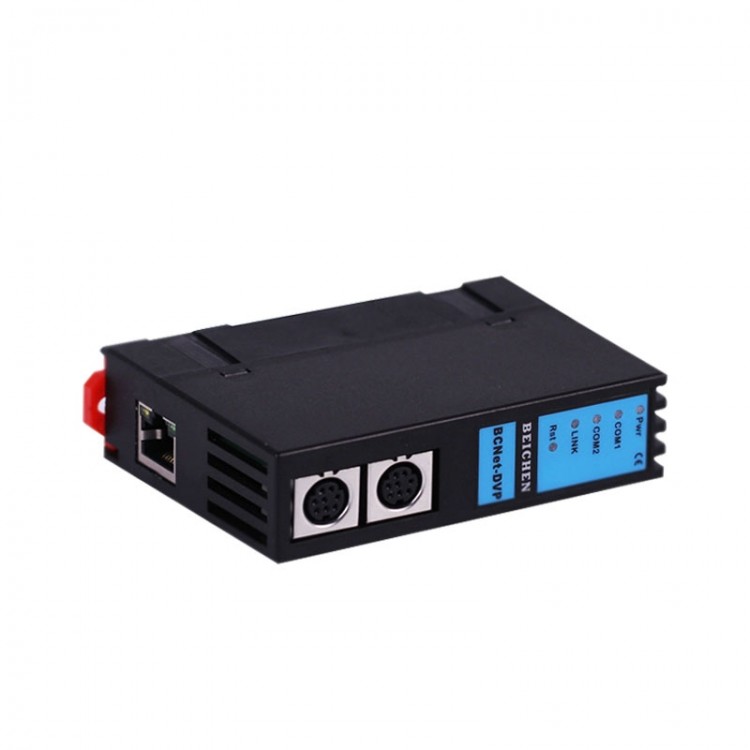

BCNet-DVP Ethernet Module PLC (Round Port) to Modbus TCP Data Acquisition Module for Delta DVP Series

BCNet-DVP Ethernet Module PLC (Round Port) to Modbus TCP Data Acquisition Module for Delta DVP Series

Descriptions:
- BCNet-DVP is an economical Ethernet communication processor, which is designed to meet the increasing needs of factory equipment informatization (equipment Network monitoring and production management). It is used for Ethernet data acquisition for Delta DVP series PLC, which is very convenient to build a production management system.
- BCNet-DVP adopts a modular design and comes with a communication cable. Without occupying the PLC programming port, the programming software/upper computer software monitors PLC data through Ethernet, while the touch screen can communicate with the PLC through the multiplexing interface x 2.

Features:
- Installed on a 35mm rail, the COM1 port is directly connected to the MD8 programming communication round port of the DVP, and an extended COM2 port is used for touch screen communication. BCNet-DVP can directly obtain power from the PLC programming communication port or connect to an external 24VDC power supply.
- Integrated WEB server, device parameters can be set and running diagnostics can be performed through web pages, and login protection passwords can be set to prevent tampering with configuration data.
- Automatically match PLC and HMI serial parameters without additional configuration.
- Realize Ethernet communication with programming software WPLSoft and ISPSoft for Delta, and perform program reading/writing (including writing function in RUN)/comparison through Ethernet, as well as monitoring the operation of programmable controllers.
- Supporting for Delta Ethernet protocol communication, software component data can be read/written to the programmable controller through the upper computer system. After selecting the Delta Ethernet driver through the upper computer software (for KingView, for KepWare OPC server, etc.), it is convenient and fast to access.
- Integrated Modbus TCP server, supporting FC1, FC2, FC3, FC5, FC6, FC16, with Modbus data area corresponding to the software component address for Delta DVP.
- The specific BCNetTCP/IP protocol is directly mapped to the computer serial port, supporting convenient and fast access to upper level software (programming software for FPWIN GR, for KingView, for MCGS, for Force Control, for IFIX, for INTOUCH, for KepWare OPC server, etc.).
- With Modbus TCP communication protocol or port mapping, advanced language (such as VB, VC, C #, etc.) programming can be realized, and data communication with Delta DVP can be realized to facilitate the development of production management system.
- SCADA (upper configuration software) that supports OPC channels communicates with PLC in OPC mode.
- It can achieve WPLSoft, ISPSoft, BCNetTCP transparent transmission, and ModbusTCP connection methods, allowing 6 PCs to simultaneously collect PLC data, and the connection protocol can be used arbitrarily.
- Support firmware updates on the user side through Ethernet.

Specification:
- Status display: Pwr, COM1, COM2, Link
- Programming software: for WPLSoft
- Configuration software: for MCGS, for KingView, for FORCECON, etc.
- OPC software: for KepWare OPC
- Diagnostic and parameter setting tool: IE browser, 192.168.1.178 by default, BCDevice
- Power supply: communication port or external 24VDC
- Voltage type: 24VDC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 90% (non-condensing)
- Installation method: 35mm guide rail
- EMC: 2014/30/EU
- Anti-vibration: 4.5mm/30Hz/10Min
- ESD: 6KV
- Size: 90 x 24 x 65mm
- Weight: 100g

Ethernet Interface: IEEE 802.3 compatibility, Link/Active indicator, line sequence adaptation, support for Auto-MDIX
- Interface type: RJ45 female socket
- Transmission speed rate: 10/100Mbps
- Supported protocol: for BCNet UDP, for BCNet TCP, etc
- TCP connections: 6

X1 Interface (for PLC): RS232
- Interface type: MD6 Communication Female
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 115.2Kbps
- Supported protocol: for Delta PLC communication protocol

X2 Interface (for HMI): RS232
- Interface type: MD6 Communication Female
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 115.2Kbps
- Supported protocol: for Delta PLC communication protocol

Package Included:
- 1 x Data Acquisition Module
