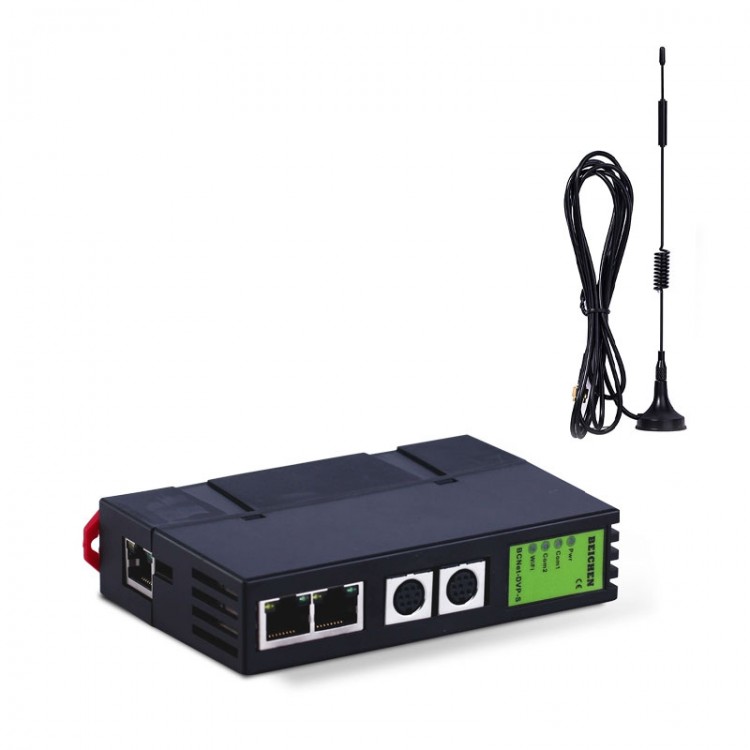

BCNet-DVP-S Ethernet Module (Magnetic Antenna) PLC to Modbus TCP (Wireless) Data Acquisition Module for Delta DVP-series

BCNet-DVP-S Ethernet Module (Magnetic Antenna) PLC to Modbus TCP (Wireless) Data Acquisition Module for Delta DVP-series

Description:
- BCNet-DVP-S is used for Ethernet data acquisition for Delta DVP series PLCs, making it very convenient to build a production management system. The module integrates WiFi function and supports AP mode, STA mode, and AP+STA mode. It comes with a rubber rod or magnetic antenna, making it easy to build a WiFi network. PLC programming and data acquisition can be directly carried out through WiFi.
- BCNet-DVP-S adopts a plug and play design and does not occupy the PLC communication port. That is, the programming software/upper computer software monitors PLC data through Ethernet, while the touch screen can communicate with PLC through a multiplexing interface. It supports the vast majority of SCADA software in the industrial control field and supports for Delta Ethernet protocol and ModbusTCP communication method.

Features:
- Installed on a 35mm rail without the need for external power supply. The COM1 port is connected to the circular port of the PLC, and the COM2 expansion port is used for touch screen communication.
- Parameter settings and running diagnostics can be performed on devices through a WEB server or the configuration diagnostic tool BCDevice.
- Automatic identification of PLC model, automatic matching of PLC and HMI serial parameters, without the need for additional configuration.
- Integrated WiFi function, supporting AP mode, STA mode, and AP+STA mode
- PLC programming data acquisition can be carried out through WiFi.
- Implement Ethernet communication with programming software WPLSoft and ISPSoft for Delta.
- Supports for Delta Ethernet protocol communication, and supports access to upper computer software (for KingView, for MCGS, for Force Control, for KepWare OPC servers, etc.).
- Integrated Modbus TCP server, supporting FC1, FC2, FC3, FC5, FC6, FC16, and automatic mapping of Modbus data area to PLC data area.
- By using ModbusTCP, advanced language (such as VB, VC, C #, etc.) programming can be achieved, enabling data communication with PLC and facilitating the development of production management systems.
- SCADA (upper configuration software) that supports OPC channels communicates with PLC in OPC mode.
- It can simultaneously implement WPLSoft, ISPSoft, and ModbusTCP connection methods, supporting the connection of 32 upper computers.
- Support firmware updates on the user side through Ethernet, once purchase, permanent upgrade.

Specification:
- Status display: Pwr, COM1, COM2, WiFi
- Programming software: for WPLSoft, for ISPSoft
- Configuration software: for WinCC, for KingView, for MCGS, for Force Control, for FameView, for IFIX, for INTOUCH, etc.
- Diagnostic and parameter setting: IE browser, 192.168.1.188 by default, BCDevice
- Power supply: programming port or external 24V DC
- Voltage type: 24V DC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 95% non-condensing
- EMC: 2014/30/EU
- Size (L x W x H): 115 x 27 x 75mm
- Weight: 150g

WiFi interface: 802.11 b/g/n; 2.4G - 2.5G
- Interface type: external high gain antenna
- Transmission power: +26dBm (MAX, 2.4G 802.11b/g/n)
- Receiving sensitivity: -89dBm (802.11b), -74dBm (802.11g), -72dBm (802.11n)
- Wireless type: Station/AP mode
- Safety mechanism: WPA-PSK/WPA2-PSK/WEP
- Supported protocol: for FINS/UDP/for FINS/TCP/for ModbusTCP
- Connection: max. 32

X1 (for PLC): RS232
- Interface type: Round port
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 59.6K, 115.2K
- Supported protocol: for DVP programming port

X2 (for HMI): RS232
- Interface type: Round port
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 59.6K, 115.2K
- Supported protocol: for DVP programming port

Package Included:
- 1 x Module
- 1 x Magnetic Antenna
